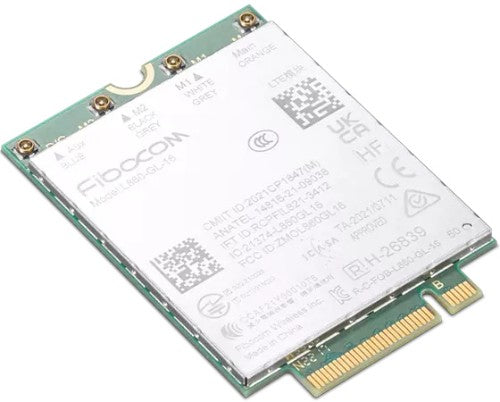

Lenovo 4XC1K20994 network card Internal WWAN 1000 Mbit/s

ThinkPad Fibocom L860-GL-16 CAT16 4G LTE WWAN Module for ThinkPad T14 Gen 3

Description

ThinkPad Fibocom L860 CAT16 4G LTE WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With downlink speed up to 1 Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.

Specifications

Ports & interfaces
Internal	Yes
Interface	WWAN
Host interface	M.2
Connectivity technology	Wireless
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Network
Maximum data transfer rate	1000 Mbit/s
Mobile network generation	4G
Design
Certification	CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.
Internal	Yes
Component for	PC/Laptop
Software
Windows operating systems supported	Windows 10, Windows 11
System requirements
Windows operating systems supported	Windows 10, Windows 11
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	30 mm
Depth	42 mm
Height	2.3 mm
Weight	6.2 g
Package width	53 mm
Package depth	144 mm
Package height	177 mm
Package weight	30 g
Packaging data
Package width	53 mm
Package depth	144 mm
Package height	177 mm
Package weight	30 g
Performance
Windows operating systems supported	Windows 10, Windows 11
Certificates
Certification	CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.
