iiyama 15.6" high-brightness touchscreen with 10 touch points PCAP touch technology for outdoor applications

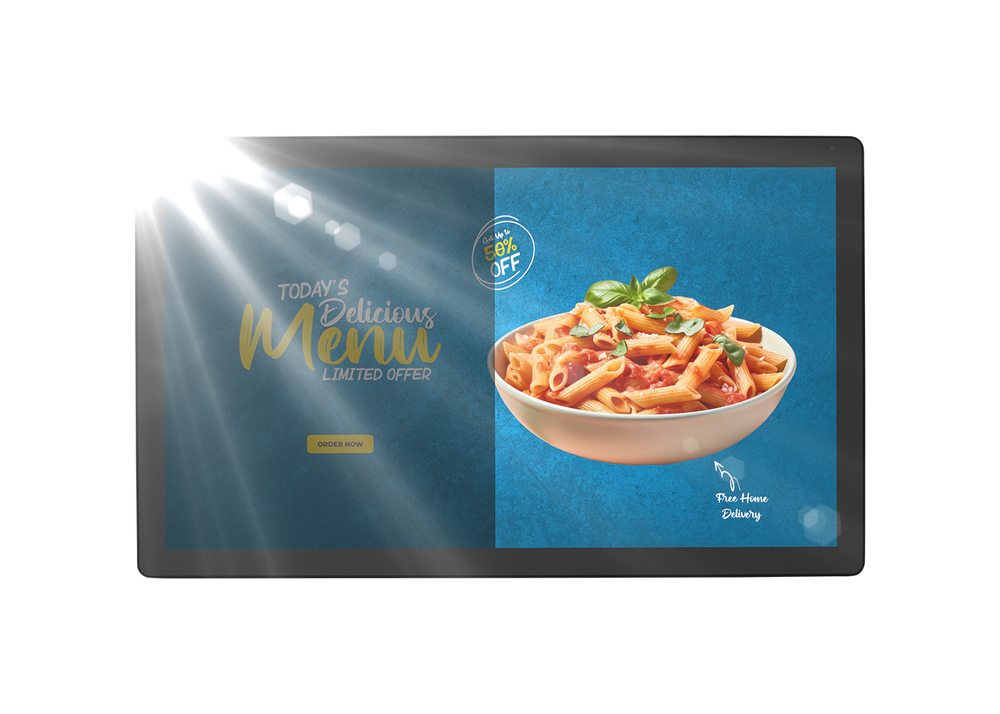

High-brightness
The display offers a brightness of up to 935 cd/m², so that the content displayed on the screen is clearly visible even in very bright environments.

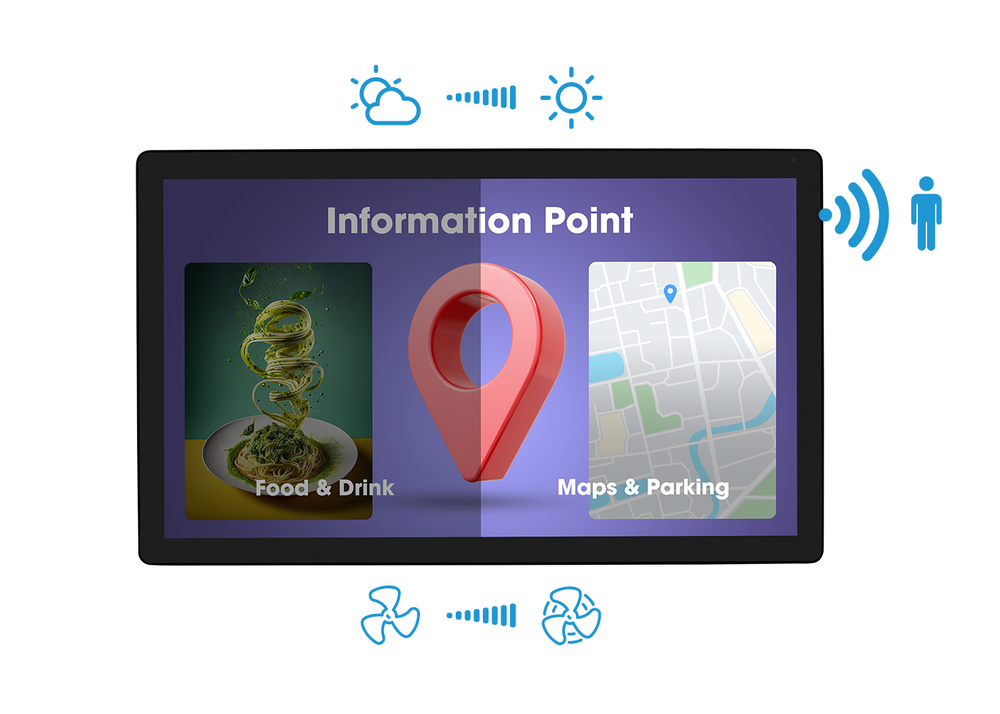

Smart sensors
A proximity sensor turns the screen off after a while when it detects no one in the environment, an ambient light sensor adjusts the screen brightness when ambient light changes, and a temperature sensor linearly controls the fan speed, cooling the monitor when the temperature rises, resulting in energy savings and extends the durability of the product.

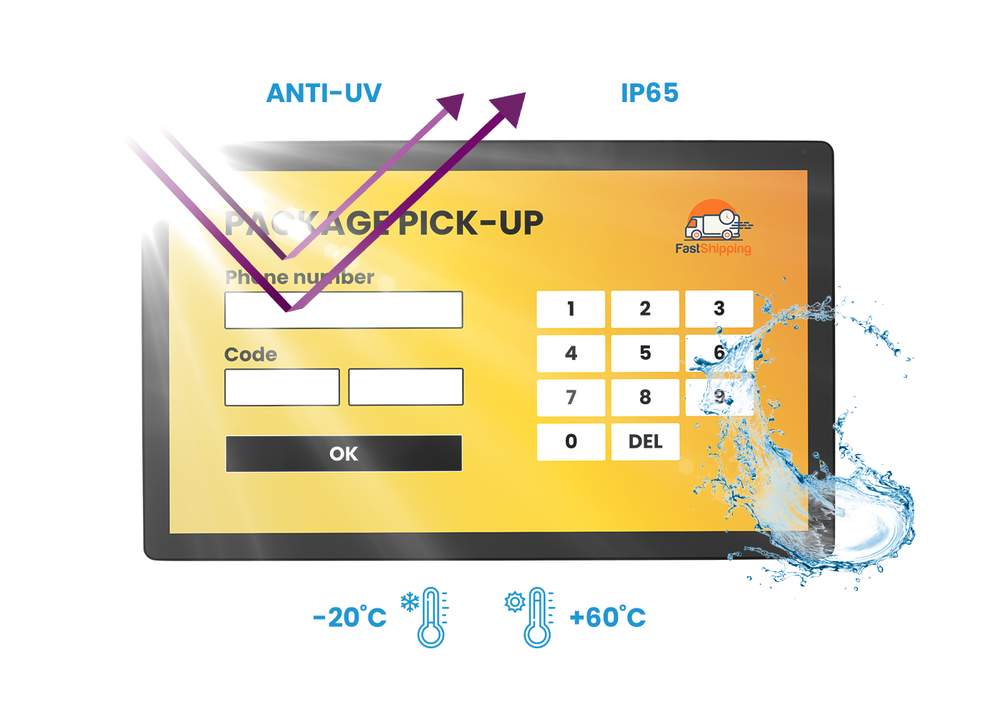

Environmental resistance
The monitor offers comprehensive protection against various ambient conditions. With UV resistance and IP65 protection, it is safeguarded against sunlight and resulting in dust and water resistance from the front. Additionally, it can operate reliably in temperatures ranging from -20˚C to 60˚C, making it capable of withstanding large temperature variations.

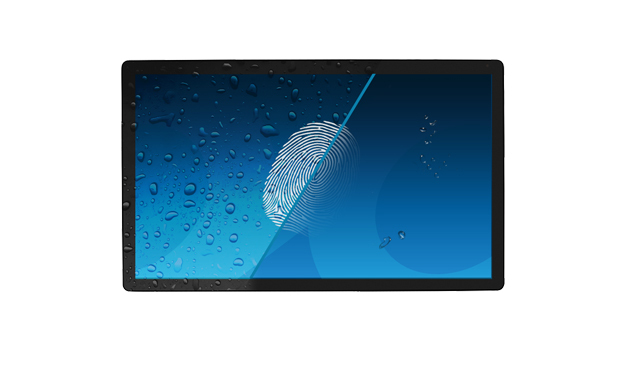

Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

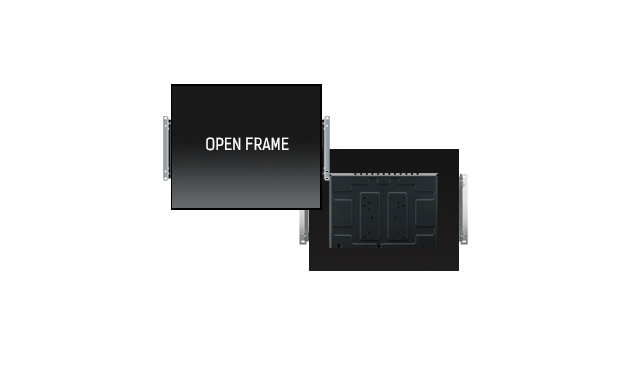

Open frame brackets
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
| Display | |
|---|---|
| Panel type | VA |
| Display number of colours | 16.2 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Active display area (W x H) | 345.2 x 194.6 mm |
| Display technology | LCD |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 1100 cd/m² |
| HD type | Full HD |
| Response time | 25 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.179 x 0.179 mm |
| Display diagonal (metric) | 39.5 cm |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 31.5 - 67.5 kHz |
| Touchscreen technology | Projected capacitive system |
| Surface hardness | 7H |
| Native refresh rate | 60 Hz |
| Glass thickness | 3.5 mm |
| Ports & interfaces | |
| USB port | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI input ports quantity | 1 |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| VESA mounting | Yes |
| Screen shape | Flat |
| Performance | |
| Purpose | Universal |
| International Protection (IP) code | IP65 |
| Mean time between failures (MTBF) | 60000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 7 |
| HDCP | Yes |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 24 W |
| Power consumption (standby) | 1.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Weight & dimensions | |
| Display width | 398.5 mm |
| Display depth | 42 mm |
| Display height | 246 mm |
| Display weight | 3 kg |
| Packaging data | |
|---|---|
| Package width | 485 mm |
| Package depth | 150 mm |
| Package height | 370 mm |
| Package weight | 4.62 kg |
| Remote control included | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Packaging content | |
| Remote control included | Yes |
| Cables included | AC, DisplayPort, HDMI, USB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |
| Technical details | |
| VESA mounting | Yes |
| Panel type | VA |
| Number of simultaneous touchpoints | 10 |
| Other features | |
| Panel type | VA |
| Number of simultaneous touchpoints | 10 |
| Mean time between failures (MTBF) | 60000 h |
| Display technology | LCD |
| Energy efficiency scale | A to G |
