iiyama ProLite 22" Full HD 10pt touchscreen featuring IPS panel technology, touch through glass function and anti fingerprint coating
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Scratch resistance
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

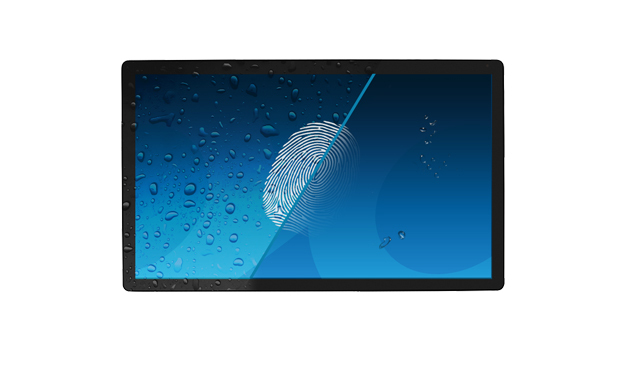

Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
IP65
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 305 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 - 84 kHz |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Display resolution | 1920 x 1080 pixels |
| Response time | 8 ms |
| Display diagonal | 54.6 cm (21.5") |
| Contrast ratio (typical) | 1000:1 |
| Surface hardness | 7H |
| Display brightness (peak) | 350 cd/m² |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Palm rejection | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 6 W |
| Built-in camera | No |
| Design | |
| Product colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 2.5 mm |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| Technical details | |
|---|---|
| HDMI | Yes |
| Product colour | Black |
| Power supply type | External |
| Weight (with stand) | 5.9 kg |
| Surface hardness | 7H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | -5 - 90° |
| Height adjustment | No |
| Cable management | Yes |
| Tilt adjustment | Yes |
| Power | |
| Power supply type | External |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 21 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 16 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1531684 |
| Weight & dimensions | |
| Width (with stand) | 517.5 mm |
| Depth (with stand) | 239.5 mm |
| Height (with stand) | 374 mm |
| Weight (with stand) | 5.9 kg |
| Packaging content | |
| Cables included | Audio, DisplayPort, HDMI, Power, USB |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 1531684 |
| Packaging data | |
| Cables included | Audio, DisplayPort, HDMI, Power, USB |
| Other features | |
| International Protection (IP) code | IP65 |
| HDMI | Yes |
| Surface hardness | 7H |
| Power supply type | External |
| Display brightness (peak) | 350 cd/m² |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
