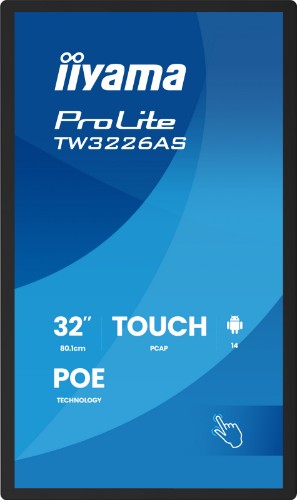

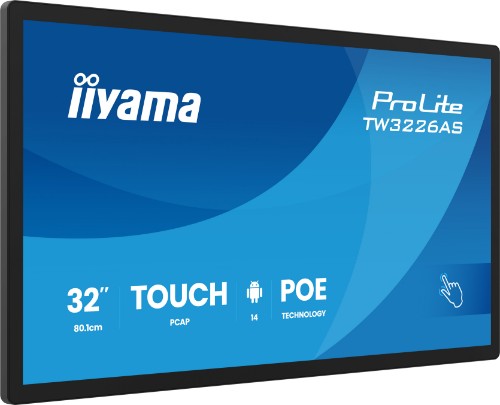

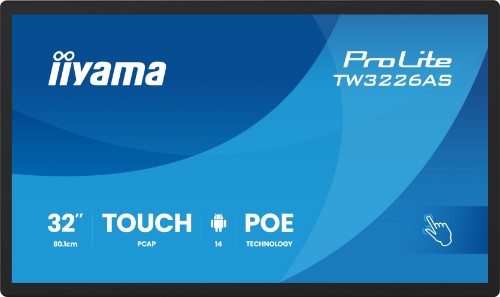

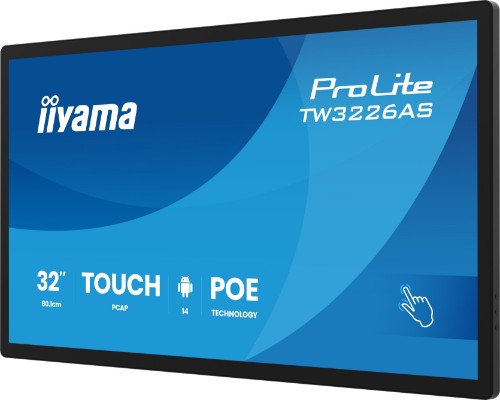

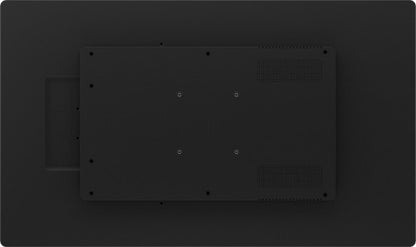

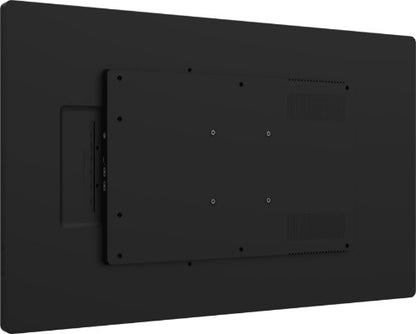

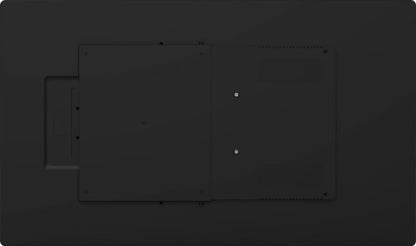

iiyama TW3226AS-B3P Signage Display Interactive flat panel 80 cm (31.5") LED Wi-Fi 500 cd/m² Full HD Black Touchscreen Built-in processor Android 14 24/7

31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage²

Reasons To Buy

Connectivity

The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Description

The ProLite TW3226AS-B3P is a smart and intuitive 31.5" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Specifications

Display
Panel type	VA
Display number of colours	16.7 million colours
Number of simultaneous touchpoints	10
Touchscreen	Yes
Active display area (W x H)	698.4 x 392.8 mm
Display technology	LED
Display diagonal	80 cm (31.5")
Display resolution	1920 x 1080 pixels
Display brightness	500 cd/m²
HD type	Full HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.3637 x 0.3637 mm
Display diagonal (metric)	80.1 cm
Native aspect ratio	16:9
Colour depth	8 bit
Touchscreen technology	Projected capacitive system
Surface hardness	3H
Multi-touch	Yes
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
USB port	Yes
HDMI version	1.4
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Microphone in	Yes
DisplayPorts quantity	0
DC-in jack	Yes
Ethernet LAN	Yes
HDMI ports quantity	1
Ethernet LAN data rates	10,100,1000 Mbit/s
DVI port	No
Ethernet LAN (RJ-45) ports	1
USB version	3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	3
HDMI input ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Audio
Number of built-in speakers	2
RMS rated power	10 W
Built-in speaker(s)	Yes
Design
Product design	Interactive flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Product colour	Black

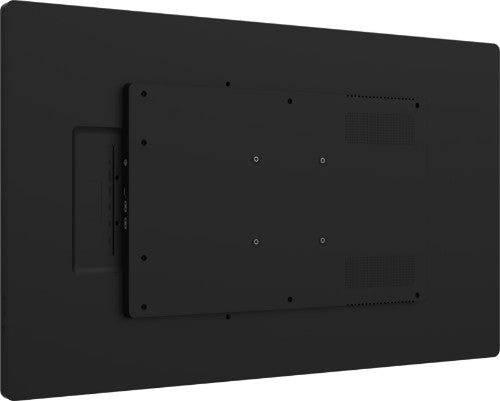

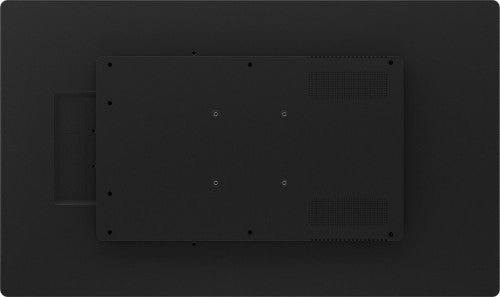

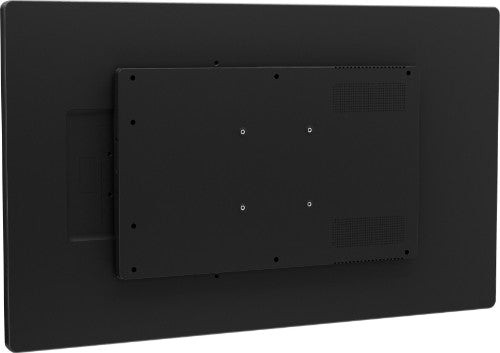

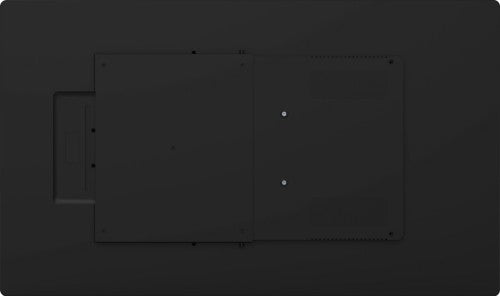

Panel mounting interface	100 x 100 mm
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
HDCP	Yes
Wi-Fi	Yes
Power
Power consumption (off)	0.3 W
Power consumption (typical)	36.34 W
Power consumption (standby)	0.5 W
Computer system
Processor cores	8
Processor family	ARM Rockchip
Processor model	Rockchip RK3576
Operating system installed	Android 14
Internal memory	4 GB
Internal storage capacity	32 GB
Processor manufacturer	ARM
Built-in processor	Yes
On-board graphics card model	Mali-G52 MC3
Processor architecture	ARM Cortex-A53+Cortex-A72
Weight & dimensions
Width (with stand)	735 mm
Height (with stand)	436 mm
Depth (with stand)	35 mm
Weight (with stand)	7.7 kg
Display width	735 mm
Display depth	35 mm
Display height	436 mm
Display weight	7.7 kg
Packaging data
Package width	833 mm
Package depth	833 mm
Package height	508 mm
Package weight	12.4 kg
Quick start guide	Yes
Mounting kit	Yes
Cables included	DC
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Cables included	DC
Power adapter included	Yes
Certificates
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Technical details
VESA mounting	Yes
USB connector type	USB Type-A, USB Type-C
Power supply type	External
Panel type	VA
Cable management	Yes
Number of simultaneous touchpoints	10
Weight (with stand)	7.7 kg
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Thin Client
Processor family	ARM Rockchip
Processor model	Rockchip RK3576
Operating system installed	Android 14
Internal memory	4 GB
Internal storage capacity	32 GB
Other features
USB connector type	USB Type-A, USB Type-C
Power supply type	External
Panel type	VA
Cable management	Yes
Number of simultaneous touchpoints	10
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Width (with stand)	735 mm
Viewable size, vertical	39.3 cm
Viewable size, horizontal	69.8 cm
Microphone in	Yes
Mean time between failures (MTBF)	50000 h
Height (with stand)	436 mm
Display technology	LED
Depth (with stand)	35 mm
DC-in jack	Yes
Bluetooth version	5.3
Bluetooth	Yes
Audio output	Mini jack
Quick start guide	Yes
Weight (with stand)	7.7 kg
