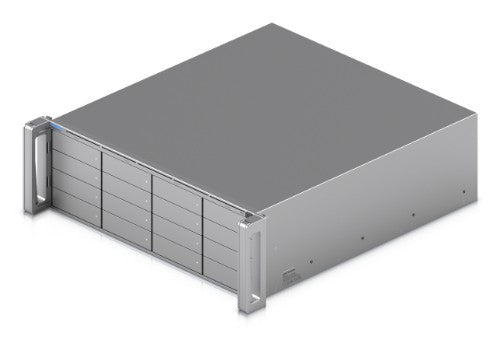

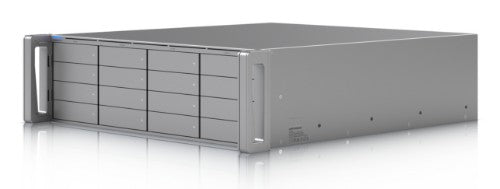

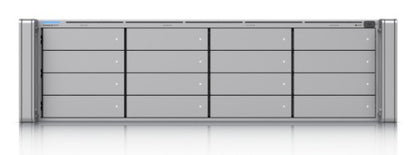

Ubiquiti ENVR-UK network video recorder 3U Grey

16x 2.5/3.5" HDD / SSD support, 2x 10G SFP+, 1x 10 GbE, 3U rack, 8-core ARM at 2.5 GHz, 32 GB, (210) HD (140) 2K (70) 4K, 481.4 x 480 x 132 mm

Description

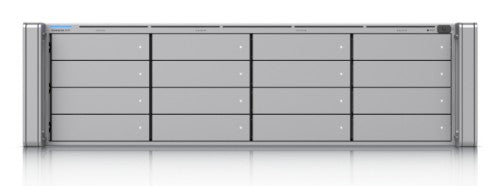

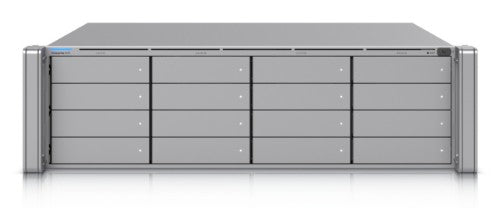

3U NVR with (16) 2.5/3.5” drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.

Specifications

Performance
Built-in processor	Yes
Processor frequency	2.5 GHz
Internal memory	32000 MB
Ethernet LAN data rates	10000 Mbit/s
Processor cores	8
Video recording modes	1080p, 2160p, 4320p
Wireless LAN features
Wi-Fi	No
Hard drive
Number of HDDs supported	16
HDD size	2.5/3.5"
Storage
Number of HDDs supported	16
HDD size	2.5/3.5"
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10000 Mbit/s
Fiber ports quantity	2
Features

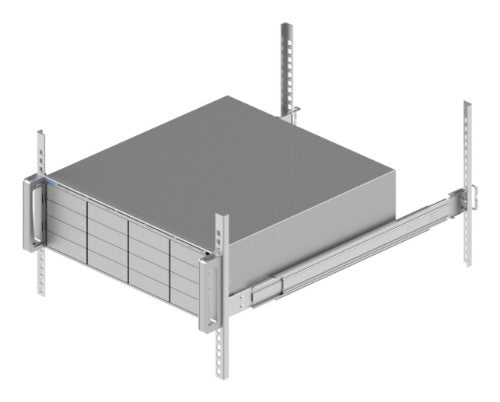

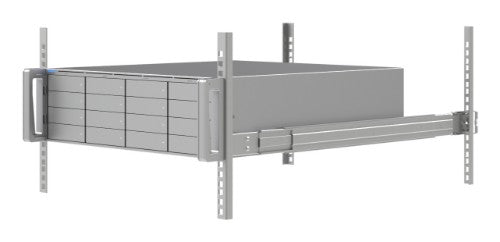

Rack mounting	Yes
LED indicators	Status
Reset button	Yes
Rack capacity	3U
Product colour	Grey
Processor
Built-in processor	Yes
Processor frequency	2.5 GHz
Processor cores	8
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	410 W
Power supply	550 W
Redundant power supply (RPS) support	Yes
Operational conditions
Operating temperature (T-T)	-50 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Weight & dimensions
Width	481.4 mm
Depth	480 mm
Height	132 mm
Weight	16.6 kg
Packaging content
Cables included	Power
