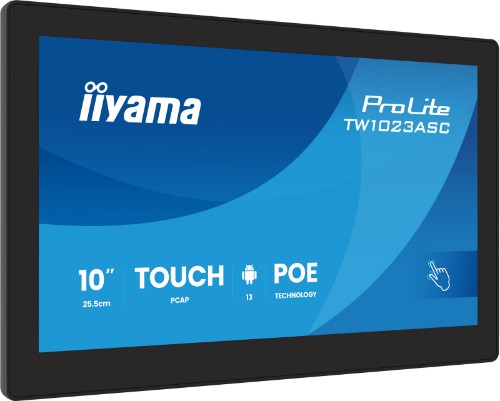

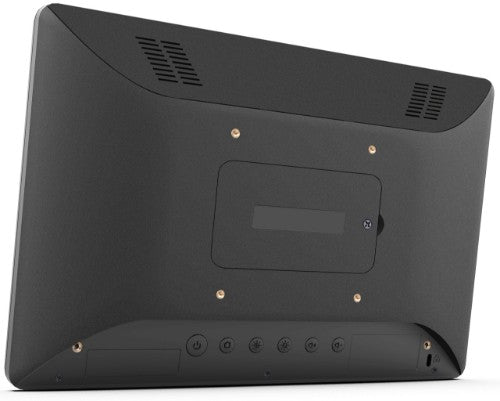

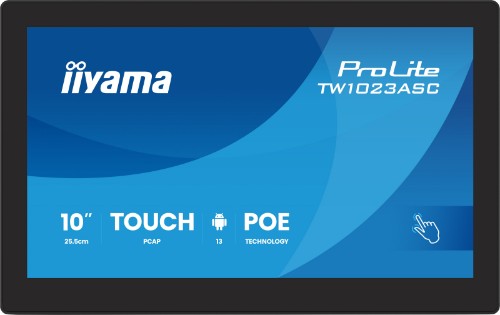

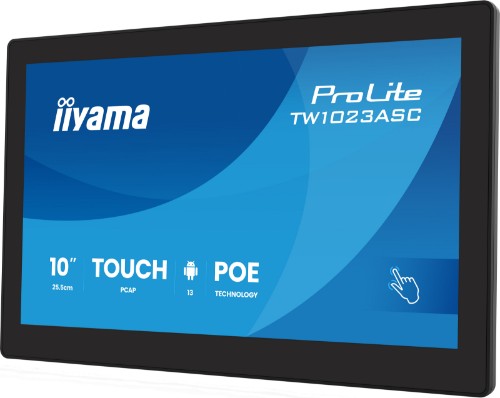

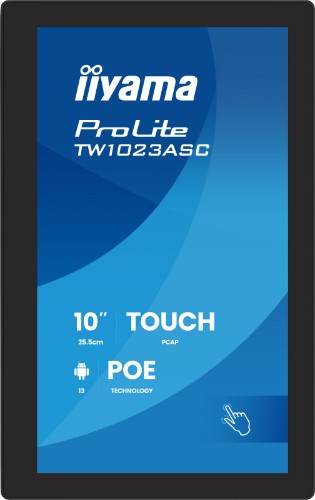

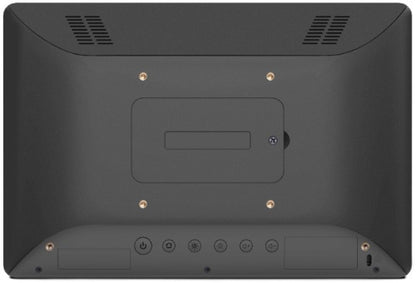

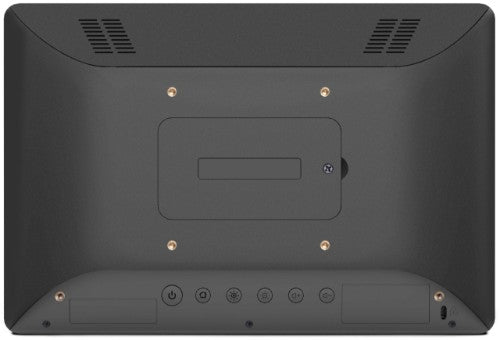

iiyama TW1023ASC-B3P computer monitor 25.6 cm (10.1") 1280 x 800 pixels LCD Touchscreen Black

10.1” PCAP 10pt touchscreen PC with Android, PoE Technology and iiSignage²

Reasons To Buy

Connectivity

The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

Build-in webcam, microphone and speakers

Making the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.

iiSignage²

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Description

The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

Specifications

Audio
Built-in speaker(s)	Yes
RMS rated power	3 W
Performance
Built-in speaker(s)	Yes
RMS rated power	3 W
Megapixel (approx.)	5 MP
Compatible memory cards	SD
Card reader integrated	Yes
Built-in microphone	Yes
Built-in camera	Yes
Operating system installed	Android
Flicker-free technology	Yes
Operating hours (hours/days)	24/7
Display
Display brightness (typical)	450 cd/m²
Display number of colours	16.7 million colours
Native aspect ratio	16:10
Display technology	LCD
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Pixel pitch	0.1692 x 0.1692 mm
Viewable size, horizontal	21.7 cm
Viewable size, vertical	13.5 cm
Display resolution	1280 x 800 pixels
Response time	25 ms
Display diagonal	25.6 cm (10.1")
Contrast ratio (typical)	1000:1
Surface hardness	6H
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	IPS
Colour depth	8 bit
Display diagonal (metric)	25.5 cm
Touchscreen technology	Projected capacitive system
Display brightness	450 cd/m²
Response time measurement type	GTG (Gray to Gray)
Network
Ethernet LAN (RJ-45) ports	1
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	3 W
Megapixel (approx.)	5 MP
Built-in microphone	Yes
Built-in camera	Yes
Design
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Product colour	Black
Front bezel colour	Black
Glass thickness	1.25 mm
Camera
Megapixel (approx.)	5 MP
Built-in camera	Yes

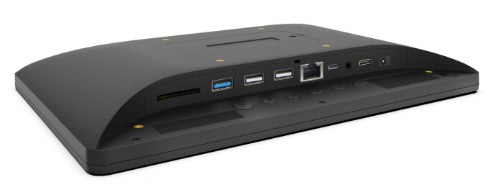

Ports & interfaces
HDMI ports quantity	1
Compatible memory cards	SD
Card reader integrated	Yes
USB 2.0 Type-A ports quantity	2
USB Touch port	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Technical details
RJ-45 ports quantity	1
Compatible memory cards	SD
Card reader integrated	Yes
Built-in microphone	Yes
Product colour	Black
Products per pallet	256 pc(s)
Front bezel colour	Black
Pallet net width	100 cm
Pallet net height	120 cm
Pallet net length	2.15 m
Power supply type	External
Weight (with stand)	800 g
Surface hardness	6H
Touchscreen	Yes
Number of simultaneous touchpoints	10
Ergonomics
Cable management	Yes
Power
Power supply type	External
Power consumption (standby)	0.5 W
Power consumption (typical)	18 W
Power consumption (off)	0.3 W
AC adapter output voltage	12 V
Weight & dimensions
Width (with stand)	255 mm
Depth (with stand)	30.5 mm
Height (with stand)	172 mm
Weight (with stand)	800 g
Package width	398 mm
Package depth	398 mm
Package height	223 mm
Package weight	1.36 kg
Width	255 mm
Weight	800 g
Height	172 mm
Depth	30.5 mm
Packaging data
Package width	398 mm
Package depth	398 mm
Package height	223 mm
Package weight	1.36 kg
Quick start guide	Yes
Cables included	AC
Packaging content
Quick start guide	Yes
Cables included	AC
Thin Client
Operating system installed	Android
Internal memory	32000 MB
Other features
RJ-45 ports quantity	1
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Ethernet LAN (RJ-45) ports	1
Width	255 mm
Weight	800 g
Height	172 mm
Depth	30.5 mm
Bluetooth	Yes
Bluetooth version	5.2
Quick start guide	Yes
Surface hardness	6H
Power supply type	External
Ethernet LAN	Yes
Touchscreen	Yes
Number of simultaneous touchpoints	10
Products per pallet	256 pc(s)
Front bezel colour	Black
Certificates
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Logistics data
Products per pallet	256 pc(s)
Pallet net width	100 cm
Pallet net height	120 cm
Pallet net length	2.15 m
