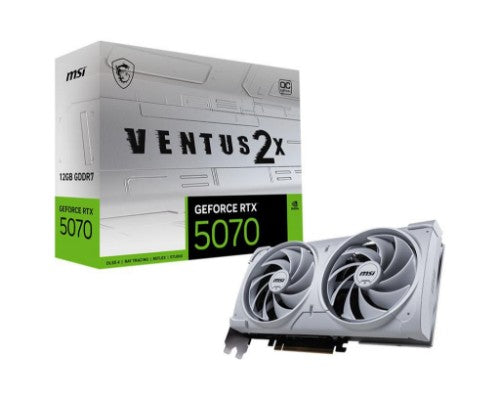

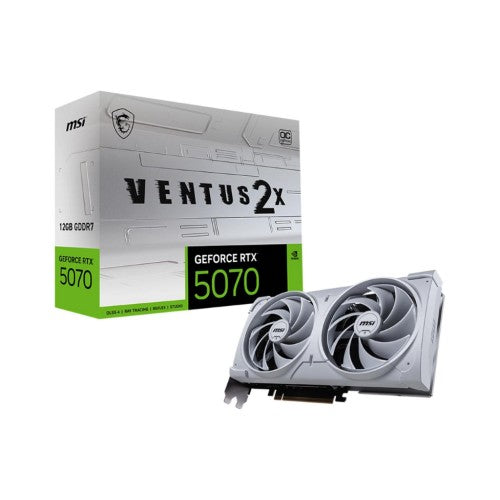

MSI GeForce RTX5070 VENTUS 2X OC White NVIDIA GeForce RTX 5070 12 GB GDDR7

NVIDIA GeForce RTX 5070, 12GB GDDR7, 192 bit, PCI Express x16 5.0, 1 x HDMI (2.1b), 3 x DP (2.1b), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 250W

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Core Clock:
• Extreme Performance: 2557 MHz (MSI Center)
• Boost: 2542 MHz

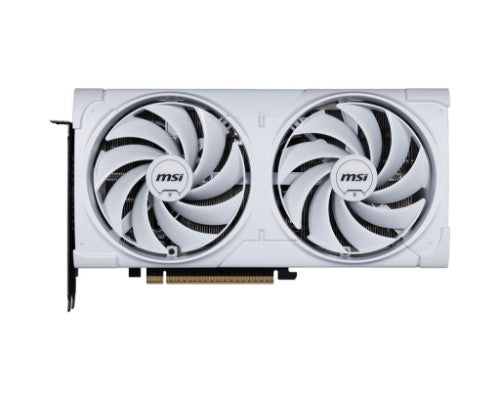

• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
• Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management

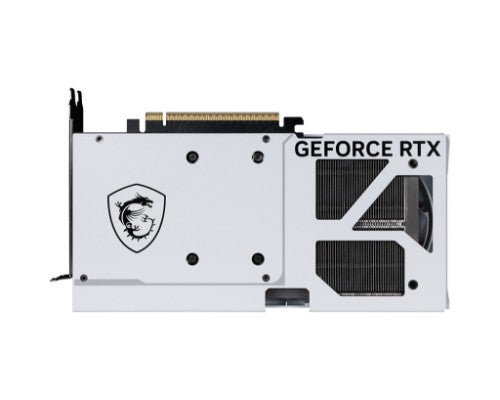

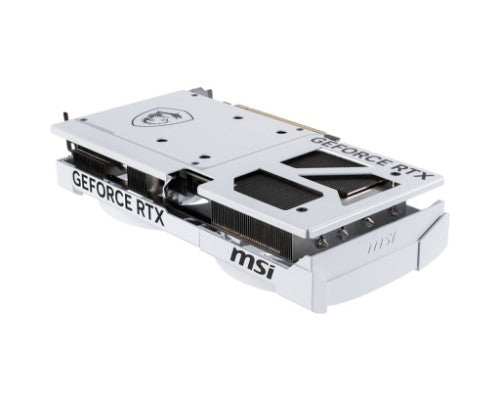

• Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world

Description

TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	2542 MHz
Maximum displays per videocard	4
CUDA cores	6144
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5070
Memory
Discrete graphics card memory	12 GB
Data transfer rate	28 Gbit/s
Memory bus	192 bit
Graphics card memory type	GDDR7

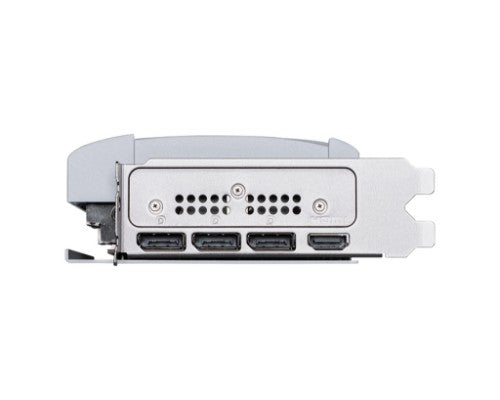

Ports & interfaces
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express 5.0
Thunderbolt 3 ports quantity	0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
Dual Link DVI	No
CUDA cores	6144
Performance
NVIDIA G-SYNC	Yes
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
TV tuner integrated	No
Overclocked (OC) edition	Yes
Design
Number of fans	2 fan(s)
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	White
Cooling technology	MSI TORX FAN 5.0
SFF ready	Yes
Power

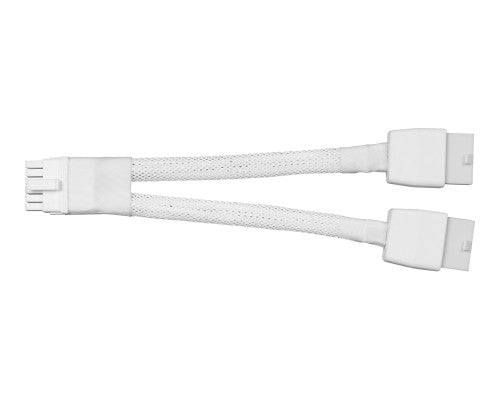

Supplementary power connectors	1x 16-pin
Power consumption (typical)	250 W
Minimum system power supply	650 W
Technical details
Cooling type	Active
Form factor	Full-Height/Half-Length (FH/HL)
Product colour	White
TV tuner integrated	No
System requirements
Minimum system power supply	650 W
Weight & dimensions
Weight	774 g
Height	126 mm
Depth	50 mm
Length	236 mm
Packaging data
Package type	Box
Package weight	1.15 kg
Logistics data
Products per shipping (inner) case	1 pc(s)
