MSI Cubi NUC AI+ 2MG Intel Core Ultra 9 288V, Desktop PC, NUC, SFF, Mini Computer, HTPC, (32GB RAM, 1TB Storage, Windows 11 PRO NextGen Premium), Intel Arc Graphics/Embedded DDR5/Dual ThunderBolt 4/HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA

MSI Cubi NUC AI+ 2MG Intel Core Ultra 9 288V, Desktop PC, NUC, SFF, Mini Computer, HTPC, (32GB RAM, 1TB Storage, Windows 11 PRO NextGen Premium), Intel Arc Graphics/Embedded DDR5/Dual ThunderBolt 4/HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA

Key Features

• Intel Intel® CoreTM Ultra 7 processor 258V CPU, 32GB LPDDR5X , 1TB M.2 SSD, USB 10Gbps Type A Ports, Thunderbolt 4 & HDMI 2.1, Wi-Fi 6E, Bluetooth 5.3 - Black, Windows 11 PRO NextGen Premium
• INTEL MINI PC - The CubiNUC AI+ 2MG is a palm-sized mini PC featuring an Intel Intel® CoreTM Ultra 7 processor 258V CPU, 32GB LPDDR5X, 1TB M.2 SSD Storage - Compact Case, Windows 11 Pro NextGen Premium software pre-installed
• 32GB RAM, Arc™ Graphics (Integrated) - The system includes 32GB of pre-installed LPDDR5X-8533 MT/s memory; Thunderbolt 4 and HDMI 2.1 support 3 monitor setups with 4K display - ideal for watching movies

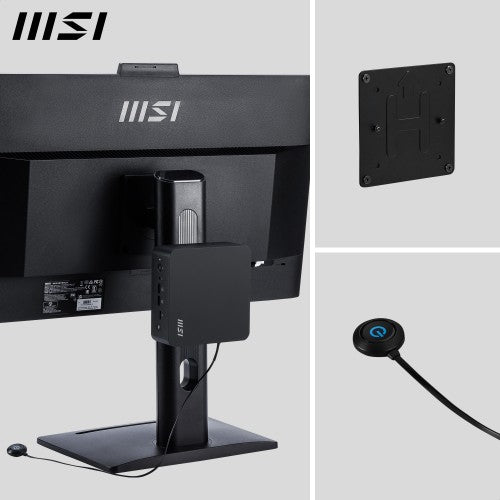

• 1TB of pre-installed M.2 SSD storage ensures faster loading speeds (supports 1x M.2 2280 SSD; A 75 x 75 & 100 x 100mm VESA mountable design

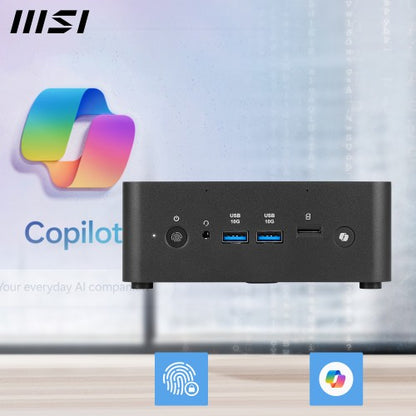

• The front I/O panel features 2x USB 10Gbps Type A. The compact 0.826L SFF case incorporates an MSI Frozr AI PRO thermal design & low-noise fan. Included a Power Button with Fingerprint Security Design
• WI-FI 6E AX211 & BLUETOOTH 5.3 - Network connectivity includes an Intel WI-FI 6E AX211 , and dual 2.5G ethernet LAN ports; dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords

Description

"Cubi NUC AI+ 2MG: The Sustainable Coiplot+ PC

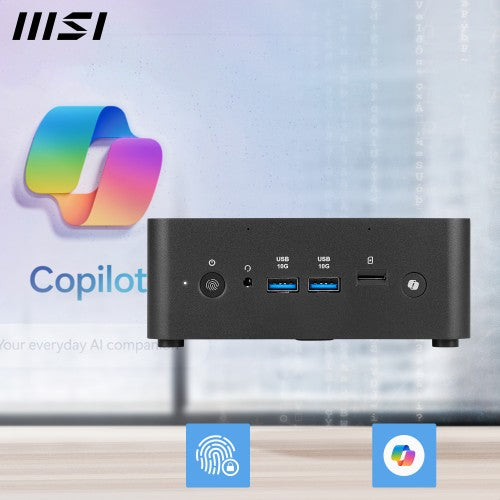

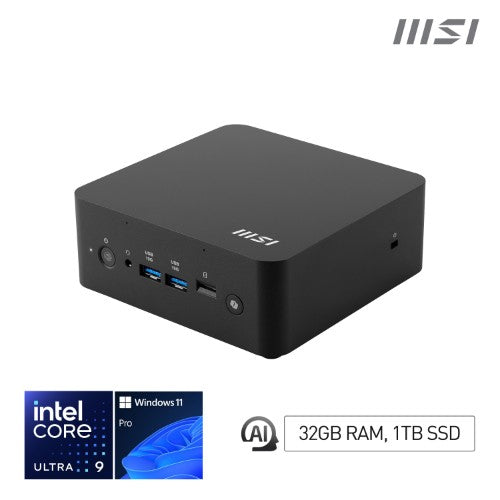

The MSI Cubi NUC AI+ 2MG i9 288V FS 32GB 1TB W11PP is a small yet powerful Copilot+ PC with an incredibly compact 0.826L design suitable for commercial office work or use as a home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).

The Cubi NUC AI+ 2MG i9 288V FS 32GB 1TB W11PP configuration is a complete system equipped with an Intel's Intel® CoreTM Ultra 9 processor 288V, 32 GB of LPDDR5X-8533 MT/s memory, 1TB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro NextGen Premium software pre-installed.

Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

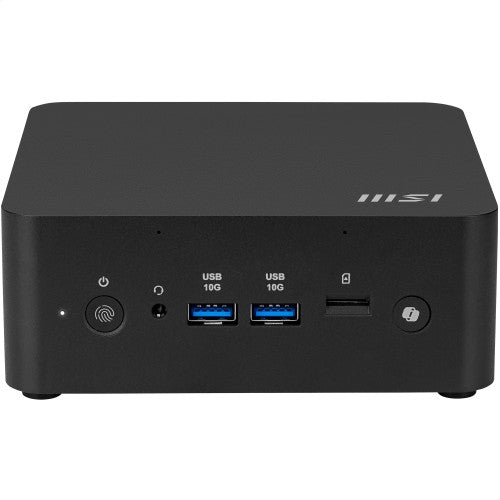

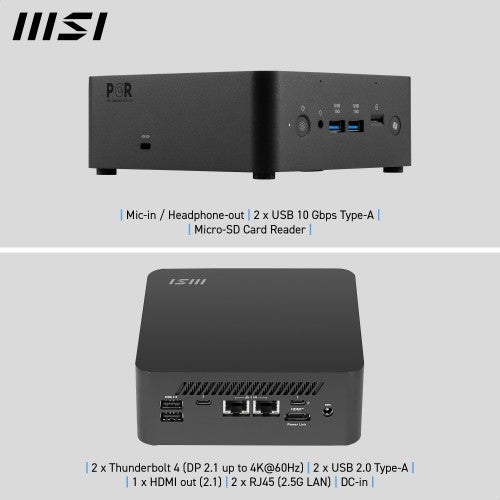

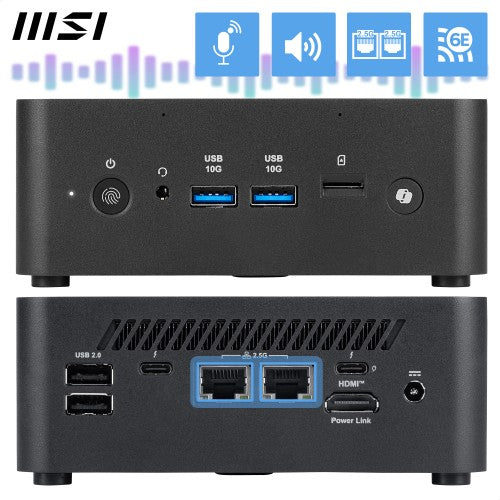

Front I/O connectivity includes 2x USB 10Gbps Type A, 1x Mic-in / Headphone-out combo, 1x Micro-SD Card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 1x HDMI 2.1. The side I/O features 1x Kensington Lock and 1x External Power Switch Pin Header."

Specifications

Processor
Processor cache type	Smart Cache
Processor cache	12 MB
Processor frequency	3.3 GHz
Processor model	288V
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	5.1 GHz
Processor threads	8
Processor cores	8
Processor family	Intel Core Ultra 9
Performance cores	4
Efficient cores	4
Performance-core base frequency	3.3 GHz
Efficient-core base frequency	3.3 GHz
Processor base power	28 W
Maximum turbo power	64 W
Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core Max Turbo Frequency	5.1 GHz
Low Power Efficient-cores	0
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Maximum frequency NPU	1.4 GHz
Sparsity support	Yes
Windows Studio effects support	Yes
AI datatype support on NPU	FP16, Int8
AI software frameworks supported by NPU	ONNX RT, OpenVINO
Total processor performance up to	34 TOPs
NPU performance up to	10 TOPs
GPU performance up to	24 TOPs
Copilot+ PC	No
Memory
Non-ECC	Yes
ECC	No
Memory layout (slots x size)	1 x 32 GB
Internal memory	32 GB
Maximum internal memory	96 GB
Memory slots	1x SO-DIMM
Internal memory type	LPDDR5-SDRAM
Memory clock speed	7467 MHz
Memory channels	Dual-channel
Buffered memory type	Clocked unregistered (unbuffered)
Memory data transfer rate	7467 MT/s
Storage
Intel® Optane™ Memory module installed	No
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	1
Number of HDDs installed	0
Optical drive type	No
SSD interface	PCI Express
SSD capacity	1 TB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	1 TB
SSD memory type	TLC
SSD form factor	M.2
Total HDDs capacity	0 GB
Total SSDs capacity	1 TB
NVMe	Yes
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics card	No
Graphics card HDMI ports quantity	0
Graphics card DisplayPorts quantity	0
Graphics card DVI ports quantity	0
Graphics card DVI-I ports quantity	0
Graphics card DVI-D ports quantity	0
Graphics card VGA (D-Sub) ports quantity	0
NVIDIA G-SYNC	No
NVIDIA GameWorks VR	No
CUDA	No
Graphics card Mini DisplayPort ports quantity	0
On-board graphics card family	Intel Arc Graphics
AMD FreeSync	Yes
On-board graphics card	Yes
On-board graphics card model	Intel Arc Graphics
Number of discrete graphics cards	0
Graphics card Open GL support	Yes
Graphics card USB Type-C ports quantity	0
On-board graphics card cores	8
On-board graphics card 6K support	Yes
On-board GPU manufacturer	Intel
On-board graphics card 8K support	Yes
Number of external displays supported	4
Ray tracing acceleration	Yes
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.3
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Wake-on-LAN ready	Yes
Ethernet LAN data rates	2500 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Bluetooth Low Energy (BLE)	Yes
Miracast	Yes
WLAN controller model	Intel Wi-Fi 6E AX211
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
LAN controller	Intel I226-V
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Total number of SATA connectors	2
Number of SATA III connectors	0
HDMI version	2.1
VGA (D-Sub) ports quantity	0
USB 2.0 ports quantity	2
Serial ports quantity	0
S/PDIF out port	No
PS/2 ports quantity	0
Parallel ports quantity	0
Mini DisplayPorts quantity	0
Microphone in	Yes
Line-out	No
Line-in	No
Firewire (IEEE 1394) ports	0
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
eSATA ports quantity	0
DVI port	No
DisplayPorts quantity	0
DC-in jack	No
PowerShare	Yes
Number of USB ports with PowerShare support	1
USB 3.2 Gen 2x2 Type-C ports quantity	0
USB Type-C DisplayPort Alternate Mode	Yes
USB4 Gen 2x2 ports quantity	0
USB4 Gen 3x2 ports quantity	0
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
Fiber NIC port (Flex I/O)	No
Intel® Thunderbolt 5	No
Thunderbolt 5 ports quantity	0
Number of rear USB ports	2
Number of rear audio ports	1
Number of front USB ports	2
Number of front audio ports	1
Number of side USB ports	0
Expansion slots
PCI Express x1 (Gen 1.x) slots	0
PCI Express x1 (Gen 2.x) slots	0
PCI Express x1 (Gen 3.x) slots	1
PCI Express x4 (Gen 1.x) slots	0
PCI Express x4 (Gen 2.x) slots	0
PCI Express x4 (Gen 3.x) slots	0
PCI Express x8 (Gen 1.x) slots	0
PCI Express x8 (Gen 2.x) slots	0
PCI Express x8 (Gen 3.x) slots	0
PCI Express x16 (Gen 1.x) slots	0
PCI Express x16 (Gen 2.x) slots	0
PCI Express x16 (Gen 3.x) slots	1
PCI slots	0
PCI Express x8 slots	0
PCI Express x4 slots	0
PCI Express x16 slots	1
PCI Express x1 slots	1
Mini PCI Express slots	0
PCI Express x1 (Gen 4.x) slots	0
PCI Express x4 (Gen 4.x) slots	0
PCI Express x16 (Gen 4.x) slots	0
PCI Express x8 (Gen 4.x) slots	0
PCI Express x16 (Gen 5.x) slots	0
Technical details
Water cooling system	No
Number of 2.5" bays	1
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Motherboard form factor	NUC
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Number of 5.25" bays	0
Number of 3.5" bays	1
Cable lock slot	No
Audio output channels	2.0 channels
Refurbished	No
Locale	English
Warranty period	3 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC)
Statement of conformance & platform certificate included	Yes
Not classified as hazardous under GHS	Yes
Design
VESA mounting	Yes
Housing material	Metal, Plastic
Water cooling system	No
Number of 2.5" bays	1
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Number of 5.25" bays	0
Number of 3.5" bays	1
Cable lock slot	No
Viewing window	No
Refurbished	No
Colour name	Black
Country of origin	China
RGB memory lighting	No
Introduction year	2025
Introduction month	June
Copilot key	No
Certified refurbished	No
Performance
BIOS type	UEFI
Audio chip	Realtek ALC256
Virtual Reality (VR) ready	No
Market positioning	Business
Number of speakers	2
Password protection	Yes
Password protection type	BIOS
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Motherboard form factor	NUC
Audio system	High Definition Audio
Built-in speaker(s)	Yes
Audio output channels	2.0 channels
Powered by	MSI
Trusted Platform Module (TPM) version	2.0
Fingerprint reader	No
Software
Operating system language	English
Operating system architecture	64-bit
Drivers included	Yes
Operating system installed	Windows 11 Pro
Windows 11 free upgrade	No
Apple Intelligence	No
Copilot+ PC	No
Processor special features
Low Power Efficient-cores	0
Video encode engine	Yes
Video decode engine	Yes
Power
Power supply input frequency	50 - 60 Hz
Power supply input voltage	100 - 240 V
Power supply	120 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC)
Ergonomics
VESA mounting	Yes
Weight & dimensions
Package width	205 mm
Package depth	220 mm
Package height	94 mm

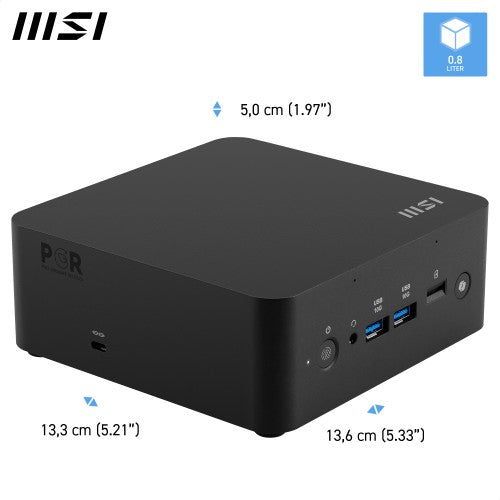

Width	135.6 mm
Depth	132.5 mm
Height	50.1 mm
Package weight	1.38 kg
Weight	630 g
Packaging data
Package width	205 mm
Package depth	220 mm
Package height	94 mm
Package weight	1.38 kg
Packaging content
VESA mount included	Yes
Cables included	AC
Manual	Yes
Numeric keypad	No
Mouse included	No
Drivers included	Yes
Display included	No
Keyboard backlit	No
Keyboard included	No
Screws included	Yes
Display
Display included	No
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Features
Country of origin	China
Other features
VESA mounting	Yes
Number of speakers	2
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
TV tuner integrated	No
Built-in speaker(s)	Yes
Built-in microphone	No
Refurbished	No
Country of origin	China
Locale	English
Warranty period	3 year(s)
