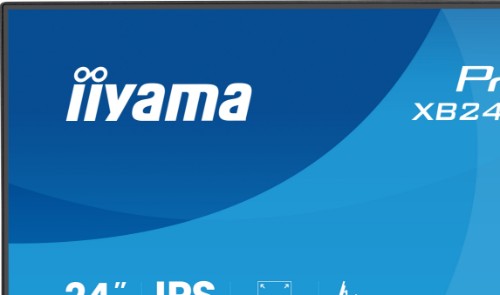

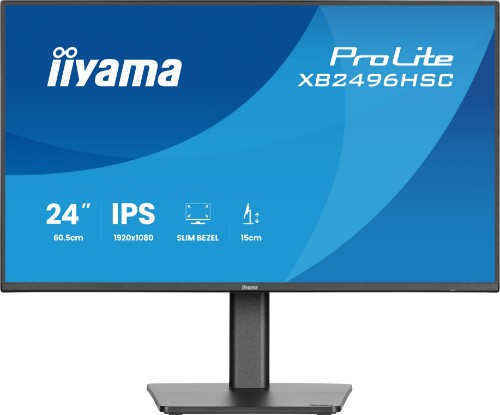

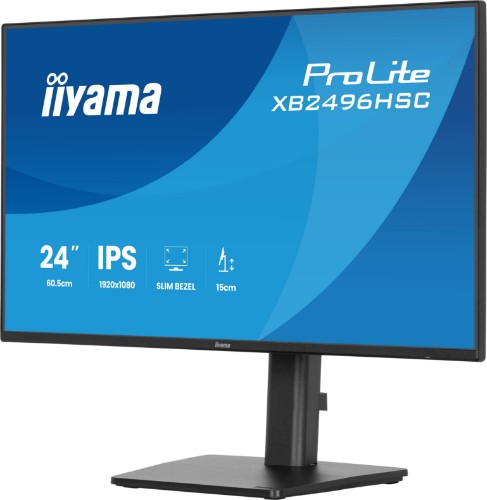

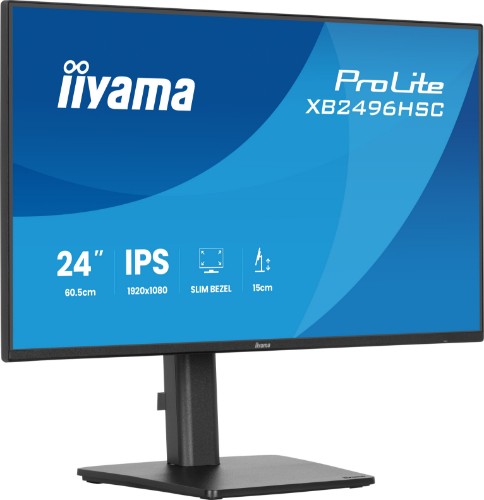

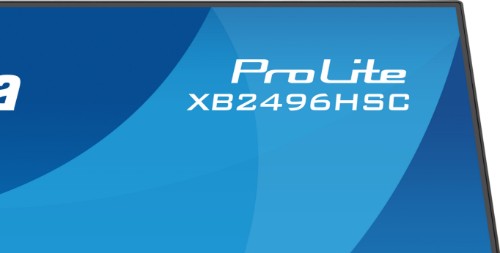

iiyama ProLite XB2496HSC-B1 computer monitor 61 cm (24") 1920 x 1080 pixels Full HD LED Black

24” Full HD USB-C monitor with IPS panel, 144Hz and height adjustment

Reasons To Buy

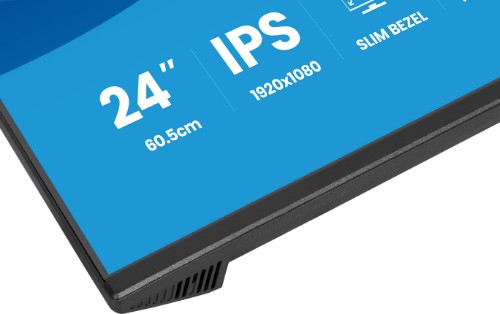

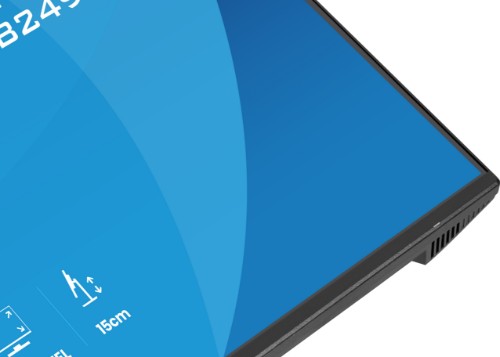

Sleek design, seamless viewing

With edges so thin they’re barely there, your screens blend together, creating a sleek, distraction‑free workspace that’s as comfortable as it is stylish.

Multi-screen setup for a panoramic workspace

Connect multiple ultra-slim bezel monitors to create a panoramic workspace, keep your apps in view, streamline multitasking, and boost productivity.

Work faster and feel the difference with 144Hz

Scrolling through documents, switching windows or reviewing animations feels smoother than ever. The ultra-fast 144Hz refresh rate reduces blur and stutter, letting your eyes follow motion naturally. Whether you're deep in spreadsheets or reviewing video content, your workflow stays sharp, fluid and easy on the eyes.

Reveal hidden details with deeper contrast

With a native contrast ratio of 1500:1, this monitor brings out subtle shadow nuances and fine tonal transitions. You see more image information at a glance, making it easier to make precise creative choices during editing and colour grading. Dark areas stay crisp and distinct without blending into one another.

Connect with ease, work in comfort

With USB-C delivering up to 65W, your laptop stays charged while you work, using just a single, clutter-free connection. The reversible design means you never have to fumble or check which way to plug it in. It’s a simple, reliable solution that keeps your focus on what matters most.

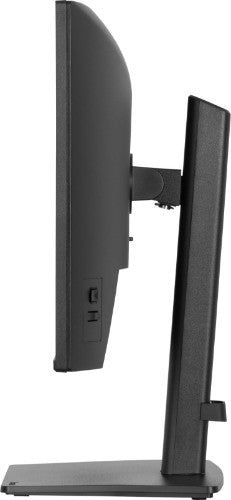

Adjustable stand for optimal comfort

Find your perfect screen position easily and maintain a healthy, comfortable posture all day long. Thanks to its fully adjustable stand, you can effortlessly adapt the monitor to your needs. Raise or lower the height, swivel left or right, or tilt the screen to reduce glare and find the optimal viewing angle. Whether you're working, designing, or attending long video calls, this flexibility helps reduce neck and back strain, improving both comfort and productivity throughout your day.

Description

Compact, high-performance and built for modern professionals, the ProLite XB2496HSC-B1 is a 24” Full HD monitor ideal for home offices, hybrid work and content consumption. Its IPS panel offers vibrant colour reproduction and wide viewing angles, making it well-suited for presentations, web-based tasks, video calls and day-to-day business applications. A smooth 144Hz refresh rate and high 1500:1 contrast ratio ensure sharp visuals and fluid motion for everyday tasks and entertainment. The USB-C connection delivers up to 65W of power reducing desk clutter and simplifying setup. Flicker-free technology and a blue light reducer enhance visual comfort during extended use. Framed by ultra-slim bezels on all four sides, the XB2496HSC-B1 integrates seamlessly into multi-monitor setups. Its ergonomic stand offers height adjustment, tilt, swivel and pivot for a perfectly aligned workspace. Balanced and versatile, this monitor is designed to keep you productive and comfortable throughout the day.

Specifications

Display
HDCP	Yes
Display brightness (typical)	300 cd/m²
Screen shape	Flat
Display number of colours	16.7 million colours
Native aspect ratio	16:9
DDC/CI	Yes
Maximum refresh rate	144 Hz
sRGB coverage (typical)	96%
Display surface	Matt
HD type	Full HD
Display technology	LED
Contrast ratio (dynamic)	80000000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.275 x 0.275 mm
Horizontal scan range	30 - 170 kHz
Vertical scan range	48 - 145 Hz
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.7 cm
Display resolution	1920 x 1080 pixels
Response time	3 ms
Display diagonal	61 cm (24")
Contrast ratio (typical)	1500:1
NTSC coverage (typical)	72%
Touchscreen	No
Panel type	IPS
Display diagonal (metric)	60.5 cm
Colour gamut standard	NTSC, sRGB
Response time measurement type	GTG (Gray to Gray)
Audio
Built-in speaker(s)	Yes
RMS rated power	4 W
Performance
Built-in speaker(s)	Yes
RMS rated power	4 W
Low Blue Light technology	Yes
Flicker-free technology	Yes
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	11
On Screen Display (OSD) languages	Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian, Ukrainian
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	4 W
Power
Power cable length	1.8 m
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	13 W
Power consumption (off)	0.3 W
Input current	2 A
Energy efficiency scale	A to G
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	13 kWh
Design
Market positioning	Business
Product colour	Black
Frameless design	Yes
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of upstream ports	1
USB Type-A downstream ports quantity	1
USB Type-C downstream ports quantity	1
Headphone out	Yes
HDMI ports quantity	1
HDCP	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDMI	Yes
HDMI version	1.4
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
USB Type-C DisplayPort Alternate Mode	Yes
Number of USB Type-C upstream ports quantity	1
Number of downstream ports	2
Technical details
Height (without stand)	374.5 mm
Cable lock slot	Yes
HDMI	Yes
Product colour	Black
Compliance certificates	EAC, TÜV mark, UKCA, PSE, VCCI, REACH, RoHS, WEEE, CE
Power supply type	Internal
Weight (with stand)	5.3 kg
Touchscreen	No
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-60 - 60°
Tilt angle range	-5 - 23°
Pivot	Yes
On Screen Display (OSD)	Yes
Pivot angle	-90 - 90°
Number of OSD languages	11
On Screen Display (OSD) languages	Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian, Ukrainian
Height adjustment	Yes
Cable lock slot type	Kensington
Cable management	Yes
Tilt adjustment	Yes
Adjustable height (max)	15 cm
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Height (without stand)	374.5 mm
Width (with stand)	540 mm
Depth (with stand)	221.5 mm
Height (with stand)	494.5 mm
Weight (with stand)	5.3 kg
Package width	650 mm
Package depth	650 mm
Package height	420 mm
Package weight	6.7 kg
Packaging data
Package width	650 mm
Package depth	650 mm
Package height	420 mm
Package weight	6.7 kg
Package type	Box
Power cable length	1.8 m
Quick start guide	Yes
Cables included	AC, USB Type-C
Packaging content
Power cable length	1.8 m
Quick start guide	Yes
Cables included	AC, USB Type-C
Other features
Compliance certificates	EAC, TÜV mark, UKCA, PSE, VCCI, REACH, RoHS, WEEE, CE
Height (without stand)	374.5 mm
Quick start guide	Yes
HDMI	Yes
USB Power Delivery up to	65 W
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	Internal
Power cable length	1.8 m
Touchscreen	No
USB Power Delivery (USB PD)	Yes
Package type	Box
