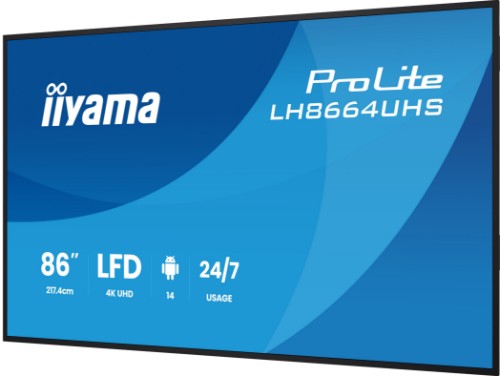

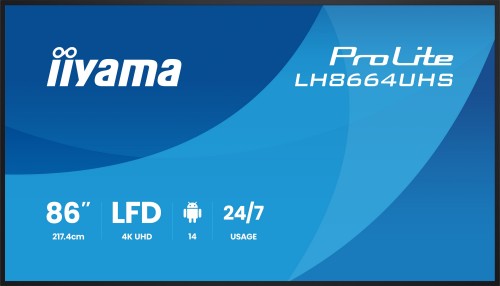

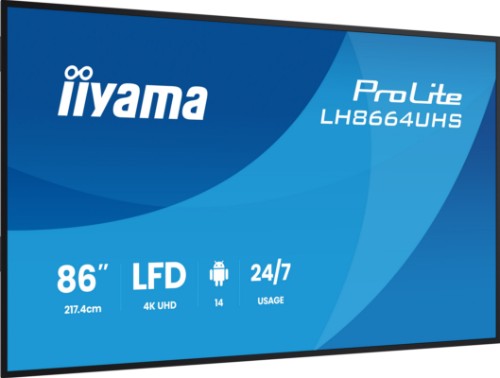

iiyama LH8664UHS-B3AG Signage Display Digital signage flat panel 2.17 m (85.6") Wi-Fi 450 cd/m² 4K Ultra HD Black Built-in processor Android 24/7

86" 4K UHD professional digital signage display with advanced control and connectivity options

Reasons To Buy

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

iiControl - Device Management System

iiControl provides organizations with a convenient and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office estate environment and makes device management ultra convenient. iiControl DMS is committed to maintaining compliance with GDPR.

Signal FailOver

FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Description

Elevate your visual communication with the LH8664UHS-B3AG and unlock the new possibilities for your business. This 450cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With Android 14 OS, iiSignage² (CMS), iiControl (DMS) and iiShare , plus EShare (Wireless Presentation) features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B3AG will undoubtedly captivate your audience and leave a lasting impression.

Specifications

Display
Panel type	IPS
Display number of colours	1.07 billion colours
Active display area (W x H)	1895 x 1066 mm
Display diagonal	2.17 m (85.6")
Display resolution	3840 x 2160 pixels
Display brightness	450 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.493 x 0.493 mm
Display diagonal (metric)	217.4 cm
Native aspect ratio	16:9
Horizontal scan range	28 - 160 kHz
Anti-glare screen	Yes
Native refresh rate	60 Hz
Haze rate	25%
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
Remote (IR) output	1
Remote (IR) input	1
DisplayPort version	1.2
USB port	Yes
HDMI version	2.0
RS-232C	Yes
Infrared data port	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN	Yes
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	2
HDMI input ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	15 W
USB Type-C DisplayPort Alternate Mode	Yes
Audio Return Channel (ARC)	Yes
Audio
Number of built-in speakers	2
RMS rated power	32 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Indoor

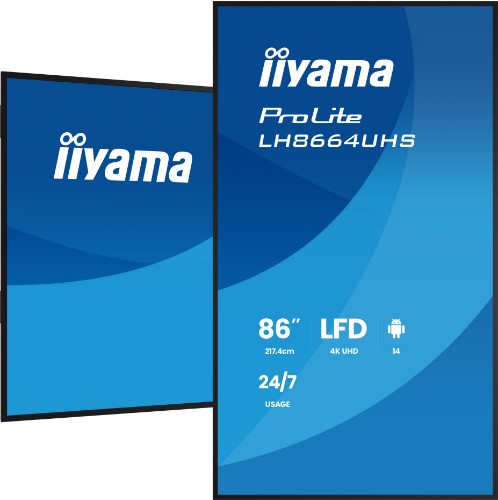

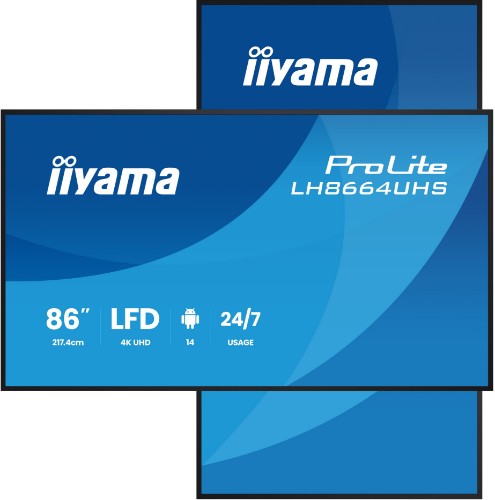

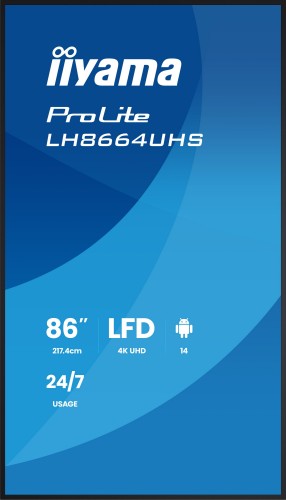

Orientation	Horizontal/Vertical
Bezel width (top)	2.2 cm
Bezel width (side)	2.15 cm
Bezel width (bottom)	2.2 cm
Product colour	Black
Panel mounting interface	800 x 600 mm
VESA mounting	Yes
Anti-glare screen	Yes
Screen shape	Flat
Bezel colour	Black
Performance
Purpose	Corporate
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
HDCP	Yes
HDCP version	1.4/2.2
Wi-Fi	Yes
Power
Power consumption (off)	0.3 W
Power consumption (typical)	277 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Computer system
Processor cores	4
Processor model	MT9679
Operating system installed	Android
Internal memory	4 GB
Internal storage capacity	32 GB
Processor manufacturer	MediaTek
Built-in processor	Yes
On-board graphics card model	Mali-G52 MC1
Processor architecture	ARM Cortex-A73
Operating system version	14
Weight & dimensions
Display width	1937.8 mm
Display depth	79.6 mm
Display height	1108.8 mm
Display weight	47.9 kg
Packaging data
Package width	2095 mm
Package depth	2095 mm
Package height	1215 mm
Package weight	62.2 kg
Quick start guide	Yes
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, HDMI, RS-232
Packaging content
Quick start guide	Yes
Remote control included	Yes
Mounting kit	Yes
Cables included	AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Technical details
VESA mounting	Yes
USB connector type	USB Type-A, USB Type-C
Power supply type	Internal
Panel type	IPS
DisplayPort version	1.2
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN	Yes
Thin Client
Processor model	MT9679
Operating system installed	Android
Internal memory	4 GB
Internal storage capacity	32 GB
Other features
USB connector type	USB Type-A, USB Type-C
Power supply type	Internal
Panel type	IPS
DisplayPort version	1.2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Mean time between failures (MTBF)	50000 h
Bezel width (top)	2.2 cm
Bezel width (side)	2.15 cm
Bezel width (bottom)	2.2 cm
Quick start guide	Yes
Energy efficiency scale	A to G
