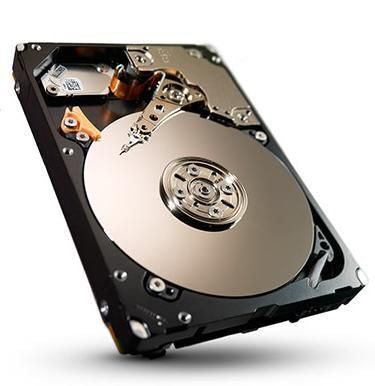

Seagate Savvio 300GB SAS internal hard drive 10000 RPM 64 MB 2.5"

Savvio 300GB SAS, 6 Gb/s, 10000rpm, 64MB, 2.5", 211g

Description

The Seagate® Savvio® 10K.5 hard drive enables OEMs, system builders and data centers to:
- Improve storage efficiency;
- Ease capacity, interface and form factor transitions;
- Ensure data integrity and protection throughout the storage process even if the device is lost or stolen.

Key Features and Benefits
- Delivers the highest-capacity in a 2.5-inch, 10K-RPM hard drive (up to 900GB) to manage more data without increasing the number of drives;
- First SFF drive to offer four capacity points on a single platform;
- Industry-leading 0.44% AFR for field-proven reliability;
- Improves performance for faster data storage and access;
- Reduces power consumption and enables green IT initiatives;
- PowerChoice™ technology for T10-compliant power management enables IT organizations to tailor systems for performance and power consumption;
- Reduces system design, qualification and inventory costs for OEMs;
- Enables data centers to better manage hard drive transitions;
- Protection Information protects against inadvertent data change;
- Optional Self-Encrypting Drive (SED) models help companies be compliant with corporate and federal data security mandates and protect data-at-rest throughout the life of the storage device should the device be lost, stolen, and/or retired;
- Seagate Unified Storage architecture reduces system complexity and operating costs by converging disparate interfaces, form factors and security standards.

Specifications

Hard drive
Data transfer rate	6 Gbit/s
Component for	Server/workstation
Write seek time	3.8 ms
Read seek time	3.4 ms
Average latency	3 ms
HDD number of heads	2
Mean time between failures (MTBF)	2000000 h
HDD speed	10000 RPM
HDD size	2.5"
HDD capacity	300 GB
Data transmission
Sustained data rate	168 MB/s
Sound emission
Acoustic pressure emissions	3 dB
Features
Component for	Server/workstation
Interface	SAS
Write seek time	3.8 ms
Read seek time	3.4 ms
Average latency	3 ms
HDD number of heads	2
Mean time between failures (MTBF)	2000000 h
HDD speed	10000 RPM
HDD size	2.5"
HDD capacity	300 GB
Storage drive buffer size	64 MB
Power
Power consumption (idle)	3.48 W
Start-up current	0.85 A
Operating voltage	5 V
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.5 G
Operating shock	40 G
Non-operating vibration	3 G
Non-operating shock	400 G
Technical details
Harmonized System (HS) code	84717050
Interface	SAS
Mean time between failures (MTBF)	2000000 h
Internal	Yes
Weight & dimensions
Width	70.1 mm
Weight	211 g
Height	15 mm
Depth	100.5 mm
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	SAS
Data transfer rate	6 Gbit/s
Sustained data rate	168 MB/s
Internal	Yes
Acoustic pressure emissions	3 dB
