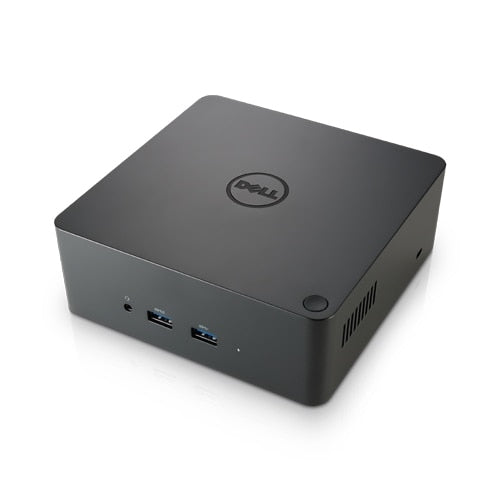

DELL TB16 Wired Thunderbolt 3 Black

Thunderbolt Dock TB16 - 240W, 2x USB 2.0, 3x USB 3.0, Gigabit Ethernet, 1x Thunderbolt 3

Description

One dock. One cable. Ultimate Performance.

The Dell Thunderbolt™ Dock TB16 -240W with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.

Small footprint and big flexibility

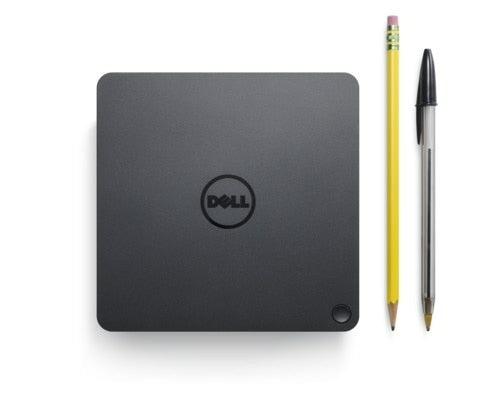

The Dell Thunderbolt™ Dock TB16 -240W is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.

One source for power

The Dell Thunderbolt™ Dock TB16 -240W can provide power to your laptop (at 19.5V) and can also provide up to 60W of power to attached Thunderbolt™ 3 peripherals. Dell Precision, Latitude or XPS notebooks with a Thunderbolt™ 3 port can receive up to 130W of power.

Connections and Features:

- Supports 3 displays
- Two USB 2.0 ports
- Three USB 3.0 ports
- Thunderbolt 3 (USB-C) port
- Speaker output (rear)

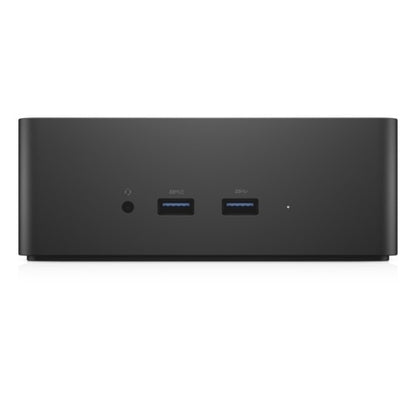

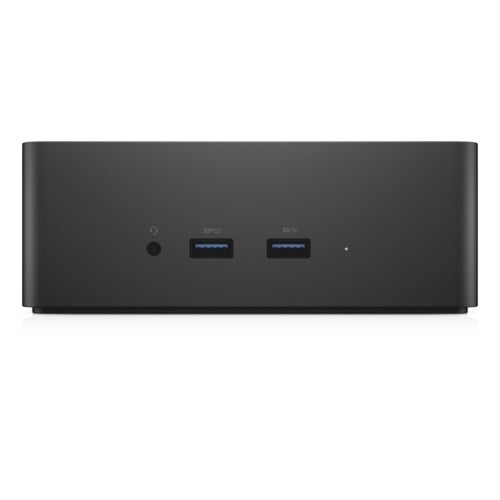

- Combo audio (front)
- Gigabit Ethernet
- Kensington Lock Slot
- 7.4 mm DC-IN Power Input

What's in the Box

Dell Thunderbolt™ Dock TB16

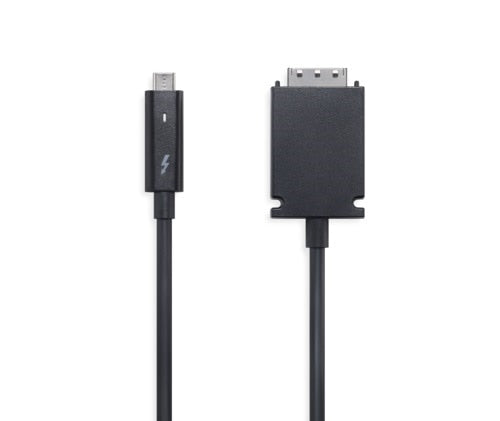

USB Type-C Thunderbolt™ Cable
240W AC Adapter

Specifications

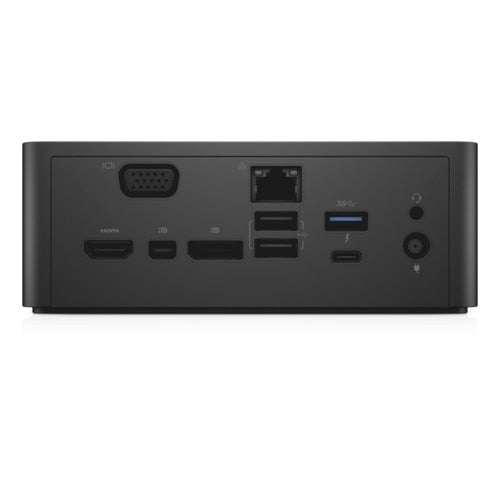

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Thunderbolt 3 ports quantity	1
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 3
USB 2.0 ports quantity	2
USB connector type	USB Type-A
Line-out	Yes
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Mini DisplayPorts quantity	1
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Card reader integrated	No
Brand compatibility	Dell
Cable lock slot	Yes
LED indicators	Yes
Cable lock slot type	Kensington
Technical details
Product colour	Black
Brand compatibility	Dell
Cable lock slot	Yes
Harmonized System (HS) code	84733020
Storage
Card reader integrated	No
Power
Power source type	AC
Power consumption (max)	240 W
Output voltage	19.5 V
Software
Windows operating systems supported	Yes
Indication
LED indicators	Yes
Weight & dimensions
Width	145 mm
Depth	145 mm
Height	51 mm
Design
Windows operating systems supported	Yes
Product colour	Black
Cable lock slot	Yes
LED indicators	Yes
Cable lock slot type	Kensington
Packaging content
AC adapter included	Yes
Logistics data
Harmonized System (HS) code	84733020
