DELL TB16 Wired Thunderbolt 3 Black

240W, 2 x USB 2.0, 3 x USB 3.0, 1 x Thunderbolt 3 (USB-C), 1 x LAN

Description

One dock. One cable. Ultimate Performance.

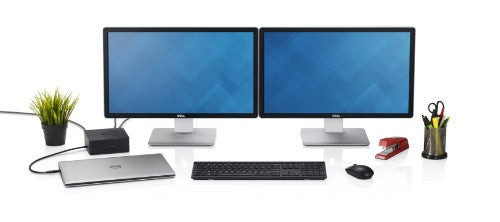

The Dell Business Thunderbolt Dock - TB16 with 240W Adapter with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.

Small footprint and big flexibility

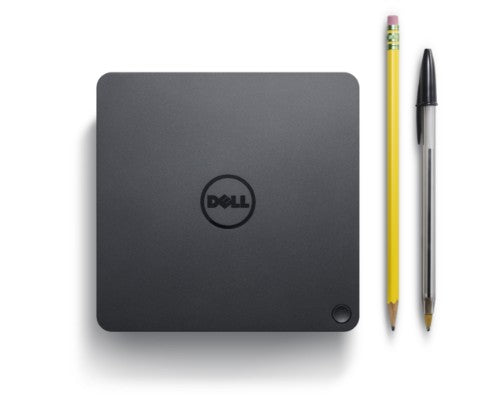

The Dell Business Thunderbolt Dock - TB16 with 240W Adapter is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.

One source for power
The Dell Business Thunderbolt Dock - TB16 with 240W Adapter can provide power to your laptop (at 19.5V) and can also provide up to 60W of power to attached Thunderbolt™ 3 peripherals. Dell Precision, Latitude or XPS notebooks with a Thunderbolt™ 3 port can receive up to 130W of power.

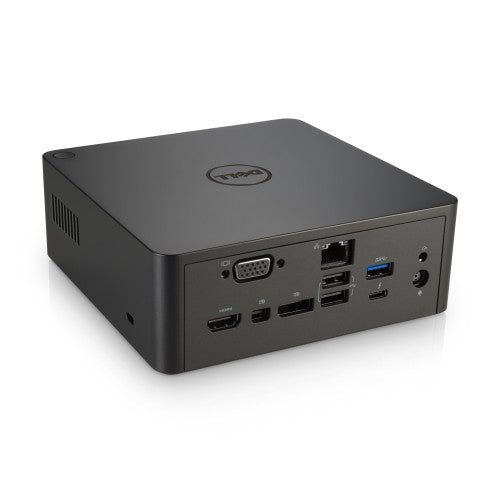

Connections and Features:
- Supports 3 displays
- Two USB 2.0 ports
- Three USB 3.0 ports
- Thunderbolt 3 (USB-C) port
- Speaker output (rear)
- Combo audio (front)
- Gigabit Ethernet
- Kensington Lock Slot
- 7.4 mm DC-IN Power Input

What's in the Box
Dell Business Thunderbolt Dock TB16
USB Type-C Thunderbolt™ Cable
240W AC Adapter

Compatibility
This product is compatible with the following systems:

XPS 13 (9350)
XPS 15 (9550)
XPS 12 (9250)
Precision 15 7000 Series (7510)
Precision 17 7000 Series (7710)
Precision 15 3000 Series (3510)
Precision 15 5000 Series (5510)
XPS 13 (9360)
XPS 9560
Precision 5520
Precision 3520

Specifications

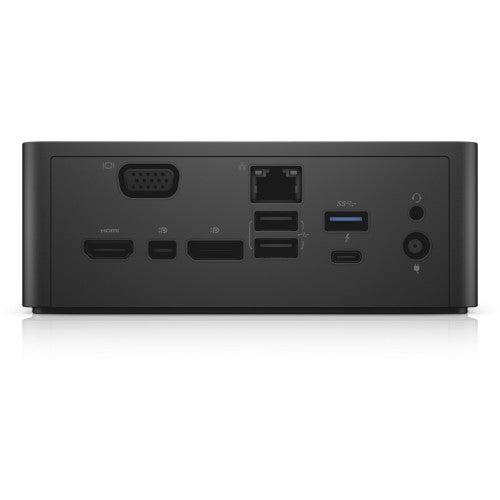

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Thunderbolt 3 ports quantity	1
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 3
USB 2.0 ports quantity	2
USB connector type	USB Type-A, USB Type-C
Line-out	Yes
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4a
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Mini DisplayPorts quantity	1
Microphone in	No
Headphone outputs	0
DC-in jack	Yes
Connectivity technology	Wired
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Product colour	Black
Card reader integrated	No
Brand compatibility	Dell
Compatibility	XPS 13 (9350) XPS 15 (9550) XPS 12 (9250) Precision 15 7000 Series (7510) Precision 17 7000 Series (7710) Precision 15 3000 Series (3510) Precision 15 5000 Series (5510) XPS 13 (9360) XPS 9560 Precision 5520 Precision 3520
Cable lock slot	Yes
LED indicators	Yes
Cable lock slot type	Kensington
Technical details
Product colour	Black
Brand compatibility	Dell
Compatibility	XPS 13 (9350) XPS 15 (9550) XPS 12 (9250) Precision 15 7000 Series (7510) Precision 17 7000 Series (7710) Precision 15 3000 Series (3510) Precision 15 5000 Series (5510) XPS 13 (9360) XPS 9560 Precision 5520 Precision 3520
Cable lock slot	Yes
Harmonized System (HS) code	84733020
Storage
Card reader integrated	No
Power
Power source type	AC
Input current	3.5 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	5.8 W
Output voltage	19.5 V
Output current	12.31 A
Power supply	240 W
Software
Windows operating systems supported	Yes
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	720 g
Depth	145 mm
Height	52 mm
Design
Windows operating systems supported	Yes
Product colour	Black
Cable lock slot	Yes
LED indicators	Yes
Cable lock slot type	Kensington
Packaging content
Manual	Yes
Cables included	USB Type-C
AC adapter included	Yes
Logistics data
Harmonized System (HS) code	84733020
