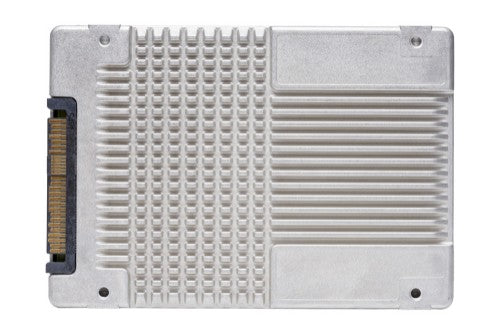

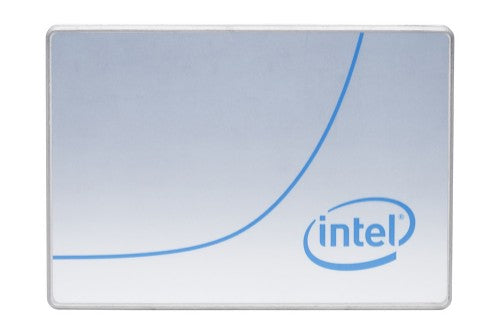

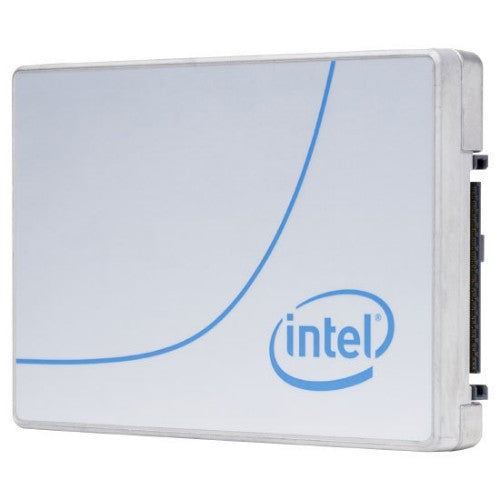

Intel DC P4500 2.5" 2 TB PCI Express 3.0 3D TLC
Intel DC P4500 2.5" 2 TB PCI Express 3.0 3D TLC
Regular price
£714.59 GBP
Regular price
Sale price
£714.59 GBP
Taxes included.
SSD DC P4500 Series 2.0TB, 2.5in PCIe 3.1 x4, 3D1, TLC
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Description
Enhanced Power Loss Data ProtectionEnhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Specifications
| Hard drive | |
|---|---|
| PCI Express interface data lanes | x4 |
| SSD capacity | 2 TB |
| Memory type | 3D TLC |
| Performance | |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel High Endurance Technology (HET) | No |
| Interface | PCI Express 3.0 |
| Component for | PC/Laptop |
| SSD ARK ID | 99031 |
| NAND flash type | TLC (Triple Level Cell) |
| End-to-End Data Protection | Yes |
| PCI Express interface data lanes | x4 |
| SSD capacity | 2 TB |
| Memory type | 3D TLC |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Random write (100% span) | 41000 IOPS |
| Random read (100% span) | 515000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 29 µs |
| Read latency | 80 µs |
| Enhanced Power Loss Data Protection technology | Yes |
| Data transmission | |
| Random write (100% span) | 41000 IOPS |
| Random read (100% span) | 515000 IOPS |
| Write latency | 29 µs |
| Read latency | 80 µs |
| Endurance | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Design | |
| Component for | PC/Laptop |
| Product colour | Silver |
| SSD form factor | 2.5" |
| Market segment | Server |
| Product family | Data center SSD |
| Product series | Intel® SSD DC P4500 Series |
| Product codename | Cliffdale |
| Features | |
| Interface | PCI Express 3.0 |
| Component for | PC/Laptop |
| SSD ARK ID | 99031 |
| NAND flash type | TLC (Triple Level Cell) |
| End-to-End Data Protection | Yes |
| PCI Express interface data lanes | x4 |
| SSD capacity | 2 TB |
| Memory type | 3D TLC |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Random write (100% span) | 41000 IOPS |
| Random read (100% span) | 515000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 29 µs |
| Read latency | 80 µs |
| Enhanced Power Loss Data Protection technology | Yes |
| SSD form factor | 2.5" |
| Market segment | Server |
| Harmonized System (HS) code | 84717070 |
| Temperature monitoring and logging | Yes |
| Brand-specific features | |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel High Endurance Technology (HET) | No |
| Intel Smart Response Technology version | 0.00 |
| Product family | Data center SSD |
| Product series | Intel® SSD DC P4500 Series |
| Product codename | Cliffdale |
| Intel Rapid Start Technology version | 0.00 |
| Intel® Remote Secure Erase | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Maximum operating temperature | 35 °C |
| Operating / non-operating shock | 1000 G/0.5 msec |
| Technical details | |
| Interface | PCI Express 3.0 |
| Operating temperature (T-T) | 0 - 35 °C |
| SSD temperature monitoring | Yes |
| Intel High Endurance Technology (HET) | No |
| Enhanced Power Loss Data Protection technology | Yes |
| Product colour | Silver |
| SSD form factor | 2.5" |
| Market segment | Server |
| Intel Smart Response Technology version | 0.00 |
| Intel Rapid Start Technology version | 0.00 |
| Status | Launched |
| SSD weight | 131 g |
| SSD shock | 1000 G/0.5 msec |
| SSD power consumption (idle) | <5 W |
| SSD power consumption (active) | Sequential Avg. 13.8W (Write), 9.5W (Read) |
| SSD hardware encryption | AES 256 bit |
| SSD endurance rating | 1.89 PBW |
| Sequential writing speed | 1050 MB/s |
| Sequential reading | 3200 MB/s |
| Product brief URL | http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-p4500-brief.html |
| Launch date | Q2'17 |
| Drive capacity | 2 TB |
| Last change | 63903513 |
| Remote Secure Erase (RSE) technology version | 0.00 |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| Other features | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Product colour | Silver |
| Status | Launched |
| SSD weight | 131 g |
| SSD shock | 1000 G/0.5 msec |
| SSD power consumption (idle) | <5 W |
| SSD power consumption (active) | Sequential Avg. 13.8W (Write), 9.5W (Read) |
| SSD hardware encryption | AES 256 bit |
| SSD endurance rating | 1.89 PBW |
| Sequential writing speed | 1050 MB/s |
| Sequential reading | 3200 MB/s |
| Product brief URL | http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-p4500-brief.html |
| Launch date | Q2'17 |
| Drive capacity | 2 TB |
| Last change | 63903513 |
| Product family | Data center SSD |
| Product series | Intel® SSD DC P4500 Series |
| Product codename | Cliffdale |
| Intel Rapid Start Technology version | 0.00 |
| Remote Secure Erase (RSE) technology version | 0.00 |
