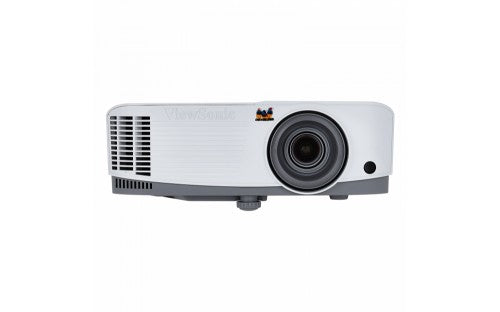

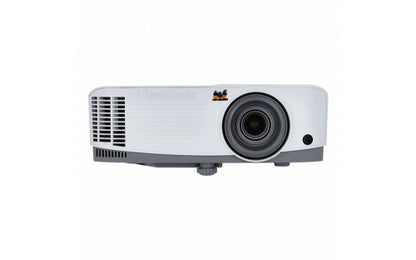

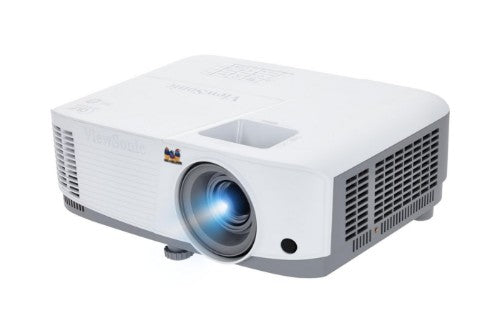

Viewsonic PA503X data projector Standard throw projector 3600 ANSI lumens DLP XGA (1024x768) Grey, White

1024 x 768, DLP, 3600 ANSI lum, 30-300", 190 W, 4:3, Mini USB B, RS-232, RCA, 3.5mm, HDMI 1.4, VGA, 2x RGB, 2 W RMS, 294x218x110 mm

Description

The ViewSonic PA503X price-performance projector features 3,600 lumens, native XGA 1024 x 768 resolution, and intuitive, user-friendly design. Exclusive SuperColor technology offers a wide color gamut for beautiful image production in nearly any environment. The PA503X also features extensive connectivity including HDMI, 2 x VGA, VGA out, Composite Video and audio in/out. An energy-saving SuperEco feature reduces power consumption and extends the lamp life by up to 15,000 hours. With advanced audio-visual features, flexible connectivity options, and an affordable price, the PA503X is ideal for use in education and small business environments.

SuperColor: Amazing Color Accuracy
ViewSonic’s proprietary SuperColor Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.

3D Blu-ray Ready
HDMI Input
Equipped with the latest HDMI, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.

Quick Power Off
With the Quick Power Off feature enabled, the projector can be quickly powered off in seconds rather than waiting for a cool-down cycle to complete. This lets users pack the projector away without having to worry about the internal fan still running.

Industry-leading Warranty
ViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service for an added value worth up to $150.

Specifications

Projector
Number of colours	1.073 billion colours
Projector native resolution	XGA (1024x768)
Native aspect ratio	4:3
Screen size compatibility	762 - 7620 mm (30 - 300")
Projection distance	1.1 - 13 m
Contrast ratio (dynamic)	22000:1
Zoom capability	Yes
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Matrix type	DMD
Matrix size	1.4 cm (0.55")
Keystone correction, vertical	-40 - 40°
Projection technology	DLP
Projector brightness	3600 ANSI lumens
Zoom type	Manual
Lamps
Lamps quantity	1 lamp(s)
Lamp power	190 W
Light source type	Lamp
Service life of light source	4500 h
Service life of light source (economic mode)	15000 h
Light source
Lamps quantity	1 lamp(s)
Lamp power	190 W
Light source type	Lamp
Service life of light source	4500 h
Service life of light source (economic mode)	15000 h
Lens system
Zoom capability	Yes
Focus	Manual
Throw ratio	1.96 - 2.15:1
Optical zoom	1.1x
Zoom type	Manual
Scanning frequency
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Video
Analog signal format system	NTSC, PAL, PAL 60, SECAM
3D Ready	Yes
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1200 (WUXGA)
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	2 W

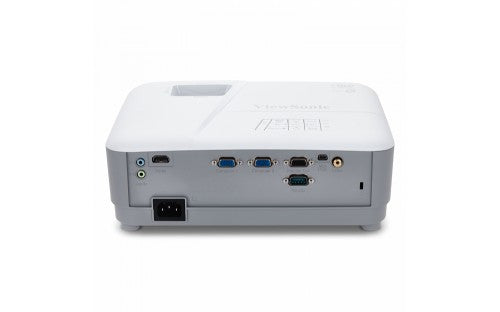

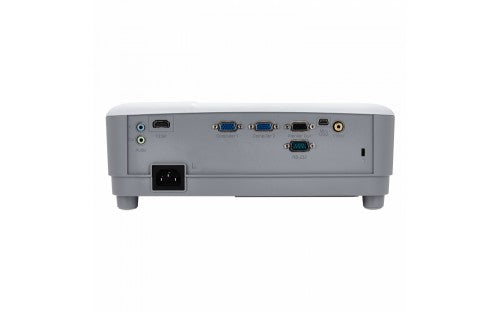

Ports & interfaces
HDMI connector type	Full-size
HDMI version	1.4
VGA (D-Sub) ports quantity	3
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	0
USB 2.0 ports quantity	0
Composite video in	1
Audio (L/R) in	0
S-Video inputs quantity	0
Serial interface type	RS-232
RS-232 ports	1
PC Audio out	Yes
PC Audio in	Yes
DVI port	No
Component video (YPbPr/YCbCr) in	0
AC (power) in	Yes
Network
Ethernet LAN	No
Wi-Fi	No
Ethernet LAN (RJ-45) ports	0
Storage
Card reader integrated	No
Technical details
Product colour	Grey, White
Lamp power	190 W
Pallet gross width	90 cm
Pallet gross length	74 cm
Pallet gross height	2.21 m
Products per master (outer) case	1 pc(s)
Performance
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Features
Certification	FCC (ICES-003), cTUVus
Multimedia
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	2 W
Design
Product type	Standard throw projector
Cable lock slot type	Kensington
Product colour	Grey, White
Cable lock slot	Yes
Placement	Desktop
Display
Built-in display	No
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	260 W
Power consumption (standby)	0.5 W
Packaging data
Package width	365 mm
Package depth	300 mm
Package height	188 mm
Package weight	3.24 kg
Security
Cable lock slot type	Kensington
Cable lock slot	Yes
Supplier features
Harmonized System (HS) code	8528620000
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating altitude	0 - 1499 m
Certificates
Certification	FCC (ICES-003), cTUVus
Weight & dimensions
Package width	365 mm
Package depth	300 mm
Package height	188 mm
Weight	2.22 kg
Width	294 mm
Depth	218 mm
Height	110 mm
Package weight	3.24 kg
Packaging content
Remote control included	Yes
Quick start guide	Yes
Cables included	AC, VGA
Logistics data
Pallet gross width	90 cm
Pallet gross length	74 cm
Pallet gross height	2.21 m
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8528620000
Other features
RS-232 ports	1
