HP USB-C Mini Dock

USB-C Mini Dock

Reasons To Buy

Expand your workspace

Drive an external display with HDMI support up to 4K or VGA support up to 1080p. Connect to your Gigabit Ethernet through the RJ-45 port and your accessories through a USB-C™^[2] or USB port.

Enterprise-class network manageability

Support network manageability^[3] of your device and the dock with PXE boot support, Wake-on LAN, MAC Address Pass-Through, and LAN/WLAN switching.^[4]

Charge your device while you work

Deliver pass-through charging^[1] to your notebook PC or tablet when you connect its USB-C™ AC adapter to the dock’s USB-C™ port.

Description

Stylish palm-sized power, ports, and portability

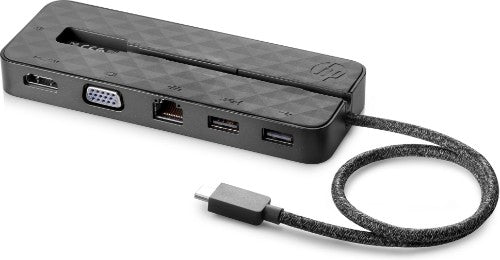

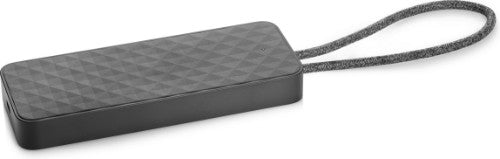

Be productive on the go with streamlined, pocket-sized port expansion that’s fashionable and functional. The HP USB-C™ Mini Dock has a modern, textured design and packs pass-through charging^[1] and data, video, network, and device connectivity^[2] into a compact, portable dock.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Microphone in	No
Connectivity technology	Wired
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Country of origin	China
Product colour	Black
Card reader integrated	No
Brand compatibility	HP
Compatibility	HP x2 1012 G2 Tablet; HP x2 612 G2 Tablet; HP ProBook 470 G5; HP ProBook 450 G5; HP ProBook 440 G5; HP ProBook 430 G5; HP Elitebook x360; HP ChromeBook 13 G1; HP EliteBook x360 1020 G2; HP EliteBook Folio G1; HP EliteBook 1040 G4
HP segment	Business
Technical details
Product colour	Black
Brand compatibility	HP
Compatibility	HP x2 1012 G2 Tablet; HP x2 612 G2 Tablet; HP ProBook 470 G5; HP ProBook 450 G5; HP ProBook 440 G5; HP ProBook 430 G5; HP Elitebook x360; HP ChromeBook 13 G1; HP EliteBook x360 1020 G2; HP EliteBook Folio G1; HP EliteBook 1040 G4
Harmonized System (HS) code	84733020
Storage
Card reader integrated	No
Power
Power source type	AC
Output voltage	15 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	132 g
Width	145 mm
Depth	55 mm
Height	17.5 mm
Design
Country of origin	China
Product colour	Black
Logistics data
Harmonized System (HS) code	84733020
