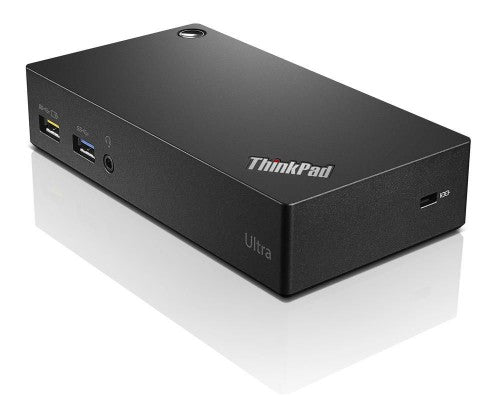

Lenovo ThinkPad USB 3.0 Ultra Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-A Black

ThinkPad USB 3.0 Ultra Dock, 45W, 224g

Key Features

• Gigabit Ethernet Connection
• 2 x SuperSpeed USB 3.0, 2 x USB 2.0 - 4 pin USB Type A,1 x display / video - HDMI, 1 x display / video - DisplayPort, 1 x network - RJ-45, 1 x audio - headphones/microphone
• Security lock slot (cable lock sold separately), 2 Always On USB ports

Description

The ThinkPad USB 3.0 Ultra Dock is a universal USB docking solution that not only delivers a premium display experience (up to 4K2K resolution via DP port), but also provides quick and easy connection to all of the workspace peripherals you use every day. The dock can also charge your mobile devices via two always-on USB ports. Dock requires AC power to operate.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Connectivity technology	Wired
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Product colour	Black
Card reader integrated	No
Brand compatibility	Lenovo
Cable lock slot	Yes
Certification	FCC/ICES CE KCC RCM BSMI VCCI CB UL+cUL EAC TUV Mark Serbia Kvalitet South Africa SABS&LoA Israel SII Ukraine DoC
Technical details
Product colour	Black
Brand compatibility	Lenovo
Cable lock slot	Yes
Harmonized System (HS) code	84733020
Storage
Card reader integrated	No
Power
Power supply type	External
Power consumption (typical)	45 W
Software
Windows operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 95%
Weight & dimensions
Weight	224 g
Width	150 mm
Depth	80 mm
Height	32 mm
Package weight	728 g
Package width	214 mm
Package depth	182 mm
Package height	64 mm
Design
Windows operating systems supported	Yes
Product colour	Black
Cable lock slot	Yes
Certification	FCC/ICES CE KCC RCM BSMI VCCI CB UL+cUL EAC TUV Mark Serbia Kvalitet South Africa SABS&LoA Israel SII Ukraine DoC
Packaging data
Package weight	728 g
Package width	214 mm
Package depth	182 mm
Package height	64 mm
Packaging content
Cables included	USB
AC adapter included	Yes
Certificates
Certification	FCC/ICES CE KCC RCM BSMI VCCI CB UL+cUL EAC TUV Mark Serbia Kvalitet South Africa SABS&LoA Israel SII Ukraine DoC
Logistics data
Harmonized System (HS) code	84733020
Other features
Power supply type	External
