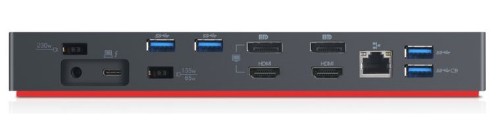

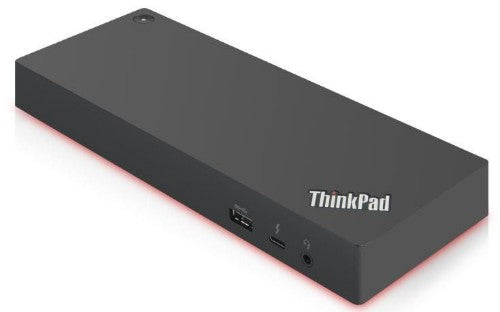

Lenovo 40AN0135EU laptop dock/port replicator Wired Thunderbolt 3 Black, Red

ThinkPad Thunderbolt 3 Dock Gen 2, EU

Key Features

• Expand compatibility on USB-C and Thunderbolt systems
• Dual UHD Displays provide the best video expereince
• Enhanced performance with professional video solutionk and exclusive network manageability

Description

This Intel® Thunderbolt™ Chipset powered Thunderbolt Dock Gen 2 (40AN) invented to boost productivity with extended compatibility on both USB-C and Thunderbolt enabled laptop. Expand your horizons with multiple 4K displays, and transfer files at record speed.It’s everything you need to enhance your creativity and efficiency today. Maximize Your Productivity with a Thunderbolt 3 Dock. Powerful, versatile and incredibly fast!

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
Headphone connectivity	3.5 mm
Host interface	Thunderbolt 3
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Product colour	Black, Red
Card reader integrated	No
Brand compatibility	Lenovo
Compatibility	ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Yoga 3rd Gen, Thinkpad T570 (20H9,20HA), Thinkpad T570 (20JW,20JX), Thinkpad P51s (20HB,20HC), Thinkpad P51s (20JY,20K0), Thinkpad T580 (20L9,20LA), ThinkPad P52s (20LB,20LC)
Cable lock slot	Yes
Plug and Play	Yes
LED indicators	Power
HD type	4K Ultra HD
Technical details
Product colour	Black, Red
Brand compatibility	Lenovo
Compatibility	ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Yoga 3rd Gen, Thinkpad T570 (20H9,20HA), Thinkpad T570 (20JW,20JX), Thinkpad P51s (20HB,20HC), Thinkpad P51s (20JY,20K0), Thinkpad T580 (20L9,20LA), ThinkPad P52s (20LB,20LC)
Cable lock slot	Yes
Plug and Play	Yes
Harmonized System (HS) code	84733020
Storage
Card reader integrated	No
Power
Power source type	DC
Power supply	135 W
Software
Windows operating systems supported	Windows 10, Windows 7
Indication
LED indicators	Power
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	525 g
Width	220 mm
Depth	80 mm
Height	30 mm
Package weight	1.4 kg
Package width	270 mm
Package depth	164 mm
Package height	75 mm
Design
Windows operating systems supported	Windows 10, Windows 7
Product colour	Black, Red
Cable lock slot	Yes
LED indicators	Power
Packaging data
Quantity per pack	1 pc(s)
Package weight	1.4 kg
Package width	270 mm
Package depth	164 mm
Package height	75 mm

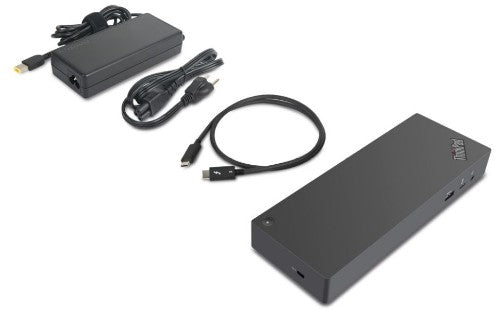

Packaging content
Manual	Yes
Cables included	Thunderbolt
AC adapter included	Yes
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84733020
