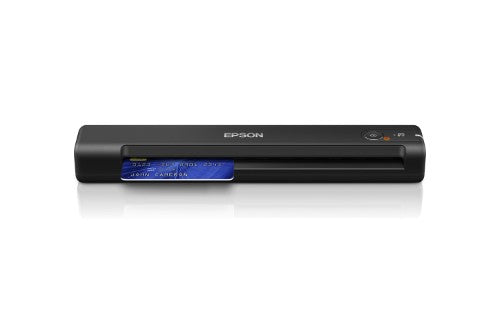

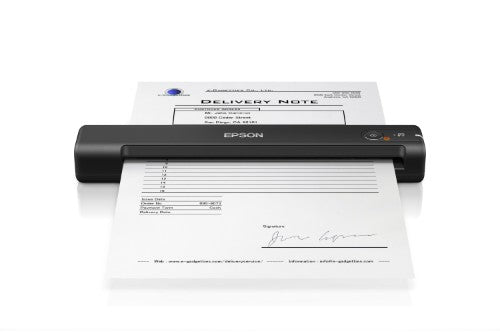

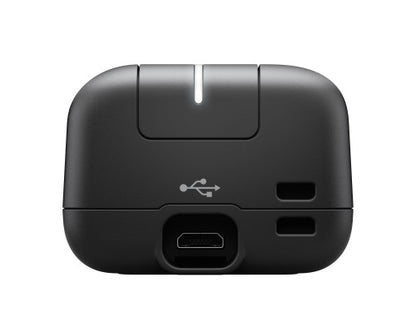

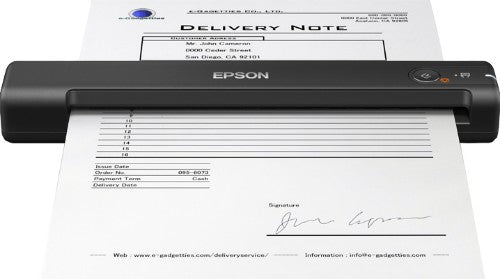

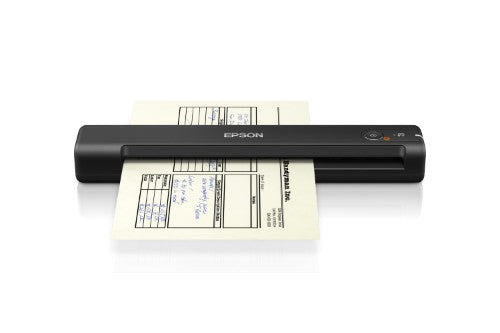

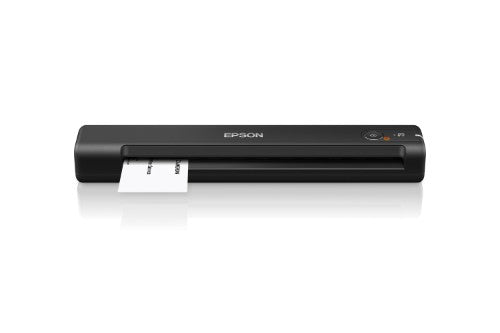

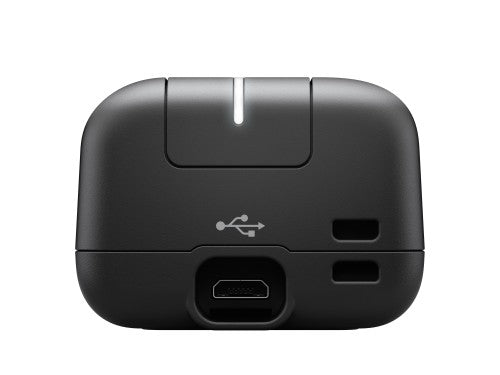

Epson WorkForce ES-50

WorkForce ES-50

Key Features

• Scan anywhere: Small, lightweight design
• USB connectivity: Powered by USB
• Fast scanning speeds: At up to 5.5 seconds per page
• Simplify your workload: Continuous scanning with automatic feed mode
• Includes new ScanSmart software: Get scanning quickly and easily

Description

Scan anywhere
The compact design and USB connectivity make it easy to use the ES-50 wherever it's needed.

Highly organised
Epson's new ScanSmart software makes it effortless for anyone to scan how they want, providing an easy-to-use step by step scanning solution. Users can save and send files in common formats like PDF, jpeg, tiff and many more. Continuous scanning with automatic feed mode speeds up the scanning process, while the CIS sensor delivers instant scanning with no warm up time.

Flexible
The ability to scan a wide range of document and media types makes this model a reliable asset. It handles paper from 35gsm to 270gsm, and long paper up to 1.8 metres.

Specifications

Scanning
Output greyscale depth	8 bit
Scan speed (colour, low res, A4)	5.5 sec/page
Scan speed (b/w, low res, A4)	5.5 sec/page
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	No
Input colour depth	48 bit
Output colour depth	24 bit
Input greyscale depth	16 bit
Sensor type	CIS
Daily duty cycle (max)	300 pages
Output resolutions	600 dpi
Design
Built-in display	No
Scanner type	Handheld scanner
Product colour	Black
Performance
Sensor type	CIS
Daily duty cycle (max)	300 pages
Scan drivers	WIA, SANE, ICA
Input capacity
Auto document feeder (ADF) input capacity	1 sheets
Paper handling
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Plastic Card, Post Card(JPN)
Auto Document Feeder (ADF) media weight	35 - 270 g/m²
Letter	Yes
Legal	Yes
ISO B-series sizes (B0...B9)	B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
Paper tray media weight	35 - 270 g/m²
Ports & interfaces
Standard interfaces	USB 2.0
USB port	Yes
USB version	2.0
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016
Bundled software	Epson Scan 2, Epson ScanSmart
Scan drivers	WIA, SANE, ICA
Drivers included	Yes
Power
Power supply type	USB

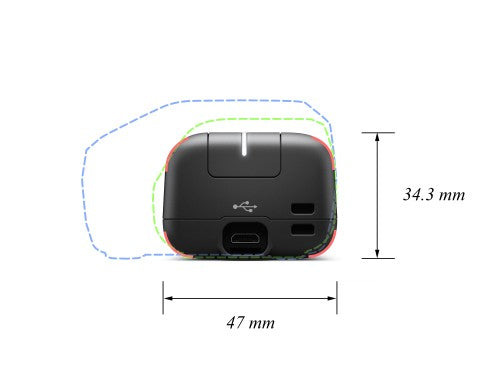

Weight & dimensions
Width	272 mm
Depth	47 mm
Height	34 mm
Weight	270 g
Package depth	330 mm
Package weight	550 g
Package width	140 mm
Package height	65 mm
Packaging data
Package depth	330 mm
Package weight	550 g
Package width	140 mm
Package height	65 mm
Quantity per pack	1 pc(s)
Products per pallet	360 pc(s)
Packaging content
Cables included	USB
Bundled software	Epson Scan 2, Epson ScanSmart
Drivers included	Yes
Technical details
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	171 cm
Master (outer) case gross weight	0 g
Products per pallet layer (UK)	60 pc(s)
Products per pallet layer	60 pc(s)
Products per pallet (UK)	360 pc(s)
Products per master (outer) case	10 pc(s)
Pallet width (UK)	100 cm
Pallet weight (UK)	0 g
Pallet length (UK)	120 cm
Pallet height (UK)	171 cm
Scanner type	Handheld scanner
Image formats supported	JPEG
Country of origin	China
Product colour	Black
Scan technology	ReadyScan LED
Master (outer) case GTIN (EAN/UPC)	8715946656922
Harmonized System (HS) code	84716070
Media formats
Letter	Yes
Legal	Yes
ISO B-series sizes (B0...B9)	B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6, A7, A8
Features
Country of origin	China
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2016
Compatible operating systems	Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	10 - 90%
Other features
Image formats supported	JPEG
Output resolutions	600 dpi
Pallet gross weight	0 g
Scanner type	Handheld scanner
Country of origin	China
Products per pallet	360 pc(s)
Quantity per pack	1 pc(s)
Master (outer) case width	350 mm
Master (outer) case length	360 mm
Master (outer) case height	320 mm
Logistics data
Pallet gross weight	0 g
Country of origin	China
Products per pallet	360 pc(s)
Quantity per pack	1 pc(s)
Master (outer) case width	350 mm
Master (outer) case length	360 mm
Master (outer) case height	320 mm
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	171 cm
Master (outer) case gross weight	0 g
Products per pallet layer (UK)	60 pc(s)
Products per pallet layer	60 pc(s)
Products per pallet (UK)	360 pc(s)
Products per master (outer) case	10 pc(s)
Pallet width (UK)	100 cm
Pallet weight (UK)	0 g
Pallet length (UK)	120 cm
Pallet height (UK)	171 cm
Master (outer) case GTIN (EAN/UPC)	8715946656922
Harmonized System (HS) code	84716070
