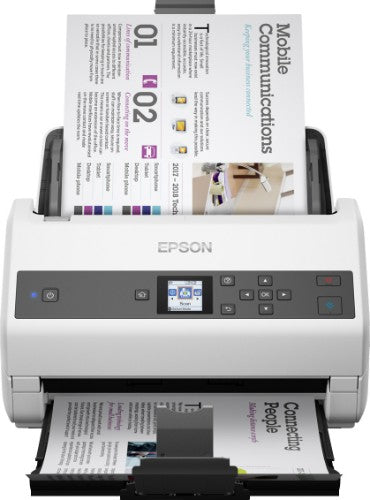

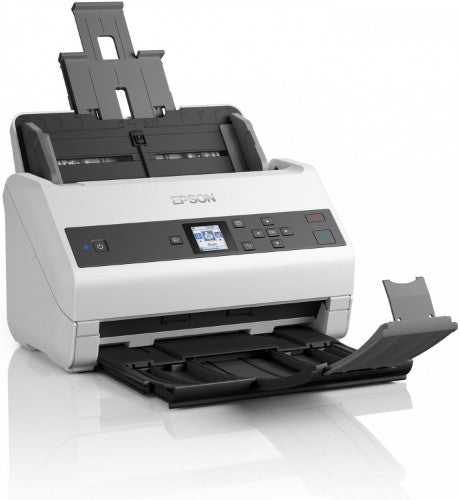

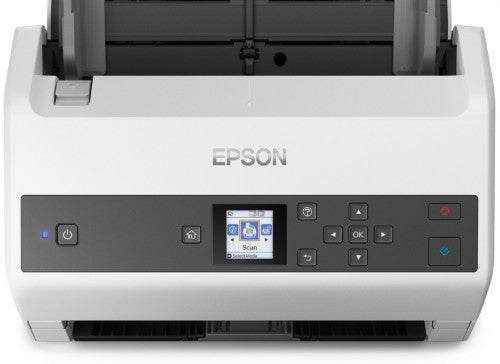

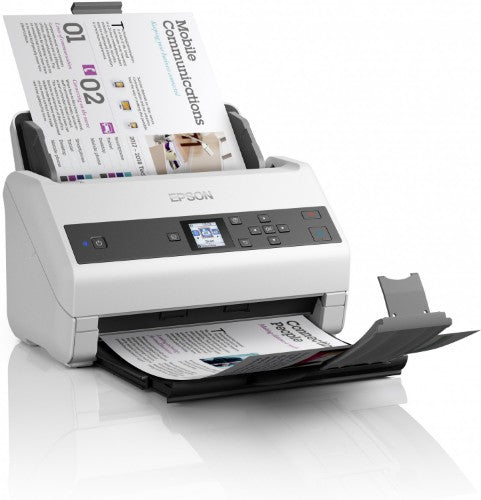

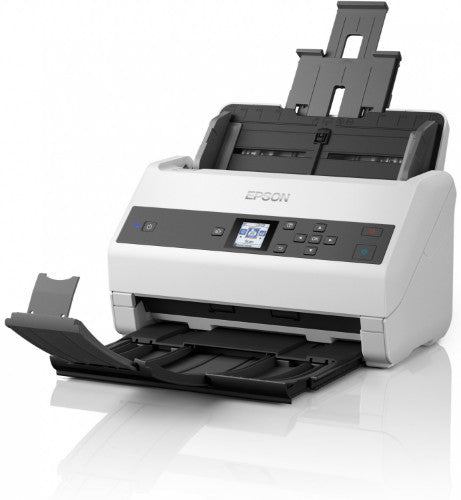

Epson WorkForce DS-970 Sheet-fed scanner 600 x 600 DPI A3 Black, White

CIS, 600x600DPI, 1.45" LCD, USB 3.0, 100-240V, 50-60Hz, 20W, 296x169x167mm, 3.6kg, White/Black

Key Features

• High-speed scanning: 100-page ADF and 85ppm (170ipm) scanning speed
• Low intervention: Active Separation Roller system to prevent double feeding
• Built-in protection: Ultrasonic and paper protection sensors to detect processing errors
• Optional flatbed scanner: Choose from the conversion kit, or link to DS-5500 (A4) or DS-50000 (A3)

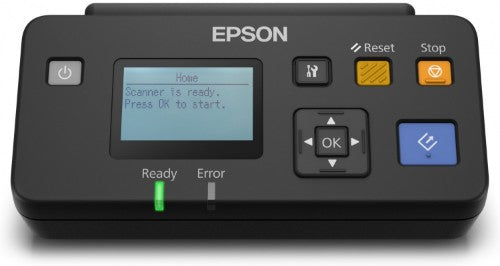

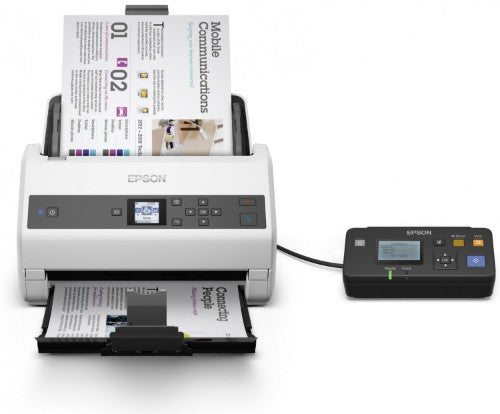

• Optional Network Interface: Enable device sharing in a department. Create pre-defined job profiles

Description

WorkForce DS-970

Create a better business environment with the support of a global leader in document scanning. When the goal is getting documents to the right place as fast as possible, trust in the WorkForce DS-970 - Epson's fastest scanner. High performance matched with an endurance with easy-to-use features that put you in control of your documents.

Ultimate performance

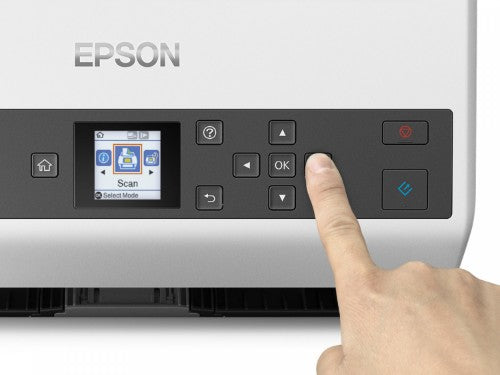

Epsons' fastest A4 document scanner offers class-leading performance1. With a 100-page ADF, 85ppm/170ipm scanning speed and continuous scanning with its automatic feed mode, the WorkForce DS-970 gets through large jobs quickly and efficiently. Scroll through pre-defined jobs easily using the intuituve panel and get your documents to the right place in just a few presses of a button. TWAIN, WIA and ISIS drivers are available for enhanced compatibility with document management systems.

Efficient document processing

Stay in control of the document process with a scanner capable of scanning a wide range of media from 27gsm to 413gsm and a long paper scanning mode up to 6096mm. For documents that cannot be scanned via the ADF – three different flatbed solutions are available up to A3 in size. Slow mode decreases document friction by reducing the speed of the rollers, making it easier to capture fragile or damaged documents, without increasing file sizes. The Active Separation Roller System prevent document double feeds, ensuring that every piece of paper gets scanned, and the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes.

Specifications

Scanning
Output monochrome depth	1 bit
Black/white scanning colour modes	Monochrome
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	30 bit
Output colour depth	24 bit
ADF scan speed (b/w, A4)	85 ppm
ADF scan speed (colour, A4)	170 ppm
Sensor type	CIS
Light source	LED
Scan file formats	BMP, JPEG, PDF, PNG, TIFF
Daily duty cycle (max)	9000 pages
Design
Built-in display	Yes
Scanner type	Sheet-fed scanner
Display diagonal	3.68 cm (1.45")
Display	LCD
Product colour	Black, White
Colour display	Yes
Performance
Sensor type	CIS
Light source	LED
Scan file formats	BMP, JPEG, PDF, PNG, TIFF
Daily duty cycle (max)	9000 pages
Scan drivers	SANE, TWAIN, WIA
Supported network protocols	TCP/IP, DHCP, DNS, SNMP, SLP
Input capacity
Auto document feeder (ADF) input capacity	100 sheets
Paper handling
Maximum ISO A-series paper size	A3
Scanning media types supported	Business Card, Plastic Card
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Letter	Yes
Legal	Yes
ISO B-series sizes (B0...B9)	B4, B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6
Ports & interfaces
Standard interfaces	USB 3.2 Gen 1 (3.1 Gen 1)
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Network
Supported network protocols	TCP/IP, DHCP, DNS, SNMP, SLP
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported	Mac OS X 10.6 Snow Leopard
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012 R2
Bundled software	Document Capture Pro 2.0, Epson Device Admin, Epson Scan 2
Scan drivers	SANE, TWAIN, WIA
Drivers included	Yes
Power
Power consumption (typical)	20 W
Power consumption (standby)	8.5 W
Power consumption (off)	0.1 W
Input voltage	100-240 V
Power supply type	AC
Power consumption (sleep)	1.4 W
AC input frequency	50-60 Hz
Sleep mode	Yes
Weight & dimensions
Width	296 mm
Depth	169 mm
Height	167 mm
Weight	3.6 kg
Packaging content
Cables included	AC, USB
AC adapter included	Yes
Bundled software	Document Capture Pro 2.0, Epson Device Admin, Epson Scan 2
Drivers included	Yes
Manual	Yes
Warranty card	Yes
Display
Display diagonal	3.68 cm (1.45")
Display	LCD
Media formats
Letter	Yes
Legal	Yes
ISO B-series sizes (B0...B9)	B4, B5, B6
ISO A-series sizes (A0...A9)	A4, A5, A6
Technical details
Black/white scanning colour modes	Monochrome
Scanner type	Sheet-fed scanner
Product colour	Black, White
Data compression	IFF (JPEG(7), CCITT G4, LZW), PDF, JPEG
Harmonized System (HS) code	84716070
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported	Mac OS X 10.6 Snow Leopard
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012 R2
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	25 - 60 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%
Other features
Scanner type	Sheet-fed scanner
Logistics data
Harmonized System (HS) code	84716070
