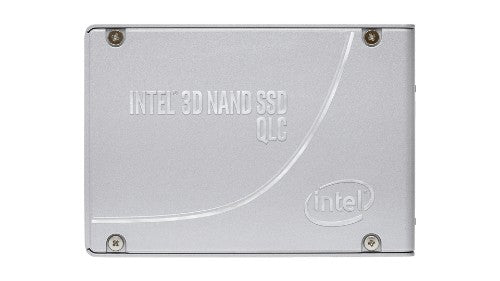

Intel D5 P4420 U.2 7.68 TB PCI Express 3.1 QLC 3D NAND NVMe

Intel® SSD D5-P4420 Series (7.68TB, 2.5in, PCIe 3.1 x4, 3D2, QLC) Generic Single Pack

Description

Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Specifications

Hard drive
SSD capacity	7.68 TB
Memory type	QLC 3D NAND
Performance
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Interface	PCI Express 3.1
Component for	Server/workstation
SSD ARK ID	192906
NVMe	Yes
End-to-End Data Protection	Yes
SSD capacity	7.68 TB
Security algorithms	256-bit AES
Memory type	QLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
SSD temperature monitoring	Yes
Random write (100% span)	36000 IOPS
Random read (100% span)	427000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	30 µs
Read latency	138 µs
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Data transmission
Random write (100% span)	36000 IOPS
Random read (100% span)	427000 IOPS
Write latency	30 µs
Read latency	138 µs
Security
Security algorithms	256-bit AES
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Design
Component for	Server/workstation
SSD form factor	U.2
Product series	Intel® SSD D5-P4420 Series
Product codename	Cliffdale Refresh
Features
Interface	PCI Express 3.1
Component for	Server/workstation
SSD ARK ID	192906
NVMe	Yes
End-to-End Data Protection	Yes
SSD capacity	7.68 TB
Security algorithms	256-bit AES
Memory type	QLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
SSD temperature monitoring	Yes
Random write (100% span)	36000 IOPS
Random read (100% span)	427000 IOPS
Mean time between failures (MTBF)	2000000 h
Write latency	30 µs
Read latency	138 µs
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
SSD form factor	U.2
Harmonized System (HS) code	84717070
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G162706
Temperature monitoring and logging	Yes
Power
Power consumption (write)	15 W
Power consumption (read)	15 W
Power consumption (idle)	5 W
Brand-specific features
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Product series	Intel® SSD D5-P4420 Series
Product codename	Cliffdale Refresh
Intel® Remote Secure Erase	No
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating temperature	70 °C
Operating / non-operating shock	1000G (0.5ms)
Technical details
Interface	PCI Express 3.1
Operating temperature (T-T)	0 - 70 °C
Operating shock	1000 G
Non-operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
SSD temperature monitoring	Yes
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Power consumption (active)	15 W
SSD form factor	U.2
Processor family	Intel SSD D5
Status	Launched
SSD shock	1000G (0.5ms)
SSD power consumption (idle)	5W
SSD endurance rating	5.6PBW(random), 24.6PBW(sequential)
Sequential writing speed	1000 MB/s
Sequential reading	3200 MB/s
Launch date	Q2'19
Weight & dimensions
Weight	125 g
Logistics data
Harmonized System (HS) code	84717070
Other features
Processor family	Intel SSD D5
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Power consumption (active)	15 W
Status	Launched
SSD shock	1000G (0.5ms)
SSD power consumption (idle)	5W
SSD endurance rating	5.6PBW(random), 24.6PBW(sequential)
Sequential writing speed	1000 MB/s
Sequential reading	3200 MB/s
Launch date	Q2'19
Product series	Intel® SSD D5-P4420 Series
Product codename	Cliffdale Refresh
