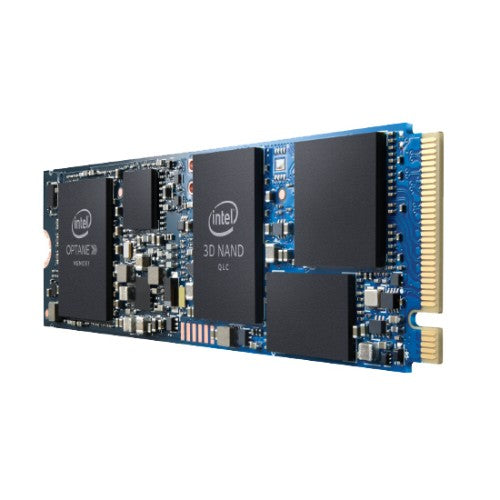

Intel Optane HBRPEKNX0203A01 internal solid state drive M.2 1 TB PCI Express 3.0 3D XPoint + QLC 3D NAND NVMe

1000GB, M.2, PCI Express 3.0, NVMe, 3D XPoint + QLC 3D NAND

Description

Enhanced Power Loss Data Protection

Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Temperature Monitoring and Logging

Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

End-to-End Data Protection

End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Intel® Rapid Start Technology

Intel® Rapid Start Technology allows quick system resumes from the hibernate state.

Specifications

Hard drive
SSD capacity	1 TB
Memory type	3D XPoint + QLC 3D NAND
Performance
Intel® Rapid Start Technology	Yes
Interface	PCI Express 3.0
Component for	PC/Laptop
SSD ARK ID	189611
NVMe	Yes
End-to-End Data Protection	Yes
SSD capacity	1 TB
Memory type	3D XPoint + QLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
SSD temperature monitoring	Yes
Mean time between failures (MTBF)	1600000 h
Write latency	18 µs
Read latency	7 µs
Enhanced Power Loss Data Protection technology	Yes
Data transmission
Write latency	18 µs
Read latency	7 µs
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Mean time between failures (MTBF)	1600000 h
Design
Component for	PC/Laptop
SSD form factor	M.2
Features
Interface	PCI Express 3.0
Component for	PC/Laptop
SSD ARK ID	189611
NVMe	Yes
End-to-End Data Protection	Yes
SSD capacity	1 TB
Memory type	3D XPoint + QLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
SSD temperature monitoring	Yes
Mean time between failures (MTBF)	1600000 h
Write latency	18 µs
Read latency	7 µs
Enhanced Power Loss Data Protection technology	Yes
SSD form factor	M.2
Harmonized System (HS) code	84717070
Temperature monitoring and logging	Yes
Power
Power consumption (write)	5.8 W
Power consumption (read)	5.8 W
Power consumption (idle)	0.013 W
Brand-specific features
Intel® Rapid Start Technology	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1000 G
Non-operating shock	1500 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating temperature	70 °C
Operating / non-operating shock	1000 G / 0.5 ms and 1500 G / 0.5 ms
Technical details
Interface	PCI Express 3.0
Operating temperature (T-T)	0 - 70 °C
Operating shock	1000 G
Non-operating shock	1500 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
SSD temperature monitoring	Yes
Enhanced Power Loss Data Protection technology	Yes
SSD form factor	M.2
Status	Launched
SSD power consumption (idle)	L1.2 : <13mW
SSD endurance rating	300 TBW
Sequential writing speed	1800 MB/s
Sequential reading	2400 MB/s
Random write (8GB span)	250000 IOPS
Product brief URL	https://www.intel.com/content/www/us/en/products/docs/memory-storage/optane-memory/optane-memory-h10-solid-state-storage-brief.html
Launch date	04/10/2019
Random read (8GB span)	330000 IOPS
Weight & dimensions
Width	80 mm
Weight	10 g
Height	22 mm
Logistics data
Harmonized System (HS) code	84717070
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
Status	Launched
SSD power consumption (idle)	L1.2 : <13mW
SSD endurance rating	300 TBW
Sequential writing speed	1800 MB/s
Sequential reading	2400 MB/s
Random write (8GB span)	250000 IOPS
Product brief URL	https://www.intel.com/content/www/us/en/products/docs/memory-storage/optane-memory/optane-memory-h10-solid-state-storage-brief.html
Launch date	04/10/2019
Random read (8GB span)	330000 IOPS
