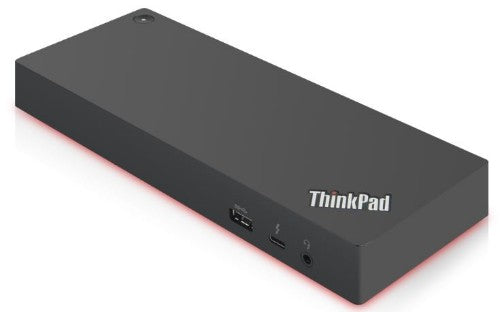

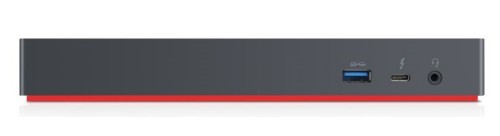

Lenovo 40AN0135SA laptop dock/port replicator Wired Thunderbolt 3 Black

ThinkPad Thunderbolt 3 Dock Gen 2 135W, SA

Key Features

• Ports: 2x HDMI; 2x DisplayPort; 1x ThunderBolt 3 Gen 2
• Ports: 1x USB-C (Thunderbolt 3 compatible); 4x USB 3.1 Gen 2; 1x USB 3.1 Gen 2 with Always-on charging
• 1x RJ-45 Ethernet 10Base-T/100Base-TX/1000Base-T; 1x Audio Connector (3.5mm). 1x Security-lock slot (lock sold separately
• The dock is supported on the following operating systems: Microsoft Windows 7; Microsoft Windows 10
• In the Box: Dock; 135W Power Adapter and Power Cord; Thunderbolt 3 cable; Documentation

Description

Maximize Your Productivity with a Thunderbolt 3 Dock. Powerful, versatile and incredibly fast! This Intel Thunderbolt™ Chipset powered Thunderbolt Dock Gen 2 invented to boost productivity with extended compatibility on both USB-C and Thunderbolt enabled laptop. Expand your horizons with multiple 4K displays, and transfer files at record speed.It’s everything you need to enhance your creativity and efficiency today.

Expand compatibility on USB-C and Thunderbolt systems: Dual UHD Displays provide the best video experience. Enhanced performance with professional video solutions and exclusive network manageability. The ThinkPad Thunderbolt 3 Dock Gen 2 is supported on the following Lenovo systems: ThinkPad X1 Yoga 2nd Gen (Machine Types: 20JD, 20JE, 20JF, 20JG); ThinkPad X1 Yoga 3rd Gen (Machine Types: 20LD, 20LE); ThinkPad T570 (Machine Types: 20H9, 20HA, 20JW, 20JX); ThinkPad P51s (Machine Types: 20HB, 20HC, 20JY, 20K0); ThinkPad T580 (Machine Types: 20L9, 20LA); ThinkPad P52s (Machine Types: 20LB, 20LC).

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
Host interface	Thunderbolt 3
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Product colour	Black
Card reader integrated	No
Brand compatibility	Lenovo
Compatibility	ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Yoga 3rd Gen, Thinkpad T570 (20H9,20HA), Thinkpad T570 (20JW,20JX), Thinkpad P51s (20HB,20HC), Thinkpad P51s (20JY,20K0), Thinkpad T580 (20L9,20LA), ThinkPad P52s (20LB,20LC)
Cable lock slot	Yes
Plug and Play	Yes
LED indicators	Yes
Charging function	Yes
Technical details
Product colour	Black
Brand compatibility	Lenovo
Compatibility	ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Yoga 3rd Gen, Thinkpad T570 (20H9,20HA), Thinkpad T570 (20JW,20JX), Thinkpad P51s (20HB,20HC), Thinkpad P51s (20JY,20K0), Thinkpad T580 (20L9,20LA), ThinkPad P52s (20LB,20LC)
Cable lock slot	Yes
Plug and Play	Yes
Charging function	Yes
Harmonized System (HS) code	84733020
Storage
Card reader integrated	No
Power
Power supply	135 W
Software
Windows operating systems supported	Windows 10, Windows 7
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	525 g
Width	220 mm
Depth	80 mm
Height	30 mm
Package weight	1.4 kg
Package width	270 mm
Package depth	164 mm
Package height	75 mm
Design
Windows operating systems supported	Windows 10, Windows 7
Product colour	Black
Cable lock slot	Yes
LED indicators	Yes
Packaging data
Quantity per pack	1 pc(s)
Package weight	1.4 kg
Package width	270 mm
Package depth	164 mm
Package height	75 mm
Packaging content
Manual	Yes
Cables included	Thunderbolt
AC adapter included	Yes
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84733020
