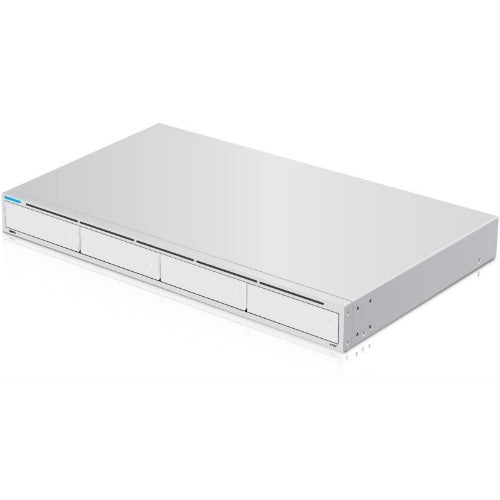

Ubiquiti Protect Network Video Recorder
Ubiquiti Protect Network Video Recorder
Regular price
£245.19 GBP
Regular price
Sale price
£245.19 GBP
Taxes included.
Protect Network Video Recorder
The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.
Key Features
- (4) 2.5"/3.5" Drive bays
- (1) 10G SFP+ port
- (1) Gigabit RJ45 port
- 1U rackmountable (kit included)
- Plug and Play UniFi Protect system with NVR
- Automated secure RAID 1 or RAID 5 configuration
Description
Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 camerasThe UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.
Specifications
| Performance | |
|---|---|
| Video input channels | 4 channels |
| Built-in processor | Yes |
| Processor frequency | 1.7 GHz |
| Ethernet LAN data rates | 1000,10000,100000 Mbit/s |
| Processor cores | 4 |
| Hard drive | |
| RAID support | Yes |
| RAID levels | 5 |
| HDD capacity | 4 GB |
| Storage | |
| RAID support | Yes |
| RAID levels | 5 |
| HDD capacity | 4 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RAID levels | 5 |
| Ethernet LAN data rates | 1000,10000,100000 Mbit/s |
| Features | |
| Rack mounting | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
| Product colour | Grey |
| Processor | |
| Built-in processor | Yes |
| Processor frequency | 1.7 GHz |
| Processor cores | 4 |
| Power | |
| Output current | 2 A |
| Power consumption (typical) | 75 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 100 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Technical details | |
| Harmonized System (HS) code | 85219000 |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 325 mm |
| Height | 43.7 mm |
| Weight | 5.11 kg |
| Logistics data | |
| Harmonized System (HS) code | 85219000 |
