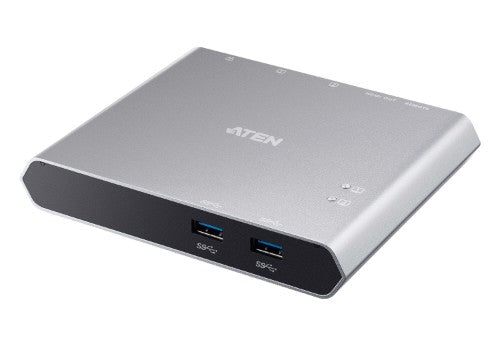

ATEN US3310 KVM switch Aluminium

2-Port 4K HDMI USB-C KVM Dock Switch with Power Pass-through

Key Features

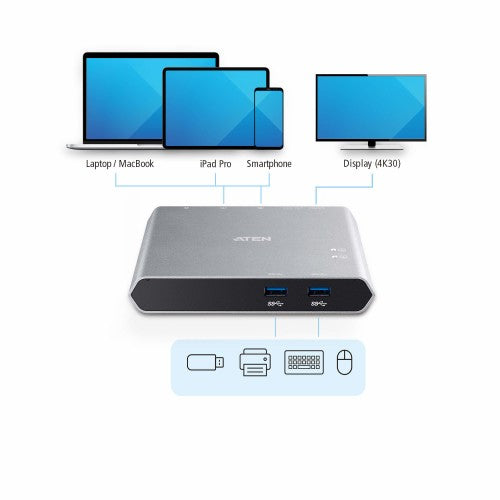

• Allows a USB-C laptop and an Android Smartphone to share one HDMI monitor and all connected USB peripherals*
• Provides USB Power Delivery 3.0 for laptop charging up to 85W (additional USB-C Power Adapter is needed)**
• Supports 4K resolutions – up to 3840 x 2160 @ 30Hz
• Supports Samsung DeX mode or Huawei Desktop mode***
• Video DynaSync – allows EDID and HDCP monitors and computers to function flawlessly, and provides fast switching such as continuous real-time switching

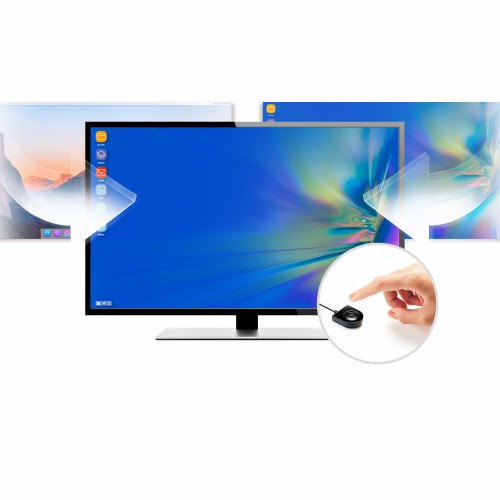

• Switches devices via remote port selector by pressing a button
• Plug and play – no drivers needed
• Multiplatform support – Windows 10 or above, macOS X 10.12, Android 8.0 or later, and iPadOS 13 or later
• Apple M1 chip compatible

Description

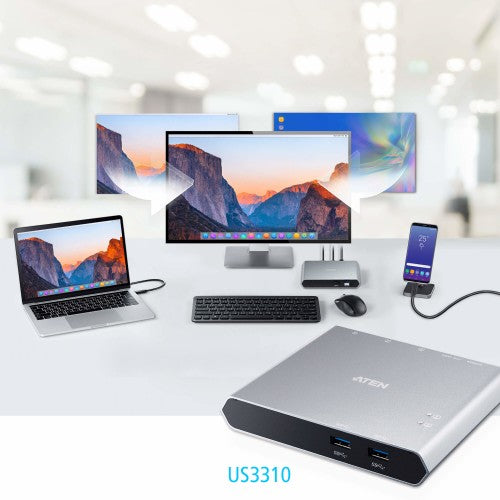

The US3310 is a 2-Port 4K HDMI USB-C KVM Dock Switch with Power Pass-through that features the combination of a multiport dock, and allows one button switching between laptops and Android smart phones. With one set of display, keyboard, and mouse, users get to seamlessly control two different systems and save desk space. Thanks to the remote port selector, users are allowed to put US3310 at the most convenient location or hide it under the desk to do the quick switch.

Featuring superior HDMI video resolutions up to 4K (3840 x 2160) @ 30 Hz, the US3310 delivers high quality video with minimal latency when switching between two different sources, and meanwhile, the HDMI connection remains without destroying the layout. In addition, the USB 3.2 Gen1 compliance provides data transfer speed up to 5 Gb/s, enabling two systems to share and swap data from the external storage devices conveniently.

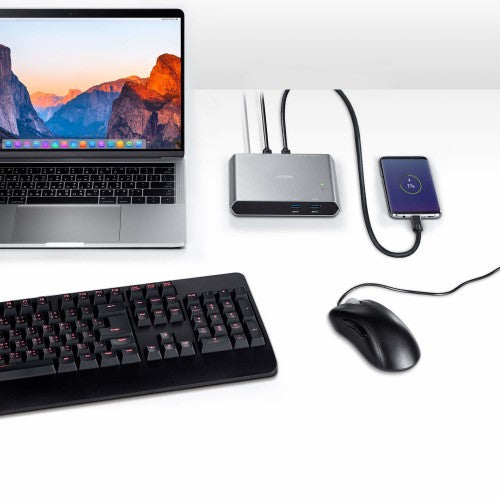

The 85 W USB-C Power Delivery 3.0 pass-through can charge the phone and laptop simultaneously while providing enough power for power-hungry devices, such as external hard drives or gaming devices. Users can connect their smart phone with US3310 to build a workstation in Samsung DeX mode or Huawei Desktop mode for multitask, and switch to laptop whenever they have heavy loading tasks to do.

With the US3310, users can save desk space to switch host devices directly, and creates a personalized desktop environment.

Specifications

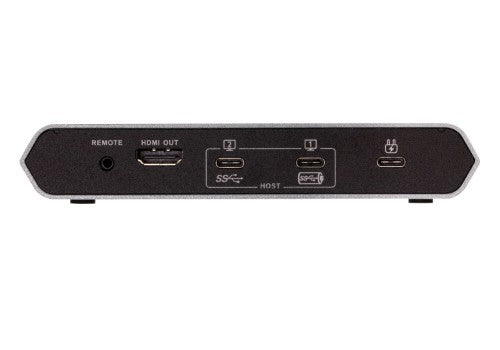

Ports & interfaces
Console USB ports quantity	3
Console ports	USB C
USB connector type	USB Type-A, USB Type-C
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	1
DC-in jack	Yes
USB hub	Yes

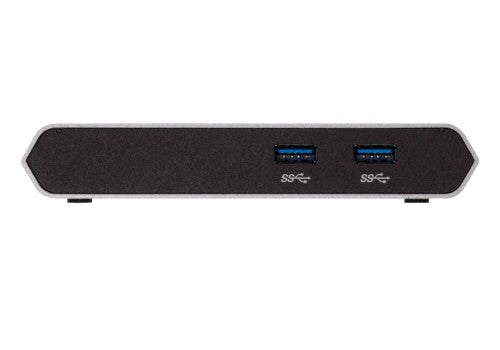

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Console HDMI ports quantity	1
HDCP	Yes
Performance
HDCP	Yes
Data transfer rate (max)	5 Gbit/s
HD type	4K Ultra HD
Video bandwidth	30 Hz
Plug and Play	Yes
Maximum resolution	3840 x 2160 pixels
Number of displays supported	1
Technical details
Product colour	Aluminium
Rack mounting	No
Plug and Play	Yes
LED indicators	Yes
USB hub	Yes
Design
Product colour	Aluminium
Rack mounting	No
LED indicators	Yes
Housing material	Aluminium
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	15 W
Input voltage	5 V
System requirements
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported	Android, iOS
Video
HD type	4K Ultra HD
Video bandwidth	30 Hz
Maximum resolution	3840 x 2160 pixels
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	119 mm
Depth	143 mm
Height	23.8 mm
Weight	330 g
Packaging content
Cables included	USB
Quick installation guide	Yes
Logistics data
Quantity per pack	1 pc(s)
