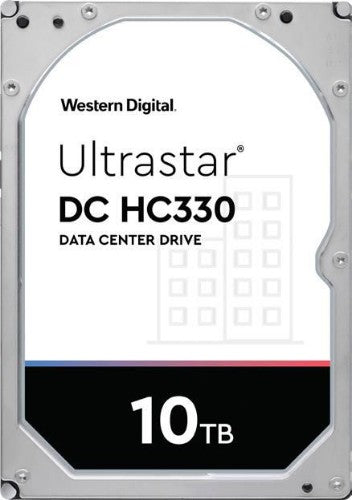

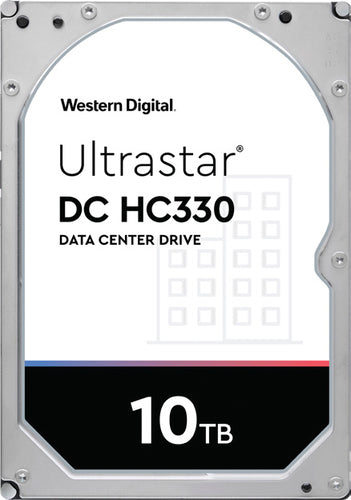

Western Digital Ultrastar DC HC330 internal hard drive 10 TB 7200 RPM 256 MB 3.5" Serial ATA III

10TB, SATA, 3.5", 256MB, Base (SE)

Key Features

• 10TB capacity point supports both OEM & cloud deployments
• Best in Class sustained trasfer rate up to 273MB/s
• Advanced Format 512e models
• Self-Encrypting Drive options

Description

Medium Capacity for High Access-Density Requirements

Delivering Economics and Access Speed to Data Center Applications and Workloads

As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on mid-range capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC300 series is a proven air-platform design that delivers up to the industry leading 10TB of capacity to help address the economic and access-density requirements of many data center workloads. Ideal for storage and server applications, as well as distributed and scalable computing (including block and file storage architectures), the Ultrastar DC HC300 series provides fast 7,200 RPM spindle speeds and is offered in either 6Gb/s SATA or 12Gb/s SAS interface with advanced format 512e3 sector size.

Solves Access Density Challenges

Economical Capacity

4TB, 6TB, 8TB, and 10TB models for lower acquisition cost.

High Performance

Fast data access with 7200 RPM speed, transferring up to 255 MB/s.

Drop-In Ready

SAS and SATA options support traditional servers and storage.

Specifications

Hard drive
HDD sustained transfer rate	260 MiB/s
HDD interface transfer rate	6 Gbit/s
Write seek time	8.6 ms
Read seek time	8 ms
Average latency	4.16 ms
Mean time between failures (MTBF)	2000000 h
Start/stop cycles	600000
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	10 TB
Features
Type	HDD
HDD sustained transfer rate	260 MiB/s
HDD interface transfer rate	6 Gbit/s
Interface	Serial ATA III
Write seek time	8.6 ms
Read seek time	8 ms
Average latency	4.16 ms
Mean time between failures (MTBF)	2000000 h
Start/stop cycles	600000
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	10 TB
Storage drive buffer size	256 MB
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^15 bits read
24/7 operation	Yes
Noise level (idle)	3.4 dB
Power
Power consumption (idle)	8 W
Operating voltage	5 / 12 V
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating vibration	0.67 G
Operating shock	70 G
Non-operating vibration	1.04 G
Non-operating shock	250 G
Technical details
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84717050
Interface	Serial ATA III
Mean time between failures (MTBF)	2000000 h
Weight & dimensions
Width	101.6 mm
Weight	750 g
Height	147 mm
Depth	26.1 mm
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84717050
Other features
Interface	Serial ATA III
