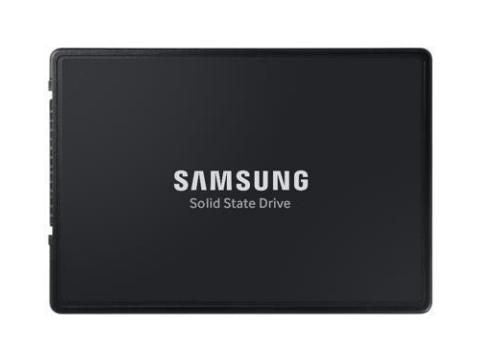

Samsung PM9A3 7.68 TB U.2 PCI Express 4.0 NVMe MLC

7680GB, U.2, PCIe 4.0 x4, 6800 MBs Read, 4100 MBs Write

Description

Specifications

Hard drive
SSD capacity	7.68 TB
Memory type	MLC
Data transmission
Read speed	6800 MB/s
Write speed	4100 MB/s
Random write (4KB)	200000 IOPS
Random read (4KB)	1100000 IOPS
Security
Security algorithms	256-bit AES-XTS
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Features
Interface	PCI Express 4.0
Component for	Server/workstation
NVMe	Yes
End-to-End Data Protection	Yes
SSD capacity	7.68 TB
Security algorithms	256-bit AES-XTS
S.M.A.R.T. support	Yes
Read speed	6800 MB/s
Write speed	4100 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	200000 IOPS
Random read (4KB)	1100000 IOPS
Mean time between failures (MTBF)	2000000 h
Hardware encryption	Yes
SSD form factor	U.2
Harmonized System (HS) code	84717070
Power
Power consumption (max)	13.5 W
Power consumption (idle)	3.5 W
Operating voltage	12 V
Performance
Interface	PCI Express 4.0
Component for	Server/workstation
NVMe	Yes
End-to-End Data Protection	Yes
SSD capacity	7.68 TB
Security algorithms	256-bit AES-XTS
S.M.A.R.T. support	Yes
Read speed	6800 MB/s
Write speed	4100 MB/s
Memory type	MLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	200000 IOPS
Random read (4KB)	1100000 IOPS
Mean time between failures (MTBF)	2000000 h
Hardware encryption	Yes
Design
Component for	Server/workstation
SSD form factor	U.2
Weight & dimensions
Width	70 mm
Height	100 mm
Depth	7 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1500 G
Non-operating vibration	20 G
Technical details
Interface	PCI Express 4.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1500 G
Non-operating vibration	20 G
Hardware encryption	Yes
SSD form factor	U.2
Logistics data
Harmonized System (HS) code	84717070
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
