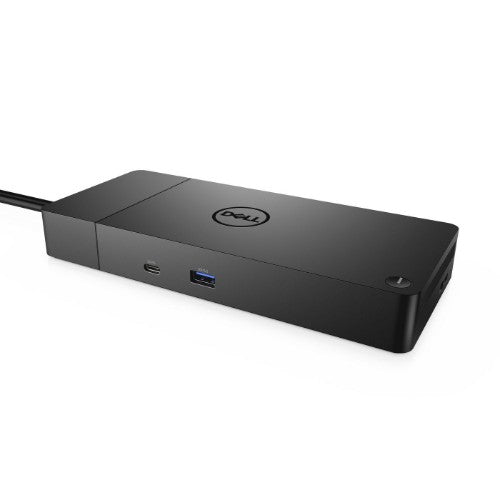

DELL Performance Dock – WD19DCS

USB 3.1 Gen2 Type-C, 3 x USB A 3.1, 2 x DisplayPort, HDMI, RJ-45, 240W

Reasons To Buy

Power your connections

Power your day: Dell ExpressCharge allows you to charge up to 80% in one hour , making it the most efficient way to manage the workday.

Adaptable to your workload: Conveniently choose between a single USB-C cable or dual USB-C functionality, a feature compatible with our Precision 7000 workstations. Plus, with magnetically separable USB-C cables, it is easy to get the flexibility you need.

Unmatched charging: Triple your power delivery and charge even faster with a dock that delivers up to 240W of power with dual USB-C connectors.

Built for the future

Mix and match: Evolve as your needs change with our most powerful and reliable dock. The future-ready design lets you swap out modules with ease if you need to do field replacements or upgrade your systems.

Ultimate connectivity: Dual USB-C connectivity makes it easier than ever to deliver power, data, audio and video as well as connect to system peripherals, no matter what system you use. Plus, with support for up to four displays, including a single 5K and dual 4K monitors, you can connect to everything you need.

Clean and clutter-free: Stay productive by mounting your dock behind your monitor or under your desk with the optional, secure VESA Mount, that offers the complete flexibility with the built-in 0.8 meter cable.

Information in a flash: With data transfer speeds of up to 10Gbps, you can stay productive when connected to all your devices.

Optimize your workspace

Smooth and seamless: Work without disruptions utilizing a single firmware on our most manageable docks ever. Plus, with Dell Client Command Suite and Microsoft System Center Configuration Manager, you can quickly and easily update your firmware without rebooting your dock.

Secure manageability: Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN and more, it’s easier than ever to stay productive while managing your dock.

Description

Boost your PC’s power up to 240W on the world’s most powerful and first modular Dual USB-C dock with a future-ready design.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
DC-in jack	Yes
Connectivity technology	Wired
PowerShare	Yes
DisplayPort version	1.4
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	5120 x 2880 pixels
On/off switch	Yes
Product colour	Black
Card reader integrated	No
LED indicators	Yes
VESA mounting	Yes
Technical details
Product colour	Black
Harmonized System (HS) code	84733020
Total carbon footprint (kg of CO2e)	40.95
Storage
Card reader integrated	No
Power
Power source type	DC
AC input voltage	120 - 230 V
AC input frequency	50 - 60 Hz
Power cable length	0.8 m
Power supply	240 W
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Linux operating systems supported	Yes
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Weight	585 g
Width	205 mm
Depth	90 mm
Height	29 mm
Package width	300 mm
Package depth	315 mm
Package height	62 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Product colour	Black
LED indicators	Yes
Packaging data
Quantity per pack	1 pc(s)
Package width	300 mm
Package depth	315 mm
Package height	62 mm
Carbon footprint
Total carbon footprint (kg of CO2e)	40.95
PAIA version	PAIA/GaBi not used
Carbon emissions, energy usage (kg of CO2e)	5.95
Carbon emissions, manufacturing (kg of CO2e)	29.8
Carbon emissions, logistics (kg of CO2e)	7.75
Carbon emissions, end-of-life (kg of CO2e)	-2.55
Packaging content
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84733020
