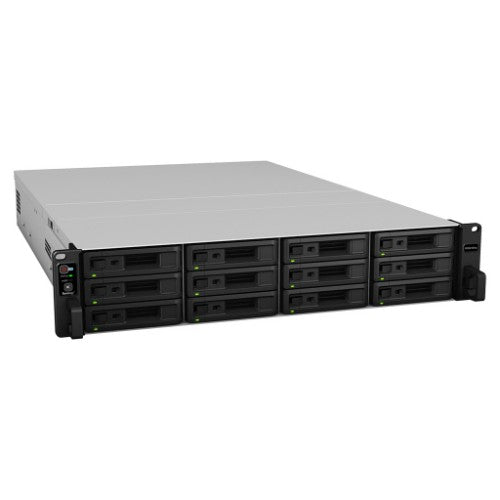

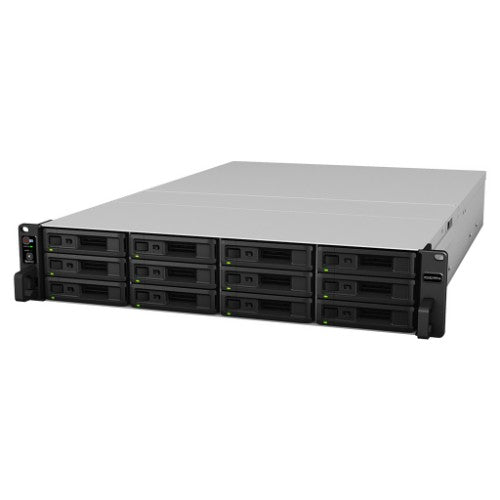

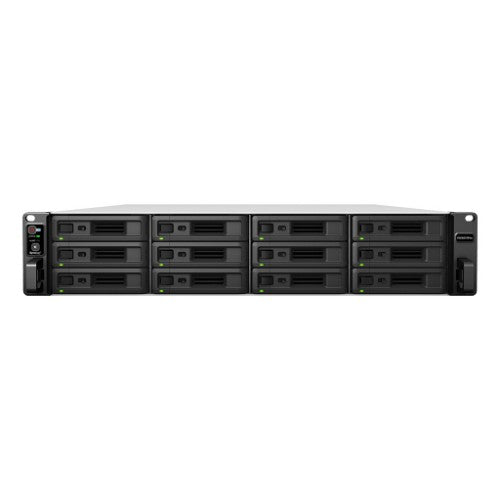

Synology RackStation RS3621RPxs NAS Rack (2U) Intel® Xeon® D-1531 8 GB DDR4 192 TB HDD DiskStation Manager Aluminium, Black

192TB, Intel Xeon D-1531, 2.2 GHz, 8 GB DDR4 ECC UDIMM, 2 x USB 3.2 Gen 1, 2 x Expansion, 2U, 4 x 1GbE RJ-45

Description

Safeguard your business assets
Synology RS3621RPxs is a powerful 12-bay storage server. Its 6-core processor enables compute-intensive services while its redundant power, ECC memory, and Btrfs file system safeguard mission-critical data. Capable of delivering 189,098 4K random read IOPS and 4,718 MB/s sequential read throughput1, it is ideal for small businesses.

Reliability first
Service continuity is at the core of the RS3621RPxs design.

Redundant power
Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans can be replaced without powering down the system.

Near-zero downtime
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover.

Next-generation file system
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots.

Customize to suit
The two built-in PCIe slots allow users to customize the RS3621RPxs to satisfy unique performance, networking, and storage requirements2.

10GbE ready
Support for 10GbE NICs expands the throughput of the unit by up to 5x times using link aggregation.

SSD cache3
Boost read/write IOPS by up to 16 times by enabling SSD cache via our Synology M.2 NVMe adapter cards and SNV3000 Series SSDs or by installing one or more 2.5” SAT5200 SSDs.

On-demand drive bays
Expand to 36 drive bays using two RX1217(RP) expansion units with minimal intervention.

Hyper Backup
A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication4, integrity checks, and incremental transfer technology reduce bandwidth and storage used.

Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption.

Storage for virtualization
Synology iSCSI storage supports mainstream virtualization solutions with an easy management interface to enhance usability. VMware vSphere 6.5 and VAAI integration helps offload storage operations. Windows Offloaded Data Transfer (ODX) speeds up data transfer. OpenStack Cinder support turns your Synology NAS into a block-based storage component. Additionally, Synology Storage Console enables even more simplified storage provisioning and management options in VMware and Windows environments

Works best with Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.

Specifications

Storage
Total installed storage capacity	192 TB
Online RAID migration	Yes
Online RAID expansion	Yes
Storage drives installed	Yes
Installed storage drive type	HDD
Number of storage drives installed	12
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Storage drive interface	Serial ATA II, Serial ATA III
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
RAID levels	0, 1, 5, 6, 10, F1, JBOD
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Processor
Processor manufacturer	Intel
Processor boost frequency	2.7 GHz
CPU configuration (max)	1
Conflict-Free processor	Yes
Processor frequency	2.2 GHz
Processor family	Intel® Xeon®
Processor model	D-1531
Processor cores	6
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	64 GB
Memory slots	4
Memory form factor	UDIMM
ECC	Yes
Network
Ethernet LAN	Yes
Wake-on-LAN ready	Yes
Supported network protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
iSCSI support	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
PCI Express x8 (Gen 3.x) slots	2
Ethernet LAN (RJ-45) ports	4
Hard drive
RAID support	Yes
Supported file systems	BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4
RAID levels	0, 1, 5, 6, 10, F1, JBOD
Design
Cooling type	Active
Fan diameter	8 cm
Drive bay locking	Yes
Product colour	Aluminium, Black
Number of fans	4 fan(s)
LED indicators	HDD, Power
Chassis type	Rack (2U)
Technical details
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Product colour	Aluminium, Black
Number of users	4000 user(s)
Noise level	50.2 dB
Multilingual support	Yes
LED indicators	HDD, Power
Chassis type	Rack (2U)
Number of fans	4 fan(s)
Sustainability compliance	Yes
Harmonized System (HS) code	84714100
Compliance certificates	RoHS
Performance
Built-in iTunes server	Yes
Built-in FTP server	Yes
System log	Yes
Share folder	SMB/NFS/AFP/FTP
Browser supported	Chrome, Firefox, Edge, Internet Explorer, Safari
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
On/off switch	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Web-based management	Yes
Security algorithms	HTTPS, SSH, SSL/TLS
Reset button	Yes
Operating system installed	DiskStation Manager
Number of users	4000 user(s)
Noise level	50.2 dB
Multilingual support	Yes
Access Control List (ACL)	Yes
Third-party support	Yes
Snapshot	Yes
Cooling
Cooling type	Active
Fan diameter	8 cm
Number of fans	4 fan(s)
Security
Drive bay locking	Yes
Security algorithms	HTTPS, SSH, SSL/TLS
Access Control List (ACL)	Yes
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operating system installed	DiskStation Manager
Management features
On/off switch	Yes
Web-based management	Yes
Reset button	Yes
Power
Power consumption (HDD standby)	65.94 W
Power supply location	Built-in
Power supply unit (PSU) capacity	500 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Power consumption (typical)	140.01 W
Weight & dimensions
Width	482 mm
Depth	724 mm
Height	88 mm
Packaging content
Cables included	AC
Power cables quantity	2
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Secure Key Technology version	1.00
Intel Enhanced Halt State	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	No
Sustainability
Sustainability compliance	Yes
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 5000 m
Certificates
Certification	FCC CE BSMI VCCI RCM EAC CCC KC UL
Logistics data
Harmonized System (HS) code	84714100
Packaging data
Cables included	AC
Other features
Certification	FCC CE BSMI VCCI RCM EAC CCC KC UL
Compliance certificates	RoHS
