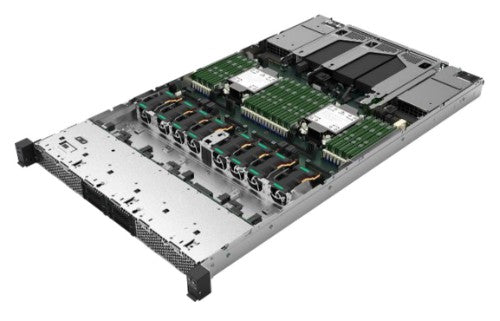

Intel Server System M50CYP1UR204 Intel C621A LGA 4189 Rack (1U)

Intel Server System M50CYP1UR204, Single

Description

The Intel® Server System M50CYP Family is designed to be your primary workhorse server for all your mainstream needs, including collaboration, storage, database, web server, ecommerce, analytics, and more.

Specifications

Hard drive
RAID levels	0, 1, 5, 10
Hot-swap HDD bays	Yes
Processor
Built-in processor	No
Processor socket	LGA 4189
Number of processors supported	2
Motherboard chipset	Intel C621A
Processor manufacturer	Intel
Memory
Supported memory types	DDR4-SDRAM
Maximum internal memory	12 TB
Storage
Number of storage drives supported	4
Number of 2.5" bays	4
RAID levels	0, 1, 5, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	2.5"
Supported storage drive types	SSD
Performance
Intel Advanced Management Technology	Yes
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Intel Remote Management Module Support	Yes
Intel Intelligent Power Node Manager	Yes
Integrated BMC with IPMI	Yes
Backplanes support	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB ports quantity	6
USB 2.0 ports quantity	1
Serial ports quantity	2
Number of SATA connectors	10
Number of SAS ports	8
Features
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Integrated BMC with IPMI	Yes
Backplanes support	Yes
Harmonized System (HS) code	8473301180
Export Control Classification Number (ECCN)	5A002U
Commodity Classification Automated Tracking System (CCATS)	G157815L1
Riser card included	Yes
Technical details
USB ports quantity	6
Number of storage drives supported	4
Number of 2.5" bays	4
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Advanced Management Technology	Yes
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Redundant fans support	Yes
Rack-Friendly board	Yes
Rack rails	No
Intel Remote Management Module Support	Yes
Intel Intelligent Power Node Manager	Yes
Integrated BMC with IPMI	Yes
Heat sink included	Yes
CPU configuration (max)	2
Chassis type	Rack (1U)
Backplanes support	Yes
Motherboard	Intel® Server Board M50CYP2SB1U
Target market	Mainstream
Supported RAID configuration	0/1/5/10
Status	Launched
Riser slot 2 number of lanes	24
Riser slot 1 number of lanes	16
Launch date	Q2'21
Extended warranty available for purchase (select countries)	Yes
Expected discontinuance date	2026
Riser slot 3 number of lanes	16
Harmonized System (HS) code	8473301180
Export Control Classification Number (ECCN)	5A002U
Commodity Classification Automated Tracking System (CCATS)	G157815L1
Logistics data
Harmonized System (HS) code	8473301180
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Advanced Management Technology	Yes
Intel Remote Management Module Support	Yes
Intel Intelligent Power Node Manager	Yes
Intel® Optane™ Memory Ready	Yes
Processor ARK ID	214845
Design
Redundant fans support	Yes
Rack-Friendly board	Yes
Rack rails	No
Heat sink included	Yes
Chassis type	Rack (1U)
Power
Redundant power supply (RPS) support	Yes
Power supply type	AC
Power supply	1300 W
Number of power supply units	0
Thermal Design Power (TDP)	270 W
Weight & dimensions
Width	781 mm
Height	43 mm
Depth	438 mm
Other features
On-board graphics card	Yes
CPU configuration (max)	2
Motherboard	Intel® Server Board M50CYP2SB1U
Target market	Mainstream
Supported RAID configuration	0/1/5/10
Status	Launched
Riser slot 2 number of lanes	24
Riser slot 1 number of lanes	16
Launch date	Q2'21
Extended warranty available for purchase (select countries)	Yes
Expected discontinuance date	2026
Riser slot 3 number of lanes	16
