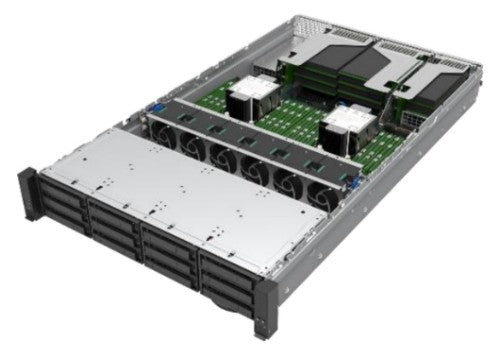

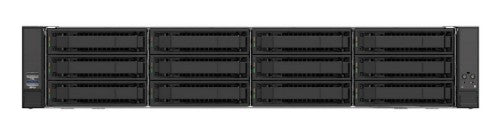

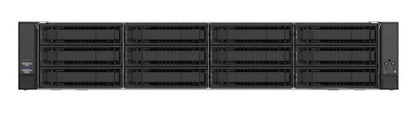

Intel Server System M50CYP2UR312 Intel C621A Rack (2U)

Intel Server System M50CYP2UR312, Single

Description

The Intel® Server System M50CYP Family is designed to be your primary workhorse server for all your mainstream needs, including collaboration, storage, database, web server, ecommerce, analytics, and more.

Specifications

Hard drive
RAID levels	0, 1, 5, 10
Hot-swap HDD bays	Yes
Optical drive
Optical drive type	No
Processor
Built-in processor	No
Processor family	Intel® Xeon®
Number of processors supported	2
Motherboard chipset	Intel C621A
Processor manufacturer	Intel
Memory
Supported memory types	DDR4-SDRAM
Number of DIMM slots	32
Maximum internal memory	12 TB
Storage
Number of storage drives supported	12
Number of 2.5" bays	12
RAID levels	0, 1, 5, 10
Hot-swap HDD bays	Yes
Storage drive sizes supported	2.5"
Supported storage drive types	SSD
Performance
Intel Advanced Management Technology	Yes
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Optical drive type	No
Intel Remote Management Module Support	Yes
Intel Intelligent Power Node Manager	Yes
Integrated BMC with IPMI	Yes
Graphics
On-board graphics card model	Aspeed AST2500
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB ports quantity	6
USB 2.0 ports quantity	1
Serial ports quantity	2
Number of SATA connectors	10
Number of SAS ports	8
Features
ARK ID	214841
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Optical drive type	No
Integrated BMC with IPMI	Yes
Harmonized System (HS) code	8473301180
Export Control Classification Number (ECCN)	5A002U
Commodity Classification Automated Tracking System (CCATS)	G157815L1
Technical details
ARK ID	214841
USB ports quantity	6
Number of storage drives supported	12
Number of 2.5" bays	12
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Advanced Management Technology	Yes
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Redundant fans support	Yes
Rack-Friendly board	Yes
Rack rails	No
Intel Remote Management Module Support	Yes
Intel Intelligent Power Node Manager	Yes
Integrated BMC with IPMI	Yes
CPU configuration (max)	2
Chassis type	Rack (2U)
Target market	Mainstream
Supported RAID configuration	0/1/5/10
Status	Launched
Riser slot 2 number of lanes	32
Riser slot 1 number of lanes	32
Launch date	Q2'21
Extended warranty available for purchase (select countries)	Yes
Riser slot 3 number of lanes	16
Harmonized System (HS) code	8473301180
Export Control Classification Number (ECCN)	5A002U
Commodity Classification Automated Tracking System (CCATS)	G157815L1
Logistics data
Harmonized System (HS) code	8473301180
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Advanced Management Technology	Yes
Intel Remote Management Module Support	Yes
Intel Intelligent Power Node Manager	Yes
Intel® Optane™ Memory Ready	Yes
BIOS
BIOS type	UEFI
Design
Redundant fans support	Yes
Rack-Friendly board	Yes
Rack rails	No
Chassis type	Rack (2U)
Power
Redundant power supply (RPS) support	Yes
Power supply type	AC
Power supply	2100 W
Number of power supply units	0
Thermal Design Power (TDP)	270 W
Weight & dimensions
Width	712 mm
Height	89 mm
Depth	439 mm
Other features
On-board graphics card	Yes
CPU configuration (max)	2
Target market	Mainstream
Supported RAID configuration	0/1/5/10
Status	Launched
Riser slot 2 number of lanes	32
Riser slot 1 number of lanes	32
Launch date	Q2'21
Extended warranty available for purchase (select countries)	Yes
Riser slot 3 number of lanes	16
