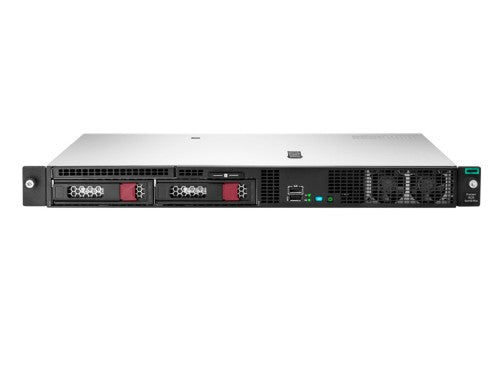

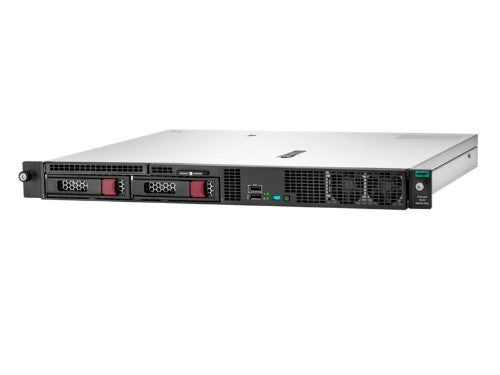

HPE ProLiant DL20 Gen10 Plus server Rack (1U) Intel Xeon E E-2314 2.8 GHz 8 GB DDR4-SDRAM 290 W

ProLiant DL20 Gen10 Plus E-2314 2.8GHz 4-core 1P 8GB-U 2LFF-NHP 290W PS

Description

Compact, Secure, and Reliable Design for an Affordable Solution
HPE ProLiant DL20 Gen10 Plus server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.

HPE ProLiant DL20 Gen10 server has great quality and design features that are a hallmark of the HPE ProLiant family such as tool-less access to system components and enhanced serviceability.

Handle light workloads up to the some of the most demanding requirements with affordable configuration choices and a wide variety of HPE Qualified Options.

Specifications

Processor
Idle States	Yes
Execute Disable Bit	Yes
Processor cache	8 MB
Processor frequency	2.8 GHz
Processor boost frequency	4.5 GHz
Processor model	E-2314
Processor manufacturer	Intel
Processor family	Intel Xeon E
Memory
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Memory slots	4x DIMM
Memory clock speed	3200 MHz
Maximum internal memory	128 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Storage
Hot-swap	No
RAID support	Yes
RAID levels	0, 1, 5, 10
Optical drive type	No
Maximum storage capacity	8 TB
HDD interface	Serial Attached SCSI (SAS)
Network
LAN controller	Broadcom BCM5720
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Optical drive
Optical drive type	No
Design
Optical drive type	No
Chassis type	Rack (1U)
Performance
Compatible operating systems	Microsoft Windows Server 2019: Essentials, Standard, Datacenter, Hyper-V Microsoft Windows Server 2022: Essentials, Standard, Datacenter Red Hat Enterprise Linux (RHEL): 8.4 (64 bit, includes KVM) SUSE Linux Enterprise Server (SLES): 12 SP5, 15 SP3 (64 bit, includes KVM & Xen) VMware ESXi: 7.0 U3
Software
Compatible operating systems	Microsoft Windows Server 2019: Essentials, Standard, Datacenter, Hyper-V Microsoft Windows Server 2022: Essentials, Standard, Datacenter Red Hat Enterprise Linux (RHEL): 8.4 (64 bit, includes KVM) SUSE Linux Enterprise Server (SLES): 12 SP5, 15 SP3 (64 bit, includes KVM & Xen) VMware ESXi: 7.0 U3
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
CPU configuration (max)	1
Power
Redundant power supply (RPS) support	Yes
Power supply input frequency	50/60 Hz
Power supply	290 W
Power supply input voltage	100 - 240 V
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Ethernet interface type	Gigabit Ethernet
CPU configuration (max)	1
Chassis type	Rack (1U)
Weight & dimensions
Width	434.6 mm
Height	43.2 mm
Depth	382.2 mm
Other features
CPU configuration (max)	1
