ATEN CS52DP KVM switch Black

2-Port USB-C DisplayPort Hybrid Cable KVM Switch

Key Features

• One KVM console controls one USB DisplayPort computers and one USB-C device
• Superior video quality – up to 4096 x 2160 @ 60 Hz
• Computer selection via remote port selector
• Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
• DisplayPort 1.2 and HDCP compliant1
• Bus-powered – no external power adapter required

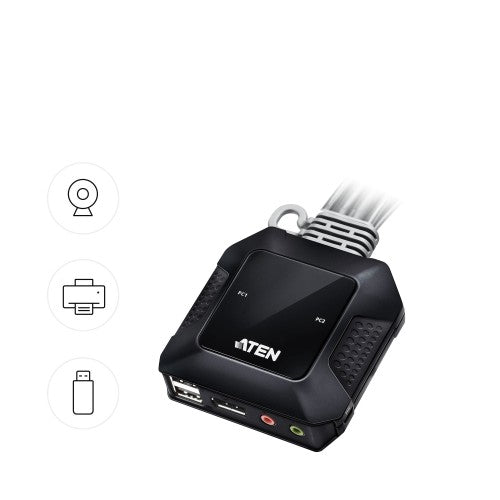

• The console USB ports can be used for USB peripheral sharing2
• Multiplatform support – Windows, Mac, Linux, Android, and iOS
• No software required

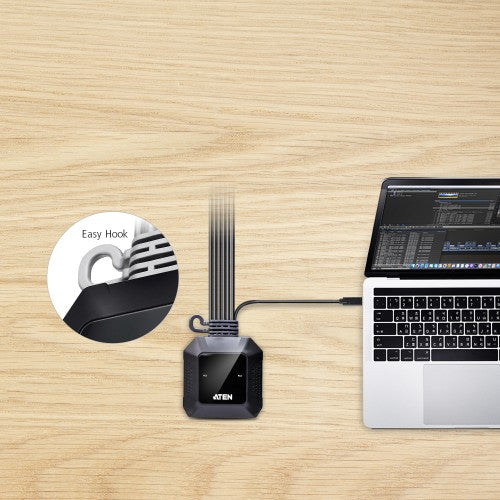

• Hook design for space-saving and organized workstation
• Supports USB hot-plugging

Description

As an increasingly mobile workforce hot-desks between home and hybrid offices, agility is the key to effective multitasking and remaining engaged in productivity. The compact CS52DP is one of the best choices to meet these hybrid work challenges head on by revamping your workspace with the power of a cable KVM switch and the mobility of USB-C connectivity. Streamline even the most complex workflows by simply pushing the button on the remote port selector to switch between your tasks on one DisplayPort PC and a mobile USB-C device from a DisplayPort and USB console. The DisplayPort-enabled shared screen further assures outstanding 4K audiovisual quality across two computer platforms. Get agile with the CS52DP to jump start your hybrid work productivity and stay ahead of the pack.

Exceptional AV Performance in Vivid 4K
The CS52DP empowers your desktop workflows with 4K DCI audiovisual enhancement by presenting visual content in outstanding precision.

Space-Cost Efficient Desktop Setup
The compact CS52DP enables plug-n-play USB-C connection to a mobile device such as a laptop without going through a docking station, which is a useful, budget-friendly option to expand desktop workspace in a neat and tidy way.

Smooth Cross-Platform Integration
The CS52DP enables the integration of different computer systems (Windows, Mac, Sun, Linux, Android and iOS) that are accessible over one KVM console.

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.

Specifications

Ports & interfaces
Console USB ports quantity	2

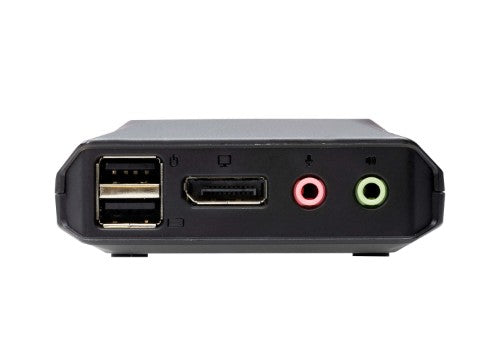

Console ports	3.5mm headphone, 3.5mm mic, DisplayPort
USB connector type	USB Type-A, USB Type-C
Number of microphone inputs	2
DisplayPorts quantity	1
DisplayPort version	1.2
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Headphone outputs	2
Cable length	1.2 m
HDCP	Yes
Performance
HDCP	Yes
HD type	4K Ultra HD
Hot-Plug support	Yes
Maximum resolution	4096 x 2160 pixels
Technical details
Product colour	Black
Rack mounting	No
Hot-Plug support	Yes
LED indicators	Yes
Design
Remote switch cable length	1.8 m
Product colour	Black
Cable length	1.2 m
Rack mounting	No
LED indicators	Yes
Housing material	Plastic
Country of origin	Taiwan
Display
Built-in display	No
Power
Power source	USB
Power consumption (typical)	0.74 W
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Android, iOS
Video
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Features
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	84.2 mm
Depth	83.4 mm
Height	30.4 mm
Weight	300 g
Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package weight	407 g
Packaging data
Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package weight	407 g
Packaging content
Quick installation guide	Yes
Logistics data
Country of origin	Taiwan
