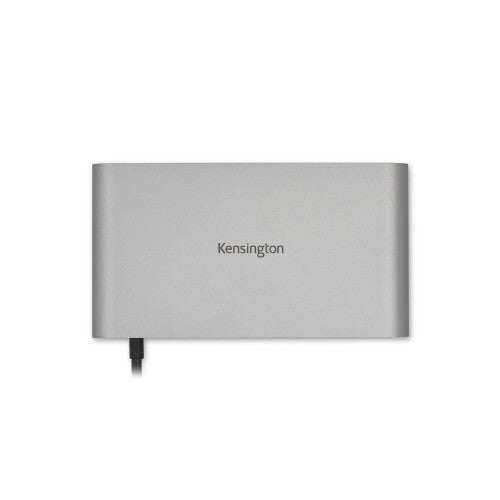

Kensington UH1440P USB-C 5Gbps Dual Video Driverless Mobile Dock – 85W Pass-Through Power – DP/HDMI/VGA

UH1440P USB-C 5Gbps Dual Video Driverless Mobile Dock – 85W Pass-Through Power – DP/HDMI/VGA

Key Features

• Best For: Dual video support for DP/HDMI and DP/VGA monitors
• Warranty: Two-year limited warranty
• Connection Technology: USB-C
• Power Delivery: Up to 85W power pass-through
• Compatibility: USB-C based devices (Thunderbolt 4, Thunderbolt 3, USB4, and USB-C Alt Mode) running Windows 10 or later, macOS 11 or later, iPadOS 13 or later and Samsung DeX®
• No. of Monitors Supported: 2

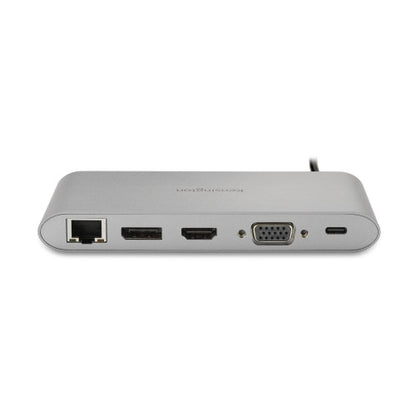

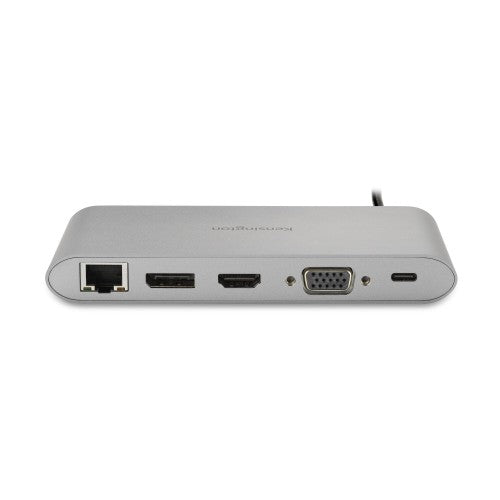

• Video Ports: 1 x HDMI 1.4 / 1 x DisplayPort 1.2 / 1 x VGA port
• Maximum Resolution Supported: Dual 1080p @ 60Hz
• Plug and Play: Plug and play installation
• System Requirements: Driverless - no firmware or software required for setup

Reasons To Buy

Universal Compatibility

An ideal plug and play solution for USB-C based devices (Thunderbolt 4, Thunderbolt 3, USB4 and USB-C Alt Mode) running Windows 10 or later, macOS 11 or later, iPadOS 13 or later and Samsung DeX®.

USB-C Driverless Solution

No need to download, install or update software - this 5Gbps USB-C plug-and-play solution provides 5 connectivity ports.

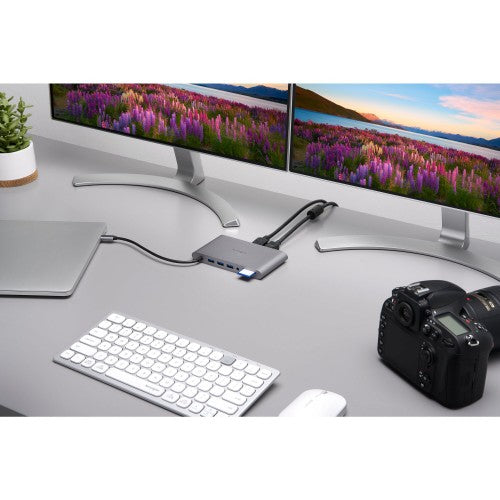

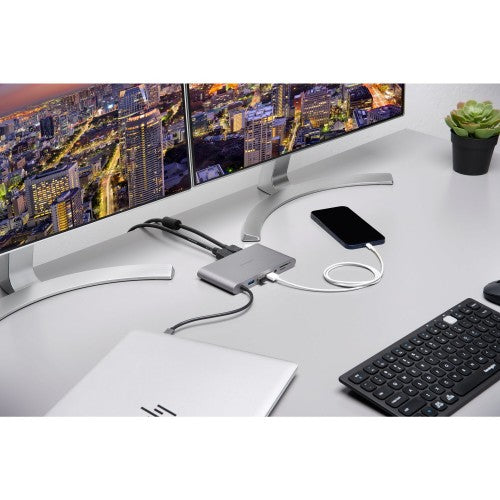

Dual 1080p @ 60Hz Video

Extend visual productivity with the resolution, contrast and colour depth of Ultra HD (Single 4K @ 30Hz) via the DP or HDMI video ports. Dual video output (1080p @ 60Hz) requires you to first connect a DisplayPort monitor, then pick either HDMI or VGA for the second monitor on Windows devices. Single monitor support is available for Samsung DeX® up to 1080p @ 60Hz. iPadOS or macOS supports single 4K @ 30Hz. For macOS, the dual video is only supported in mirror mode (not extended) up to 4K @ 30Hz.

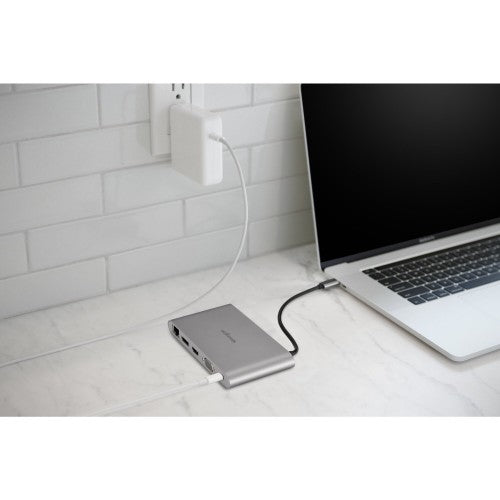

Supports up to 85W Power Pass-Through

Plug your laptop’s USB-C power adapter (85W or greater) into the dock for pass-through power to the laptop (USB-C device must support Power Delivery), or power the dock and connected devices using the laptop’s battery when traveling. Optional 100W Power Adapter sold separately.

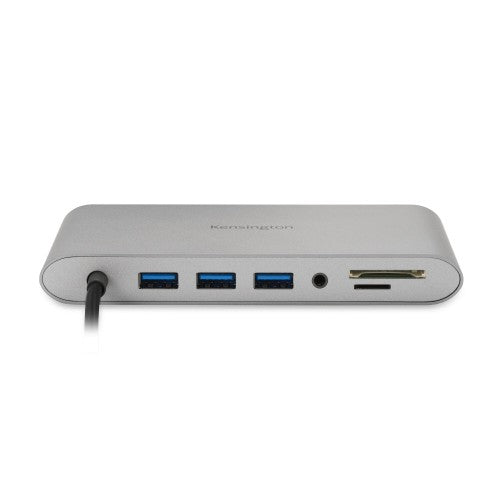

10-in-1 Design with 3 x USB Ports

Extend productivity with 3 x USB-A 3.2 Gen1 ports (5Gbps with 1 x 5V/1.5A and 2 x 5V/0.9A), a dedicated 3.5mm audio jack, UHS-I SD3.0 Micro and SD card slots and 1 x Gigabit Ethernet port.

Sleek, Compact Design

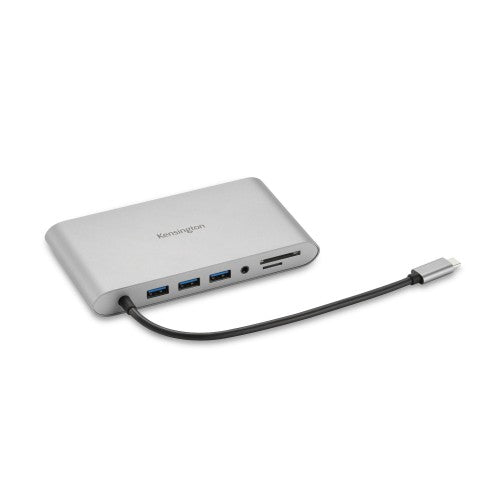

Easily fits into your backpack or carrying case for productivity on the go. Includes a 17cm (6.7") USB-C cable.

Samsung Dex® Compatible

Enjoy a more computer-like experience with your Samsung Galaxy, Note and Tab devices.

Two-Year Limited Warranty

Rest assured knowing you’re covered by Kensington.

Description

Professionals find that they can be more productive when connected to multiple monitors. With more people working between different locations and connecting to different (and often legacy) monitors, a compact, mobile dock that can accommodate these setups is required. The UH1440P USB-C Mobile Dock makes the most of legacy monitors, allowing you to connect up to two DP/HDMI or DP/VGA monitors. Universally compatible, this USB-C driverless dock supports up to 85W power pass-through - ideal if you don’t wish to travel with a bulky power brick. Instead, you can use your laptop’s USB-C power supply to charge your laptop while also powering the dock. The 10-in-1 design includes three USB-A ports, a 3.5mm audio jack, Micro and SD card slots and one Gigabit Ethernet port.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	85 W
DisplayPort version	1.2
HDCP version	1.4
HDCP	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Maximum analog resolution	1920 x 1080 pixels
Number of displays supported	2
Country of origin	China, Vietnam
Product colour	Silver
Card reader integrated	Yes
Plug and Play	Yes
Data transfer rate	5 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
HD type	4K Ultra HD
Housing material	Aluminium
Maximum refresh rate	60 Hz
Technical details
Product colour	Silver
Plug and Play	Yes
Data transfer rate	5 Gbit/s
Compliance certificates	CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI
Products per master (outer) case	10 pc(s)
Master (outer) case width	140 mm
Master (outer) case gross weight	2.44 kg
Master (outer) case length	376 mm
Master (outer) case height	130 mm
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Power
Power source type	USB
USB cable length	0.17 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Mobile operating systems supported	iPadOS
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Weight	200 g
Width	137 mm
Depth	75 mm
Height	17 mm
Package weight	110 g
Package width	124 mm
Package depth	183 mm
Package height	27 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Country of origin	China, Vietnam
Product colour	Silver
Packaging data
Quantity per pack	1 pc(s)
Package weight	110 g
Package width	124 mm
Package depth	183 mm
Package height	27 mm
Packaging content
Quick start guide	Yes
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	140 mm
Master (outer) case gross weight	2.44 kg
Master (outer) case length	376 mm
Master (outer) case height	130 mm
Other features
USB ports quantity	3
Compatible operating systems	Windows 10 or above; macOS 10.15 or above
