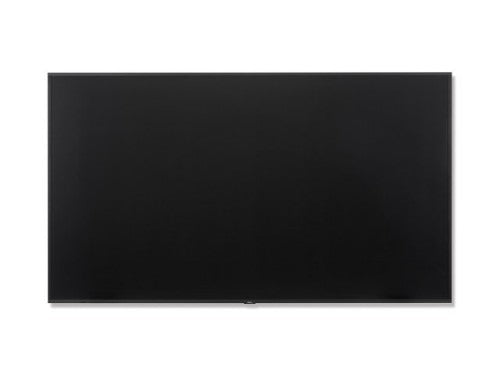

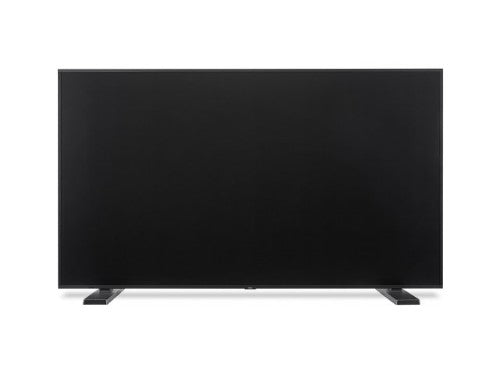

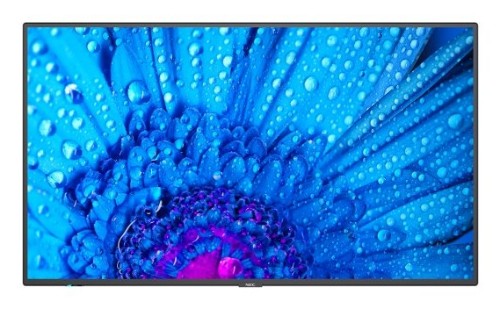

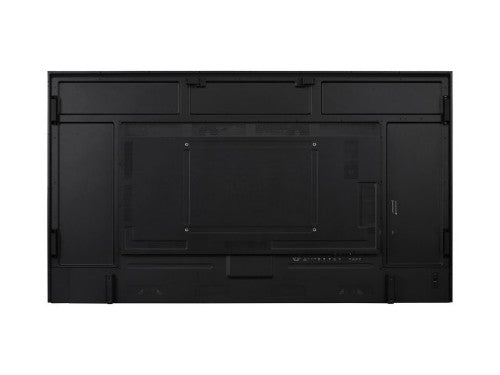

NEC MultiSync M861 Digital signage flat panel 2.18 m (86") LCD 500 cd/m² 4K Ultra HD Black 24/7

86", 3840 x 2160 px, IPS, 500 cd/m2, 8 ms, 100-240 V / 50-60 Hz, 19276 x 1099.1 x 83.2 mm, 47 kg

Key Features

• Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
• Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images
• Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience
• Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures
• Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources

Description

Intuitive professional content delivery
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.

With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.

Specifications

Display
LED backlight	Yes
Panel type	IPS
Display number of colours	1.073 billion colours
LED backlighting type	Direct-LED
Display technology	LCD
Display diagonal	2.18 m (86")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	8000:1
Display diagonal (metric)	217.4 cm
Vertical scan range	23 - 76 Hz
Native aspect ratio	16:9
Horizontal scan range	15 - 135 kHz
Haze rate	28%
Ports & interfaces
DisplayPorts out	1
USB port	Yes
DisplayPorts in	2
DisplayPorts quantity	2
Ethernet LAN	Yes
HDMI ports quantity	3
Ethernet LAN data rates	100 Mbit/s
USB version	2.0
USB ports quantity	3
HDMI input ports quantity	2
HDMI output ports quantity	1
Audio
Number of built-in speakers	2
RMS rated power	10 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel

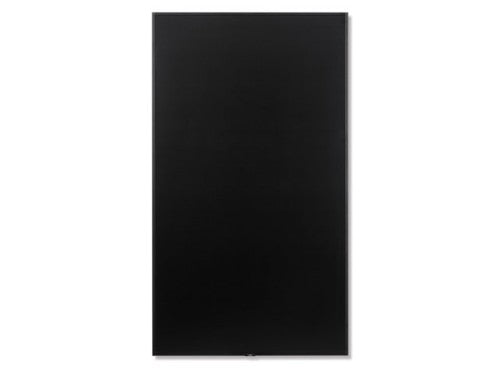

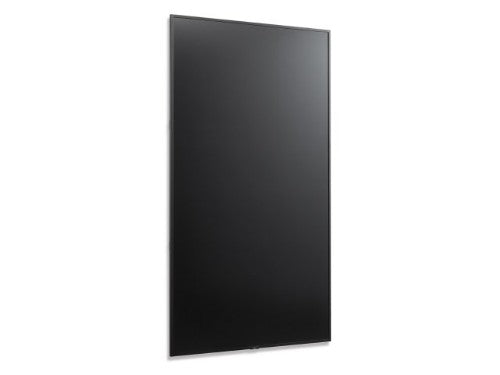

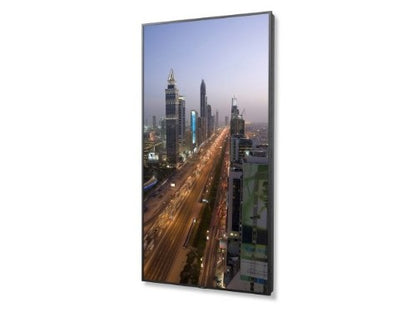

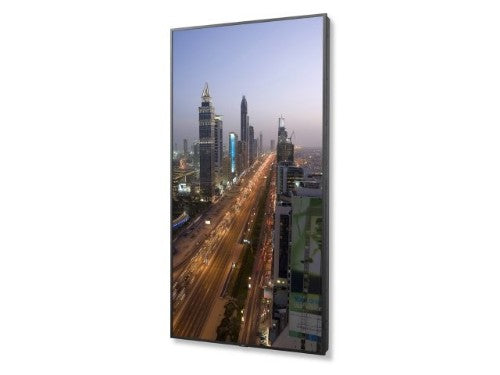

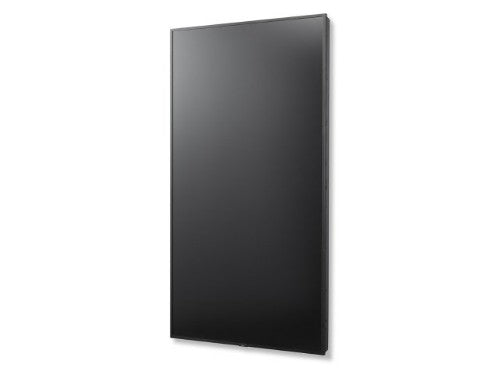

Orientation	Horizontal/Vertical
Bezel width (top)	1.43 cm
Bezel width (side)	1.43 cm
Bezel width (bottom)	1.48 cm
Product colour	Black
Panel mounting interface	600 x 400 mm
VESA mounting	Yes
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
Power
Power consumption (typical)	320 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	193 kWh
Weight & dimensions
Width	1927.6 mm
Depth	83.2 mm
Height	1099.1 mm
Weight	47 kg
Packaging data
Package width	2090 mm
Package depth	225 mm
Package height	1225 mm
Package weight	65.1 kg
Batteries included	Yes
Remote control included	Yes
Cables included	HDMI, Power
Packaging content
Batteries included	Yes
Remote control included	Yes
Cables included	HDMI, Power
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 80%
Technical details
VESA mounting	Yes
Panel type	IPS
DisplayPorts out	1
DisplayPorts in	2
LED backlighting type	Direct-LED
Network
Ethernet LAN	Yes
Ethernet LAN data rates	100 Mbit/s
Other features
Panel type	IPS
DisplayPorts out	1
DisplayPorts in	2
Display technology	LCD
Bezel width (top)	1.43 cm
Bezel width (side)	1.43 cm
Bezel width (bottom)	1.48 cm
