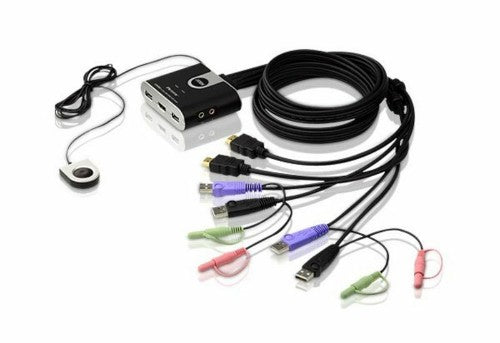

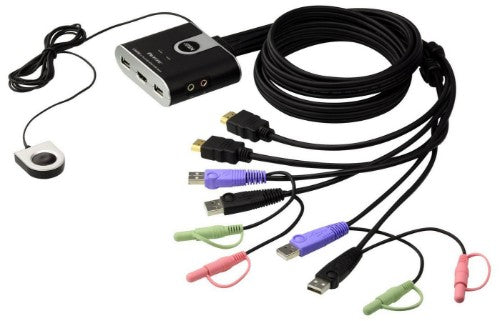

ATEN 2-Port USB HDMI KVM Switch with Audio

2-Port USB HDMI KVM Switch with Audio

Key Features

• Superior video quality - up to 1920 x 1200 and 1080p
• Computer selection via a remote port selector, hotkeys, and USB mouse
• Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
• Built-in all-in-one cables (2 x 1.2 m) and bus-powered design

Description

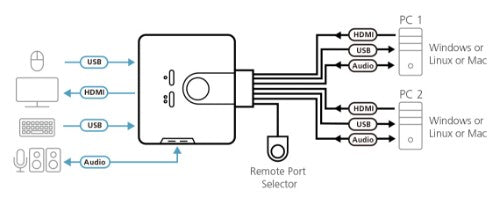

The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
1x User Instructions
2x Hotkey Stickers

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
USB connector type	USB Type-A
Number of microphone inputs	3
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Audio connections	Yes
Headphone outputs	3
HDMI ports quantity	2
USB 2.0 Type-A hub ports quantity	4
Performance
HD type	WUXGA
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Scan interval	3,5,10,20 s
Technical details
Product colour	Black
Rack mounting	No
Scan interval	3,5,10,20 s
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Design
Product colour	Black
Rack mounting	No
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Housing material	Plastic
Display
Built-in display	No
Power
Power source	DC
Power consumption (typical)	0.72 W
Input voltage	5 V
Video
HD type	WUXGA
Video bandwidth	60 Hz
Maximum resolution	1920 x 1200 pixels
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	82.4 mm
Depth	66.5 mm
Height	25.2 mm
Weight	409 g
Package width	70 mm
Package depth	163 mm
Package height	235 mm
Package weight	550 g
Packaging data
Package width	70 mm
Package depth	163 mm
Package height	235 mm
Package weight	550 g
Packaging content
Quick installation guide	Yes
Manual	Yes
Other features
Push button	Yes
Hot keys	Yes
Logistics data
Master (outer) case width	395 mm
Master (outer) case length	405 mm
Master (outer) case height	182 mm
Master (outer) case gross weight	6.13 kg
Products per master (outer) case	10 pc(s)
Master (outer) case net weight	4.09 kg
Harmonized System (HS) code	85176200
