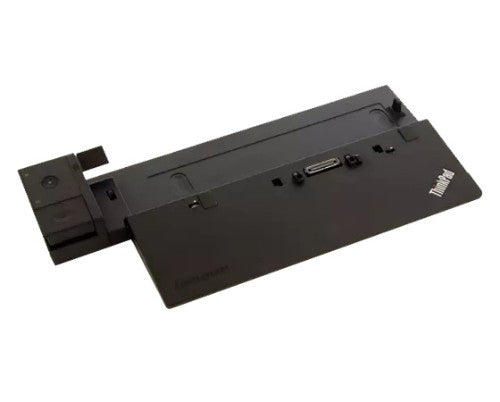

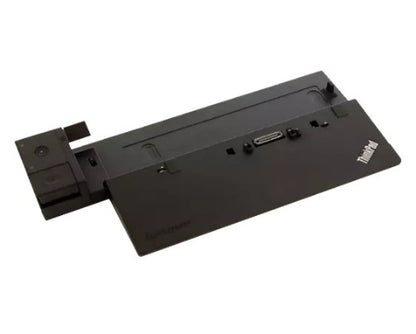

Lenovo ThinkPad 90W Ultra Dock Docking Black

ThinkPad Ultra Dock, 90W, Black

Key Features

• 3 x USB 2.0 and 3 x USB 3.0 with one always-on to charge mobile devices
• 10/1000 Gigabit Ethernet supporting enterprise manageability features
• Supports up to 3 external monitos

Description

With a single eject button the ThinkPad Ultra Dock includes a wide range of video, display and connectivity ports, so you can multi-task and be productive like never before. A variety of USB 2.0 and USB 3.0 ports provide connectivity and power for all your productivity accessories, including an always-on port for mobile device charging any time, even when your laptop's not present. Connect up to three monitors for the ultimate in workplace efficiency, and it's made for large enterprises with no-hassle, peace of mind features like MAC address pass-through and PXE boot, and has a lock slot for physical security. Driver-free, this dock delivers crystal clear video quality thanks to Lenovo technology to make office work convenient, easy, and productive.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	1.4
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	2
DVI-D ports quantity	1
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Docking
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Product colour	Black
Card reader integrated	No
Brand compatibility	Lenovo
Compatibility	ThinkPad
Cable lock slot	Yes
Certification	GOST (Russia),BSMI,EC-DoC,CE,UL,FCC,KC (Korea),UkrSEPRO,CB,NOM,sDOC,AS/NZS DoC,VCCI
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Technical details
Product colour	Black
Brand compatibility	Lenovo
Compatibility	ThinkPad
Cable lock slot	Yes
Storage
Card reader integrated	No
Power
Power consumption (typical)	90 W
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Operational conditions
Operating temperature (T-T)	5 - 43 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	920 g
Width	345 mm
Depth	162.5 mm
Height	55.6 mm
Design
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Product colour	Black
Cable lock slot	Yes
Certification	GOST (Russia),BSMI,EC-DoC,CE,UL,FCC,KC (Korea),UkrSEPRO,CB,NOM,sDOC,AS/NZS DoC,VCCI
Packaging content
Quick start guide	Yes
Certificates
Certification	GOST (Russia),BSMI,EC-DoC,CE,UL,FCC,KC (Korea),UkrSEPRO,CB,NOM,sDOC,AS/NZS DoC,VCCI
