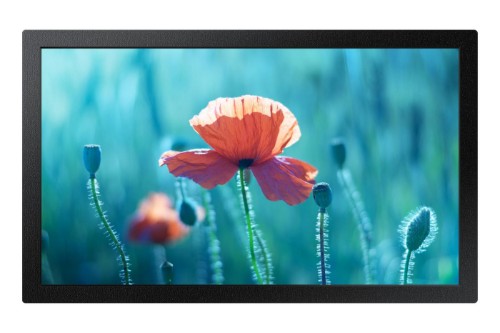

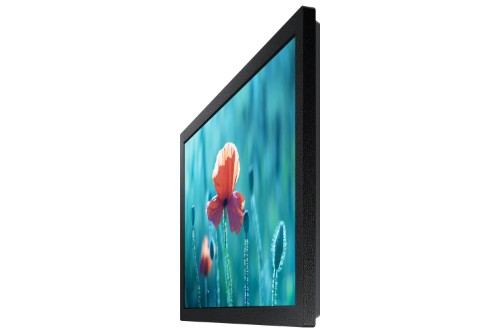

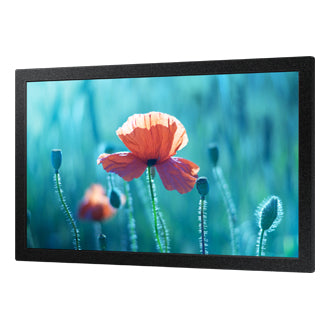

Samsung QB13R-M Digital signage flat panel 33 cm (13") LCD Wi-Fi 500 cd/m² Full HD Black Built-in processor Tizen 4.0 16/7

Samsung QB13R-M, Digital signage flat panel, 33 cm (13"), LCD, 1920 x 1080 pixels, Wi-Fi, 16/7

Description

Samsung QB13R-M. Product design: Digital signage flat panel. Display diagonal: 33 cm (13"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 4.0. Product colour: Black

Specifications

Display
Panel type	ADS
Touchscreen	No
Display technology	LCD
Colour gamut	45%
Display diagonal	33 cm (13")
Display resolution	1920 x 1080 pixels
Display brightness	500 cd/m²
HD type	Full HD
Response time	30 ms
Contrast ratio (typical)	800:1
Contrast ratio (dynamic)	10000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.153 x 0.153 mm
Vertical scan range	48 - 75 Hz
Native aspect ratio	16:9
Horizontal scan range	30 - 81 kHz
Haze rate	25%
Pixel frequency (max)	594 MHz

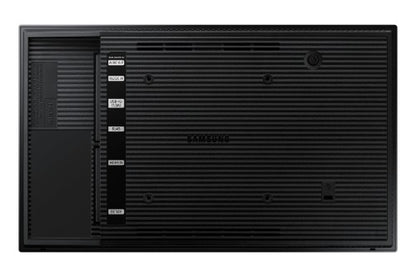

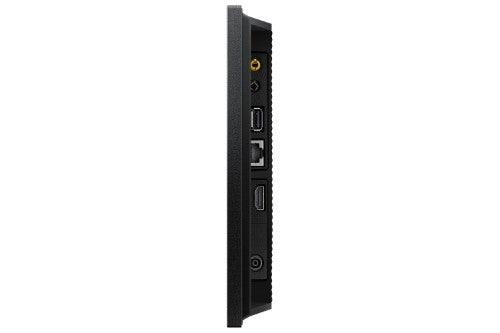

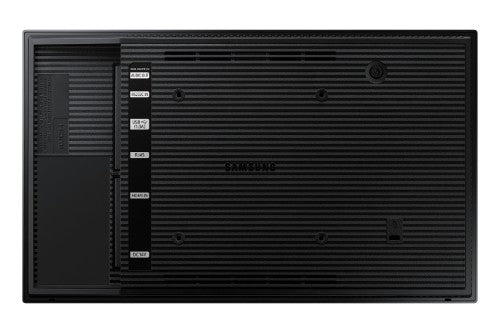

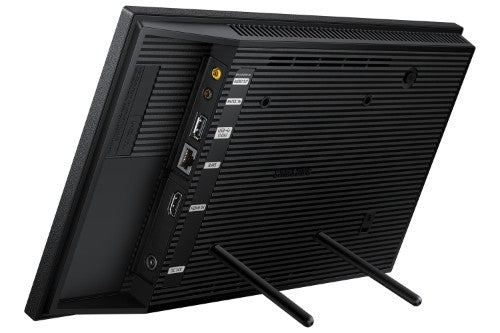

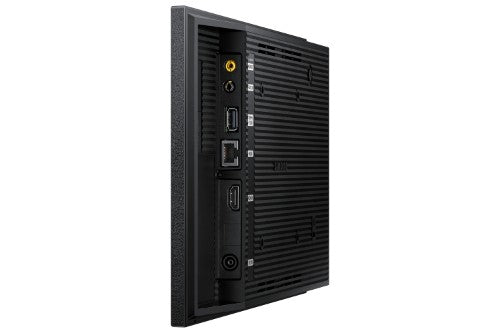

Ports & interfaces
USB port	Yes
HDMI version	1.4
Wi-Fi	Yes
DisplayPorts quantity	0
DC-in jack	Yes
Ethernet LAN	Yes
HDMI ports quantity	1
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
USB ports quantity	1
HDMI input ports quantity	1
Design
Product design	Digital signage flat panel
Bezel width (top)	1.22 cm
Bezel width (side)	1.22 cm
Bezel width (bottom)	1.22 cm
Product colour	Black
Panel mounting interface	100 x 100 mm
Certification	Class B 60950-1, 62368-1
VESA mounting	Yes
Mounting type	Wall
Screen shape	Flat
Bezel colour	Charcoal Black
Performance
Purpose	Universal
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Wi-Fi	Yes
Power
Power consumption (sleep)	0.5 W
Power consumption (typical)	27.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Operating system installed	Tizen 4.0
Built-in processor	Yes
Weight & dimensions
Display width	322 mm
Display depth	28.2 mm
Display height	193.5 mm
Display weight	900 g
Packaging data
Package width	376 mm
Package depth	248 mm
Package height	132 mm
Package weight	1.7 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Certificates
Certification	Class B 60950-1, 62368-1
Technical details
VESA mounting	Yes
Panel type	ADS
RJ-45 input ports	1
RS-232 input ports	1
Audio out (mini jack)	1
Thin Client
Operating system installed	Tizen 4.0
Other features
Panel type	ADS
RJ-45 input ports	1
RS-232 input ports	1
Wi-Fi	Yes
Flash memory	8000 MB
Display technology	LCD
DC-in jack	Yes
Bezel width (top)	1.22 cm
Bezel width (side)	1.22 cm
Bezel width (bottom)	1.22 cm
