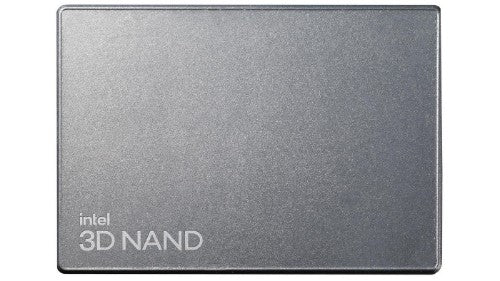

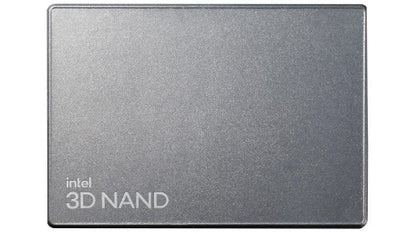

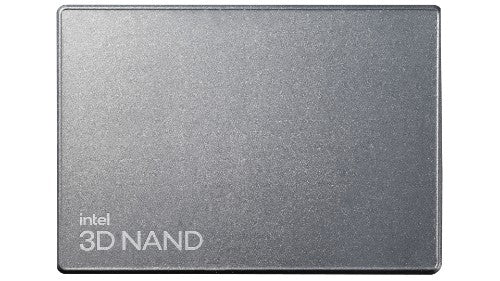

Intel D7 P5520 15.4 TB U.2 PCI Express 4.0 NVMe TLC 3D NAND

Intel SSD D7-P5520 Series (15.36TB, 2.5in PCIe 4.0 x4, 3D4, TLC) Generic No OPAL Single Pack

Description

Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

Specifications

Hard drive
SSD capacity	15.4 TB
Memory type	TLC 3D NAND
Data transmission
Random write (100% span)	200000 IOPS
Random read (100% span)	1000000 IOPS
Security
Security algorithms	256-bit AES
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Features
Interface	PCI Express 4.0
Component for	Server/workstation
NVMe	Yes
End-to-End Data Protection	Yes
SSD capacity	15.4 TB
Security algorithms	256-bit AES
Memory type	TLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
SSD temperature monitoring	Yes
Random write (100% span)	200000 IOPS
Random read (100% span)	1000000 IOPS
Mean time between failures (MTBF)	2000000 h
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
SSD form factor	U.2
Random latency - read (up to)	75 µs
Random latency - write (up to)	20 µs
Sequential latency - read (up to)	10 µs
Sequential latency - write (up to)	13 µs
Use conditions	Server/Enterprise
Harmonized System (HS) code	8523510000
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G162706L1
Power
Power consumption (idle)	5 W
Performance
Interface	PCI Express 4.0
Component for	Server/workstation
NVMe	Yes
End-to-End Data Protection	Yes
SSD capacity	15.4 TB
Security algorithms	256-bit AES
Memory type	TLC 3D NAND
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
SSD temperature monitoring	Yes
Random write (100% span)	200000 IOPS
Random read (100% span)	1000000 IOPS
Mean time between failures (MTBF)	2000000 h
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Design
Component for	Server/workstation
SSD form factor	U.2
Weight & dimensions
Weight	165 g
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70 °C
Operating vibration	2.17 G
Non-operating vibration	3.13 G
SSD temperature monitoring	Yes
Internal memory type	PCIe 4.0 x4, NVMe
Hardware encryption	Yes
Enhanced Power Loss Data Protection technology	Yes
Power consumption (active)	20 W
SSD form factor	U.2
Processor family	Intel SSD D7-P5520
Status	Launched
SSD shock	1000G,0.5ms
SSD endurance rating	28.0 PBW
Sequential writing speed	3700 MB/s
Sequential reading	7100 MB/s
Launch date	Q2'22
Other features
Processor family	Intel SSD D7-P5520
Internal memory type	PCIe 4.0 x4, NVMe
Power consumption (active)	20 W
Status	Launched
SSD shock	1000G,0.5ms
SSD endurance rating	28.0 PBW
Sequential writing speed	3700 MB/s
Sequential reading	7100 MB/s
Launch date	Q2'22
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Logistics data
Harmonized System (HS) code	8523510000
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G162706L1
