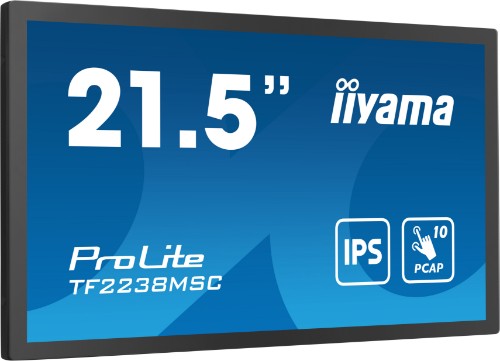

iiyama TF2238MSC-B1 computer monitor 53.3 cm (21") 1920 x 1080 pixels Full HD LED Touchscreen Black

21.5” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing

Key Features

• OPTICAL BONDED PCAP
• OPEN FRAME LFD
• IPS TECHNOLOGY
• SCRATCH RESISTANCE
• SPEAKERS

Reasons To Buy

Optical bonded PCAP

The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.

IPS Technology

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

Open frame LFD

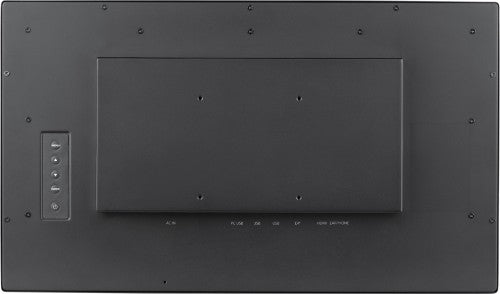

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.

Scratch resistance

Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Speakers

This LED monitor is equipped with two high quality stereo speakers.

Description

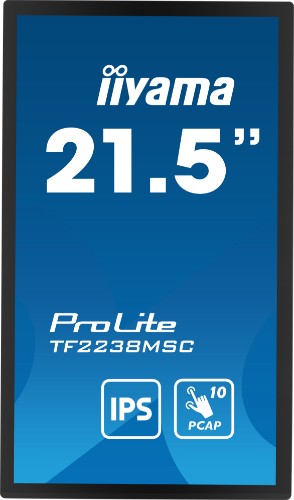

The Full HD (1920x1080) Open Frame monitor ProLite TF2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.

Specifications

Display
HDCP	Yes
Display brightness (typical)	600 cd/m²
Display number of colours	16.7 million colours
Native aspect ratio	16:9
HD type	Full HD
Display technology	LED
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.249 x 0.249 mm
Horizontal scan range	30 - 83 kHz
Viewable size, horizontal	47.9 cm
Viewable size, vertical	26 cm
Display resolution	1920 x 1080 pixels
Response time	5 ms
Display diagonal	53.3 cm (21")
Contrast ratio (typical)	1000:1
Surface hardness	7H
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	IPS
Display diagonal (metric)	54.5 cm
Touchscreen technology	Projected capacitive system
Display brightness	600 cd/m²
Response time measurement type	GTG (Gray to Gray)
Audio
Built-in speaker(s)	Yes
RMS rated power	4 W
Performance
Built-in speaker(s)	Yes
RMS rated power	4 W
Mean time between failures (MTBF)	50000 h
Low Blue Light technology	Yes
Management features
On Screen Display (OSD) languages	Simplified Chinese, German, English, French, Japanese, Polish, Russian
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	4 W
Design
Certification	CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Product colour	Black
Front bezel colour	Black
International Protection (IP) code	IP1X
Glass thickness	3.6 mm
Mean time between failures (MTBF)	50000 h
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB version	3.2 Gen 1 (3.1 Gen 1)
DVI port	No
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
USB Touch port	Yes
Wi-Fi	No
Ethernet LAN	No
Technical details
Placement supported	Indoor
Mean time between failures (MTBF)	50000 h
Product colour	Black
Front bezel colour	Black
Built-in processor	No
Power supply type	Internal
Active display area (W x H)	479 x 260 mm
Weight (with stand)	5.1 kg
Surface hardness	7H
Touchscreen	Yes
Number of simultaneous touchpoints	10
Network
Wi-Fi	No
Ethernet LAN	No
Ergonomics
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	Simplified Chinese, German, English, French, Japanese, Polish, Russian
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	17 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Weight & dimensions
Width (with stand)	512.5 mm
Depth (with stand)	47 mm
Height (with stand)	300 mm
Bezel width (side)	1.7 cm
Bezel width (top)	1.98 cm
Bezel width (bottom)	1.98 cm
Weight (with stand)	5.1 kg
Package width	572 mm
Package depth	572 mm
Package height	364 mm
Package weight	6.4 kg
Packaging data
Package width	572 mm
Package depth	572 mm
Package height	364 mm
Package weight	6.4 kg
Quick start guide	Yes
Cables included	HDMI, Power, USB
Packaging content
Quick start guide	Yes
Cables included	HDMI, Power, USB
Other features
Built-in processor	No
Active display area (W x H)	479 x 260 mm
USB ports quantity	2
Placement supported	Indoor
Mean time between failures (MTBF)	50000 h
Certification	CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
International Protection (IP) code	IP1X
Quick start guide	Yes
Surface hardness	7H
Power supply type	Internal
Ethernet LAN	No
Touchscreen	Yes
Number of simultaneous touchpoints	10
Front bezel colour	Black
Certificates
Certification	CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
