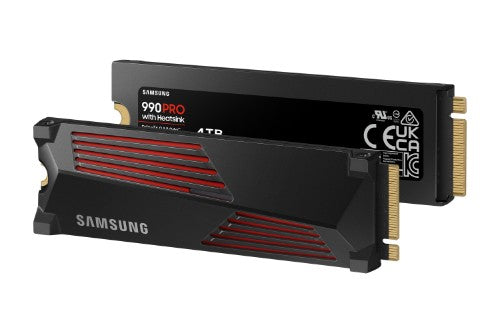

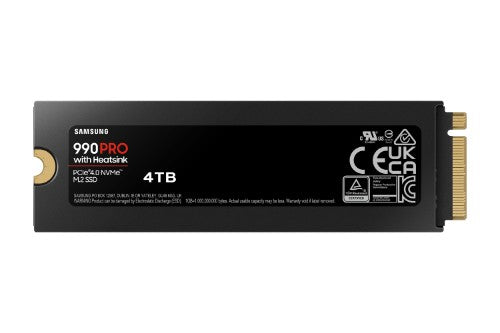

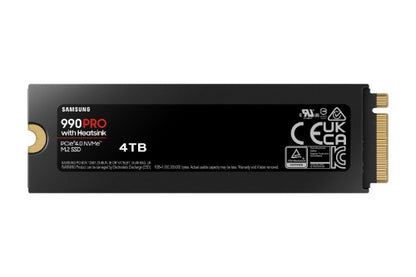

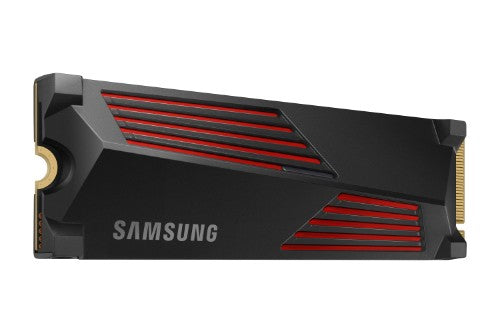

Samsung 990 Pro 4 TB M.2 PCI Express 4.0 NVMe V-NAND TLC

4 TB, V-NAND TLC, PCIe Gen 4.0 x4, NVMe 2.0, M.2 (2280), 28 g

Key Features

• Samsung NVMe SSD powered by in-house designed controller
• Up to 7,450 / 6900 MB/s sequential read/write speed
• Power efficient SSD, reliable thermal control, with heatsink

Description

Blistering speed, endless victory
Experience long-lasting fast performance of PCIe® 4.0. The in-house controller's smart heat control delivers supreme power efficiency while maintaining speed and performance to help keep you on the top of your game.

PCIe 4.0 speed maximized
Huge speed boost. Up to 40% and 55% faster random read/write speeds than 980 PRO - up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.02. Fly high in gaming, video and 3D editing, data analysis, and more.

Incredible power efficiency
More power-efficient performance. Higher performance usually consumes more power. But, 990 PRO uses less power with over 50% improved performance per Watt over 980 PRO3. This low-power design delivers outstanding PCIe® 4.0 performance possible with optimal power efficiency.

Smart thermal solution

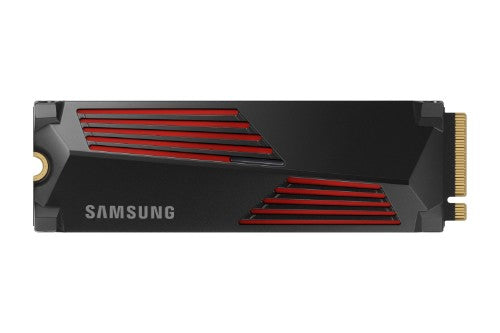

Sink that heat. The slim heatsink helps dissipates heat to prevent performance drops from overheating. Get stable heat control, and minimal fan noise for heavy-graphic gaming. The thin body is compatible with PlayStation® 5, desktops, and laptops meeting the PCI-SIG® D8 standard.

The champion maker

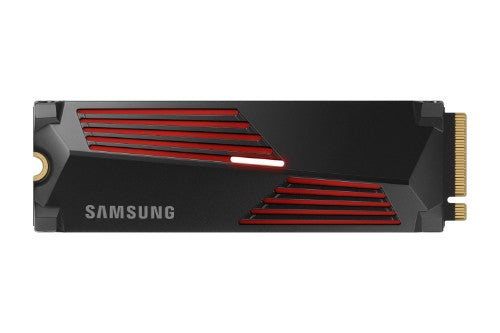

An amazing gameplay experience. Huge improvement in random performance enables faster loads for ultimate gaming realism on PS5 and Direct Storage PC games. The heatsink's futuristic design with RGB lights adds style to heat control.

Samsung Magician software
Harness the full power of 990 PRO. Samsung Magician software's user-friendly suite of optimization tools always gets you the best performance out of your Samsung SSD6. Protect data, get updates, monitor drive health, and set up LED color combinations. It's your personal SSD toolkit.

World's No. 1 Flash Memory Seller*
Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.

Specifications

Hard drive
SSD capacity	4 TB
Memory type	V-NAND TLC
Data transmission
Read speed	7450 MB/s
Write speed	6900 MB/s
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	1500000 h
Features
Interface	PCI Express 4.0
Component for	PC/Game console
NVMe	Yes
NVMe version	2.0
SSD capacity	4 TB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	7450 MB/s
TRIM support	Yes
Write speed	6900 MB/s
Memory type	V-NAND TLC
Mean time between failures (MTBF)	1500000 h
Hardware encryption	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Power
Power consumption (average)	5.4 W
Power consumption (max)	7.8 W
Operating voltage	3.3 V
Performance
Interface	PCI Express 4.0
Component for	PC/Game console
NVMe	Yes
NVMe version	2.0
SSD capacity	4 TB
Security algorithms	256-bit AES
S.M.A.R.T. support	Yes
Read speed	7450 MB/s
TRIM support	Yes
Write speed	6900 MB/s
Memory type	V-NAND TLC
Mean time between failures (MTBF)	1500000 h
Hardware encryption	Yes
Design
Component for	PC/Game console
SSD form factor	M.2
Weight & dimensions
Width	25 mm
Weight	28 g
Height	8.88 mm
Depth	80.2 mm
Package type	Hanging box
Packaging data
Package type	Hanging box
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
Technical details
Interface	PCI Express 4.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
Operating shock	1500 G
Hardware encryption	Yes
SSD form factor	M.2
Warranty period	5 year(s)
Other features
Warranty period	5 year(s)
