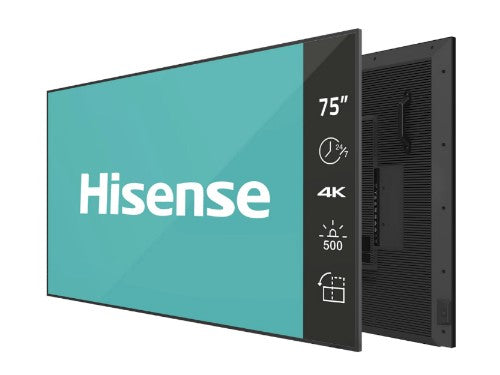

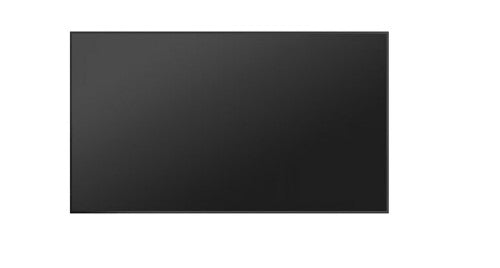

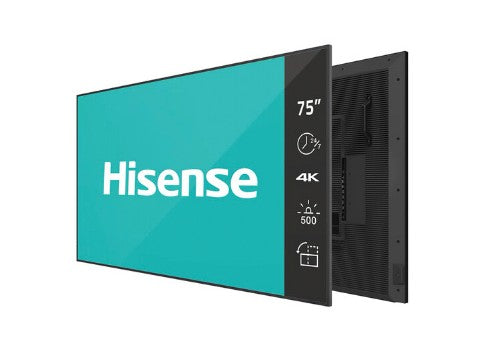

Hisense 75DM66D Signage Display 190.5 cm (75") LED Wi-Fi 500 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7

75” 4K UHD Digital Signage Display - 24/7 Operation

Description

Hisense Digital Signage is designed to serve multiple business applications: public spaces, transportation systems, museums, stadiums, retail stores, hotels, restaurants and corporate buildings. With DM series, it delivers powerful engagement from any devices, boost business with real-time updates, data-driven insights and visually appealing content, manage and control devices at anytime from anywhere, and simplify the cable management by conecting a series of displays to a single video output.

Smart Power

A built-in ambient light sensor automatically adjusts the screen brightness according to current light conditions. This display is Energy Star certified to help you protect the environment and save costs.

Wireless Screen Sharing

Everthing you need for screen sharing solutions. ScreenShare is a in house built-in screen sharing application that enables the screen sharing wirelessly and seemlessly from anywhere and from any devices.

Mobile Device Management

VisionInfo is a cloud-based device managemet software that offers end-to-end device management and control through all devices. It is a powerful, effective and easy to use tool to control your devices at anytime from anywhere.

Conformal Coating

Electronic components are completely protected from the environmental factors like moisture, dust, salt, chemicals, temperature changes and mechanical abrasion.

Clean Cable Solution

The integrated cable holder hides cables and keeps the back of the display tidy and uncluttered. This reduces visual distractions that can get in the way of your viewing experience.

Anti-glare Coating

All displays offer higher haze panels that help reduce reflections without adversley affecting the image quality. Anti-glare coatings can also improve the perceived contrast of the display.

Narrow Bezel

With a narrow bezel and symmetrical design, the display can be easily integrated into any environment. All terminals face outwards, ensuring the display hangs flush against the wall which saves space and facilitates installation.

Android 11

Android 11 works to keep your data safe and secure. With Android 11, you have more control over what information apps can and can’t access. Devices that work better together, enhance your messaging, audio and multitasking experiences.

Quick Installation and Easy Maintenance

Full front installation, maintenance, save the installation space. Also supporting multiple installations, wall-mounting, hanging, which can meet the demands of various environments.

Specifications

Display
Panel type	ADS
LED backlighting type	Direct-LED
Display technology	LED
Display diagonal	190.5 cm (75")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal (metric)	189 cm
Native aspect ratio	16:9
Rated lifetime	50000 h
Native refresh rate	60 Hz
Haze rate	25%
Ports & interfaces
USB connector type	USB Type-A
USB port	Yes
DisplayPorts in	1
HDMI version	2.0
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
DisplayPorts quantity	1
Ethernet LAN	Yes
HDMI ports quantity	3
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	2
HDMI input ports quantity	2
HDMI output ports quantity	1
USB 2.0 Type-B ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Orientation	Horizontal/Vertical
Product colour	Black
Panel mounting interface	600 x 400 mm
Certification	CCC/CB/CE/FCC/cTUVus/UKCA/CEC/ERP
VESA mounting	Yes
Screen shape	Flat
Performance
Purpose	Commercial
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X
On Screen Display (OSD) languages	Arabic, Simplified Chinese, German, English, Spanish, French, Indonesian, Italian, Norwegian, Polish, Russian, Swedish, Thai
Wi-Fi	Yes
Power
Power consumption (max)	265 W
Power consumption (typical)	175 W
Power consumption (standby)	0.2 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	254 kWh
Energy consumption (HDR) per 1000 hours	254 kWh
Computer system
Processor cores	4
Processor family	ARM Cortex
Operating system installed	Android 11
Internal memory	3 GB
Internal storage capacity	32 GB
Processor manufacturer	ARM
Built-in processor	Yes
On-board graphics card model	ARM Mali-G52
Processor architecture	ARM Cortex-A55
Weight & dimensions
Display width	1675.3 mm
Display depth	63.7 mm
Display height	955.1 mm
Display weight	29 kg
Packaging data
Package width	1850 mm
Package depth	211 mm
Package height	1150 mm
Package weight	41.6 kg
Batteries included	Yes
Remote control included	Yes
Cables included	RS-232
Packaging content
Batteries included	Yes
Remote control included	Yes
Cables included	RS-232
Power adapter included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Certificates
Certification	CCC/CB/CE/FCC/cTUVus/UKCA/CEC/ERP
Technical details
VESA mounting	Yes
USB connector type	USB Type-A
Power supply type	Internal
Panel type	ADS
DisplayPorts in	1
LED backlighting type	Direct-LED
Sustainability certificates	ENERGY STAR
Network
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN	Yes
Thin Client
Processor family	ARM Cortex
Operating system installed	Android 11
Internal memory	3 GB
Internal storage capacity	32 GB
Other features
USB connector type	USB Type-A
Power supply type	Internal
Panel type	ADS
DisplayPorts in	1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Power consumption (max)	265 W
Display technology	LED
Energy efficiency scale	A to G
