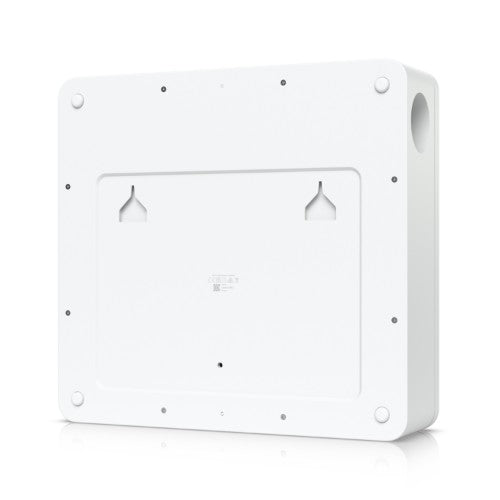

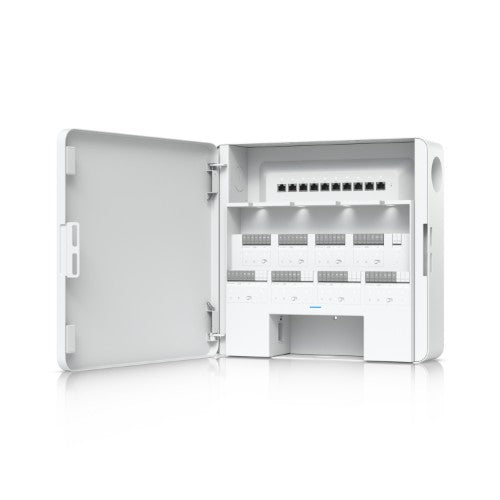

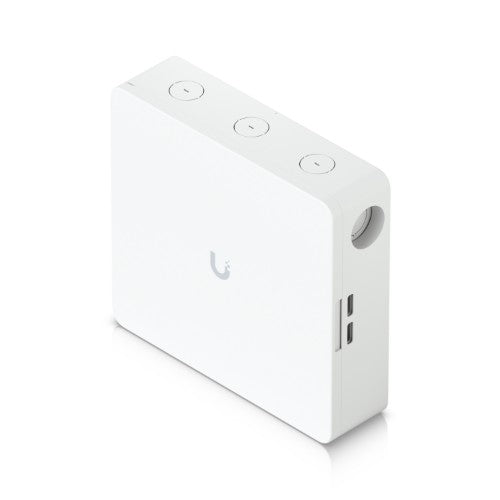

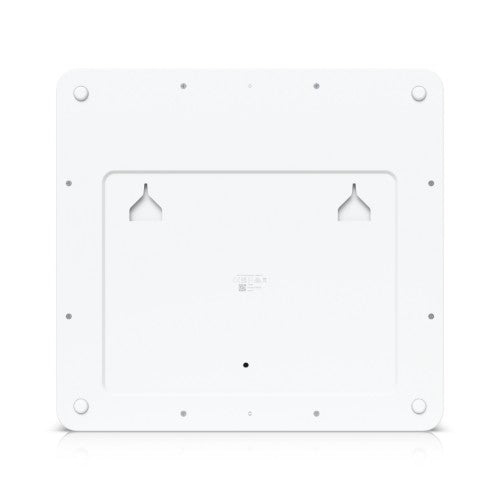

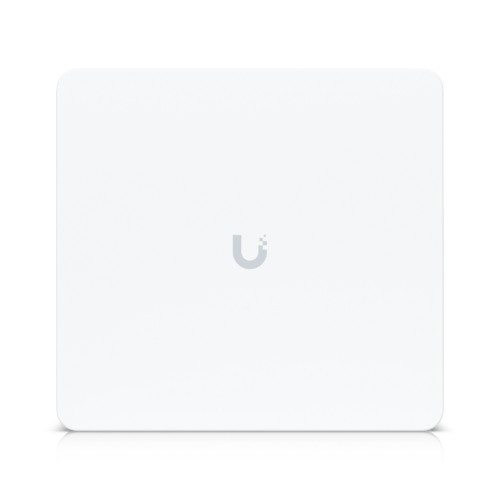

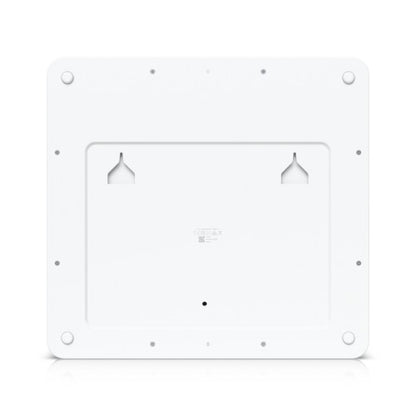

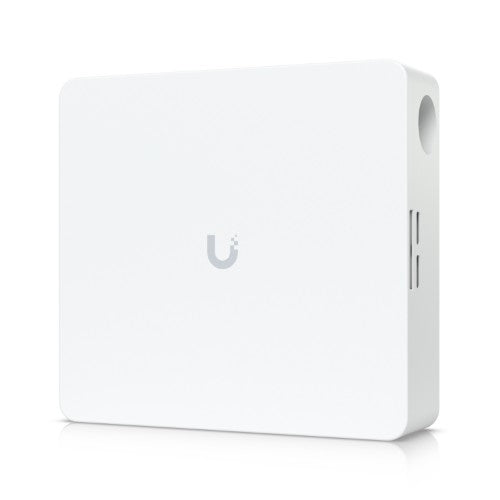

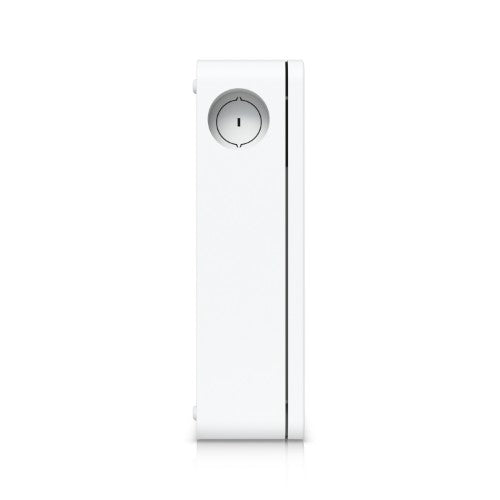

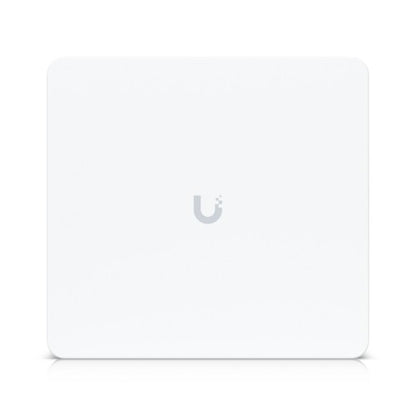

Ubiquiti EAH-8 security door controller Cabinet 8 door(s) Ethernet

Enterprise Access Hub, 10x 10/100/1000 Base-T, AC/DC, internal, 240W, 8x PoE (Pins 1, 2+; 3, 6-), 379 x 355 x 105 mm

Key Features

• (8) Lock terminals (12V or Dry)
• (8+8) Inputs for request-to-exit devices and door position sensors
• (8) PoE ports for Access Readers
• (4) AUX terminals for chimes, sirens, or door openers
• (1) Battery backup input (32–48V)

Description

Enterprise-grade access hub with entry and exit control to eight doors and battery backup support.

Specifications

Technical details
Maximum number of doors	8 door(s)
Case design	Cabinet
Interface	Ethernet
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC)
Ports & interfaces
Ethernet LAN (RJ-45) ports	10
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	355 mm
Weight	9.1 kg
Height	105 mm
Depth	379 mm
