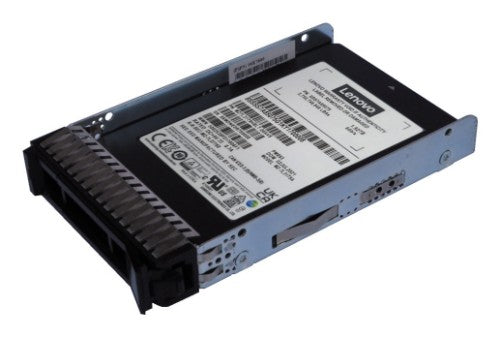

Lenovo 4XB7A90875 internal solid state drive 1.92 TB 2.5" Serial ATA III V-NAND TLC

ThinkSystem 2.5" VA 1.92TB Read Intensive SATA 6Gb HS SSD v2

Description

The ThinkSystem Vendor Agnostic Read Intensive SATA SSDs are general-purpose SSDs with an average endurance of 1 drive write per day. Vendor Agnostic SSDs are non-vendor-specific drives which can streamline and simplify the ordering and delivery of SATA SSDs. The drives offered in the Vendor Agnostic SSD program consists of SSDs that are readily available, ensuring the shortest supply lead time.

Specifications

Hard drive
SSD capacity	1.92 TB
Memory type	V-NAND TLC
Data transmission
Random write (4KB)	28000 IOPS
Random read (4KB)	82000 IOPS
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Features
Interface	Serial ATA III
Component for	Server
NVMe	No
SSD capacity	1.92 TB
S.M.A.R.T. support	Yes
Memory type	V-NAND TLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	28000 IOPS
Random read (4KB)	82000 IOPS
Mean time between failures (MTBF)	2000000 h
Certification	UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI)
SSD form factor	2.5"
H/W PLP function	Yes
Drive writes per day (DWPD)	1
Certificates
Certification	UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI)
Performance
Interface	Serial ATA III
Component for	Server
NVMe	No
SSD capacity	1.92 TB
S.M.A.R.T. support	Yes
Memory type	V-NAND TLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	28000 IOPS
Random read (4KB)	82000 IOPS
Mean time between failures (MTBF)	2000000 h
Design
Component for	Server
Certification	UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI)
SSD form factor	2.5"
Weight & dimensions
Width	70 mm
Height	7 mm
Depth	100 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1500 G
Non-operating vibration	20 G
Maximum operating altitude	3050 m
Technical details
Interface	Serial ATA III
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1500 G
Non-operating vibration	20 G
Maximum operating altitude	3050 m
SSD form factor	2.5"
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
