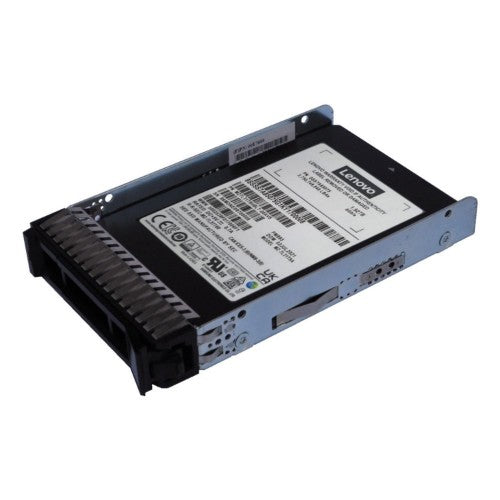

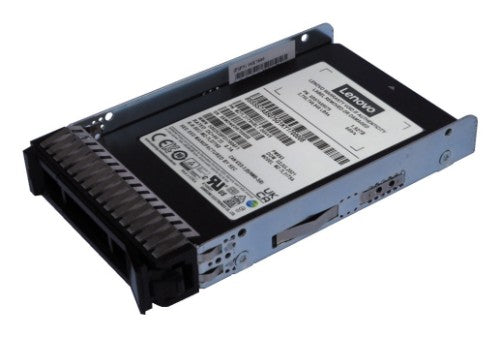

Lenovo 4XB7A90884 internal solid state drive 480 GB 2.5" Serial ATA III V-NAND TLC

ThinkSystem 2.5" VA 480GB Mixed Use SATA 6Gb HS SSD v2

Description

The ThinkSystem Vendor Agnostic Mixed Use SATA SSDs are general-purpose SSDs with an endurance of 3 drive writes per day. Vendor Agnostic SSDs are non-vendor-specific drives which can streamline and simplify the ordering and delivery of SATA SSDs. The drives offered in the Vendor Agnostic SSD program consists of SSDs that are readily available, ensuring the shortest supply lead time.

This product guide provides essential presales information to understand the Vendor Agnostic SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.

Specifications

Hard drive
SSD capacity	480 GB
Memory type	V-NAND TLC
Data transmission
Random write (4KB)	43000 IOPS
Random read (4KB)	76500 IOPS
Data transfer rate	6 Gbit/s
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Features
Interface	Serial ATA III
Component for	Server/workstation
NVMe	No
End-to-End Data Protection	Yes
SSD capacity	480 GB
S.M.A.R.T. support	Yes
Memory type	V-NAND TLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	43000 IOPS
Random read (4KB)	76500 IOPS
Mean time between failures (MTBF)	2000000 h
Hardware encryption	No
Data transfer rate	6 Gbit/s
Certification	UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI)
SSD form factor	2.5"
H/W PLP function	Yes
Certificates
Certification	UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI)
Performance
Interface	Serial ATA III
Component for	Server/workstation
NVMe	No
End-to-End Data Protection	Yes
SSD capacity	480 GB
S.M.A.R.T. support	Yes
Memory type	V-NAND TLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	43000 IOPS
Random read (4KB)	76500 IOPS
Mean time between failures (MTBF)	2000000 h
Hardware encryption	No
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
Certification	UL TUV FCC CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI)
SSD form factor	2.5"
Weight & dimensions
Width	70 mm
Height	7 mm
Depth	100 mm
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1.5 G
Non-operating vibration	20 G
Maximum operating altitude	3050 m
Technical details
Interface	Serial ATA III
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating shock	1.5 G
Non-operating vibration	20 G
Maximum operating altitude	3050 m
Hardware encryption	No
SSD form factor	2.5"
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
