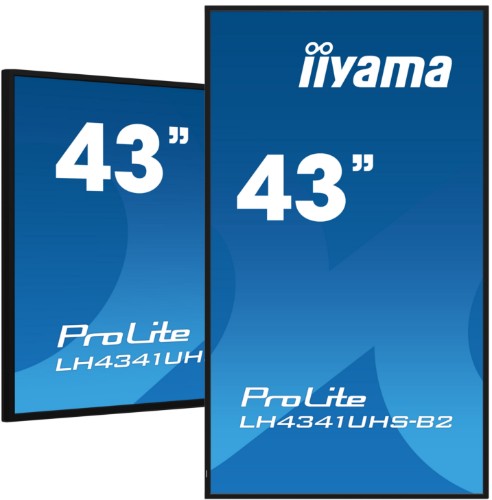

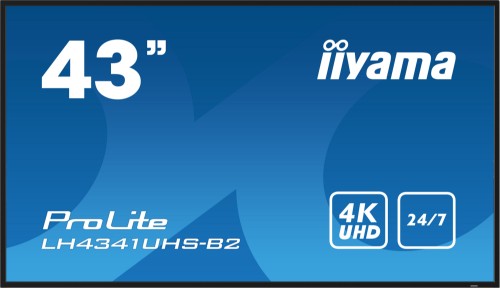

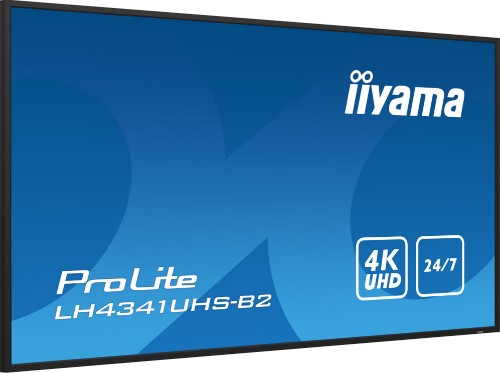

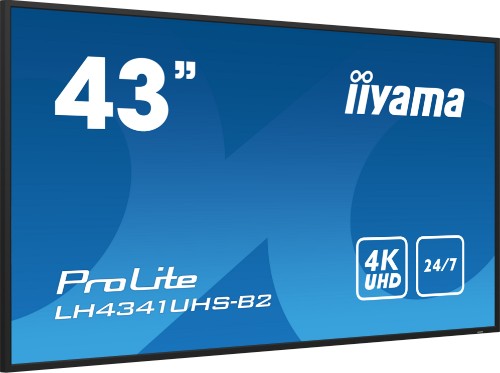

iiyama LH4341UHS-B2 Signage Display 108 cm (42.5") LCD 500 cd/m² 4K Ultra HD Built-in processor Android 8.0 24/7

43" Professional Digital Signage display with 4K UHD resolution and 24/7 operating time

Reasons To Buy

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

LAN Control

LAN control enables making adjustments in the display OSD menu through your network (software not included).

IPS

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

24/7

24/7 displays are designed for a continuous operation.

Media player (in pivot not supported)

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

Description

Set in a slim bezel, the iiyama LH4341UHS is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation. This 500cd/m² high brightness IPS panel with 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

Specifications

Display
Panel type	IPS
Display number of colours	1.07 billion colours
Touchscreen	No
Active display area (W x H)	941.2 x 529.4 mm
Display technology	LCD
Display diagonal	108 cm (42.5")
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.245 x 0.245 mm
Display diagonal (metric)	108 cm
Native aspect ratio	16:9
Horizontal scan range	30 - 80 kHz
Native refresh rate	60 Hz
Haze rate	1%
Ports & interfaces
Remote (IR) output	1
Remote (IR) input	1
USB port	Yes
RS-232C	Yes
Wi-Fi	No
PC Audio in	Yes
Ethernet LAN	Yes
HDMI ports quantity	3
DVI port	Yes
VGA (D-Sub) input ports	0
Ethernet LAN (RJ-45) ports	1
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	1
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Placement supported	Indoor

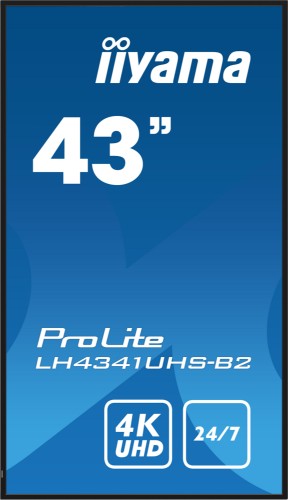

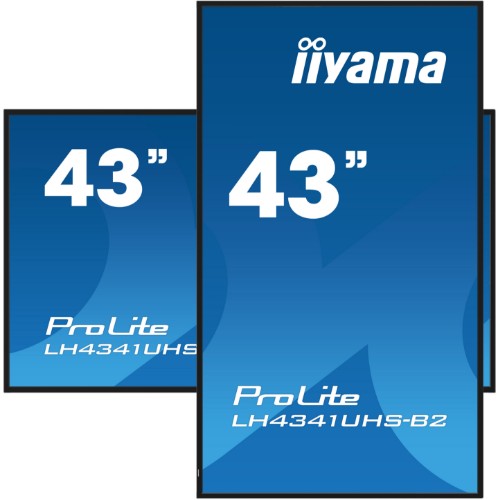

Orientation	Horizontal/Vertical
Housing material	Metal
Bezel width (top)	1.4 cm
Bezel width (side)	1.35 cm
Bezel width (bottom)	1.4 cm
Panel mounting interface	200 x 200 mm
Certification	CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
VESA mounting	Yes
Bezel colour	Black
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
On Screen Display (OSD)	Yes
Number of OSD languages	11
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (off)	0.3 W
Power consumption (typical)	107 W
Power consumption (standby)	0.4 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Computer system
Computer system	Yes
Processor model	V810
Operating system installed	Android 8.0
Internal memory	2 GB
Internal storage capacity	16 GB
Built-in processor	Yes
Weight & dimensions
Width	1929 mm
Depth	69.5 mm
Height	1100 mm
Weight	63.8 kg
Display width	968 mm
Display depth	54 mm
Display height	557.5 mm
Display weight	8.9 kg
Packaging data
Package width	1075 mm
Package depth	1075 mm
Package height	683 mm
Quick start guide	Yes
Batteries included	Yes
Remote control included	Yes
Cables included	AC, HDMI, RS-232
Packaging content
Quick start guide	Yes
Batteries included	Yes
Remote control included	Yes
Cables included	AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Certificates
Certification	CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Technical details
VESA mounting	Yes
Power supply type	Internal
Panel type	IPS
Compliance certificates	RoHS
Network
Wi-Fi	No
Ethernet LAN	Yes
Thin Client
Processor model	V810
Operating system installed	Android 8.0
Internal memory	2 GB
Internal storage capacity	16 GB
Logistics data
Harmonized System (HS) code	85285210
Features
Harmonized System (HS) code	85285210
Other features
Power supply type	Internal
Panel type	IPS
Housing material	Metal
Wi-Fi	No
Mean time between failures (MTBF)	50000 h
Display technology	LCD
Bezel width (top)	1.4 cm
Bezel width (side)	1.35 cm
Bezel width (bottom)	1.4 cm
Quick start guide	Yes
Energy efficiency scale	A to G
