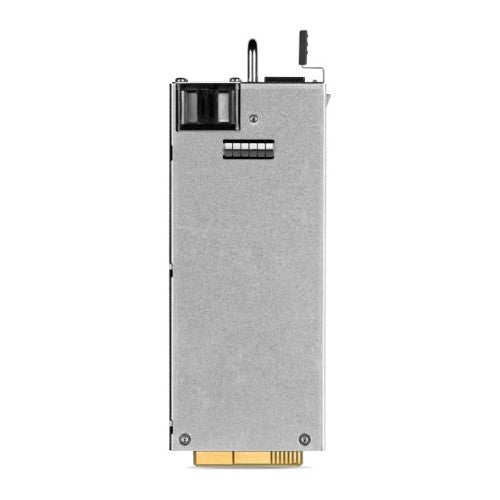

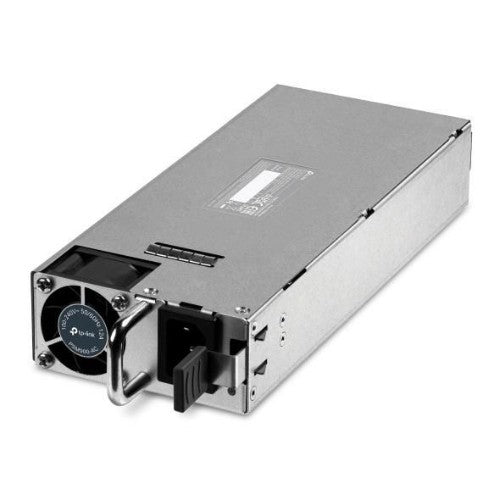

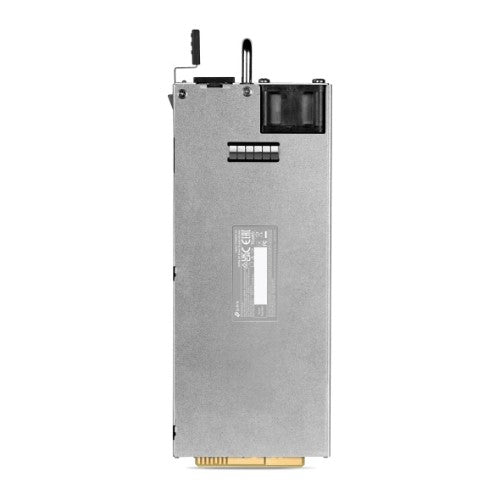

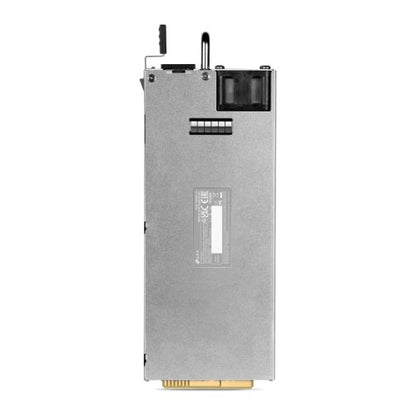

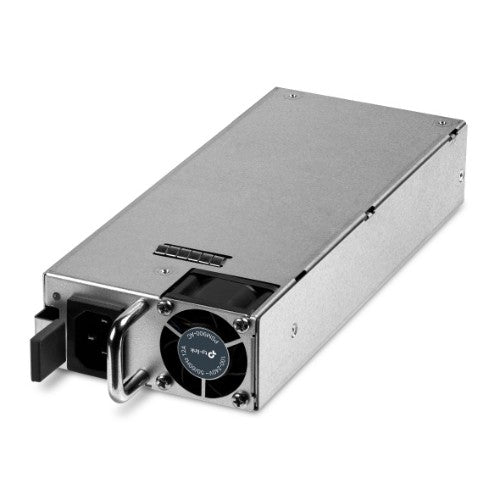

TP-Link PSM900-AC power supply unit 900 W Metallic

900 W, 53.5 V DC, 259.5 x 95.8 x 40.1 mm

Key Features

• Hot swappable
• Output over-voltage/under-voltage/short circuit/over-current protection
• Applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models

Description

The TP-Link Power Supply Module PSM900-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 900 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.

Specifications

Performance
Mounting type	Rack mounting
Compatible products	SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y
Power
Total power	900 W
Maximum input current (@220V)	10 A
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Maximum input current (@110V)	12 A
Power protection features	Over current, Over voltage, Short circuit, Under voltage
Design
Mounting type	Rack mounting
Product colour	Metallic
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	95.8 mm
Depth	259.5 mm
Height	40.1 mm
Logistics data
Quantity per pack	1 pc(s)
Other features
Mounting type	Rack mounting
