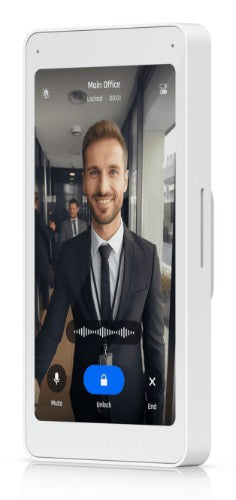

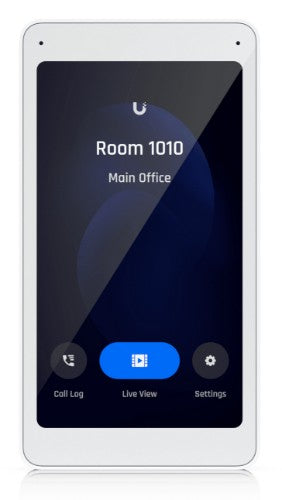

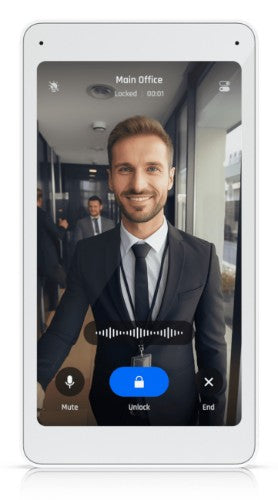

Ubiquiti Intercom Viewer Display

5", 720 x 1280p, 9:16, Touch, 10/100 Mbps RJ-45, PoE, 5W, 48V DC, 168g

Key Features

• Two-way audio
• Instant live view
• 5" touch display
• Connect and power using a PoE switch

Description

Display that pairs with the Access Intercom for visitor screening and remote access control, to mount in multiple locations throughout your building.

Specifications

Technical details
Brand compatibility	Ubiquiti
Product colour	White
Material	Glass, Polycarbonate (PC)
Certification	CE, FCC, IC
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC)
Features
Product type	Display
Mounting type	Wall
Operating temperature (T-T)	-10 - 40 °C
Touchscreen	Yes
Display resolution	720 x 1280 pixels
Display brightness	300 cd/m²
Brand compatibility	Ubiquiti
Product colour	White
Material	Glass, Polycarbonate (PC)
Certification	CE, FCC, IC
Display diagonal	12.7 cm (5")
Built-in microphone	Yes
Built-in speaker(s)	Yes
Operating relative humidity (H-H)	5 - 95%
Operational conditions
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	72 mm
Depth	31.8 mm
Height	135 mm
Weight	168 g
Packaging data
Quantity per pack	1 pc(s)

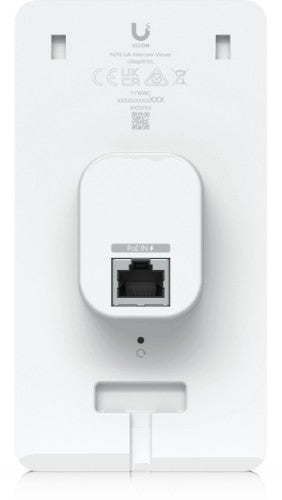

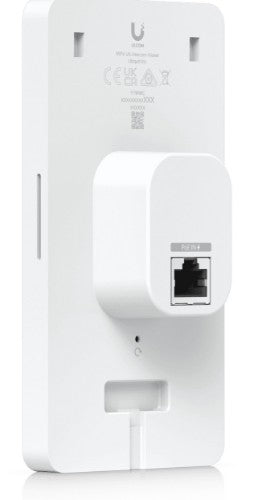

Ports & interfaces
RJ-45 ports quantity	1
Ethernet LAN data rates	10,100 Mbit/s
Power
Power over Ethernet (PoE)	Yes
DC input voltage	48 V
Power consumption (typical)	5 W
