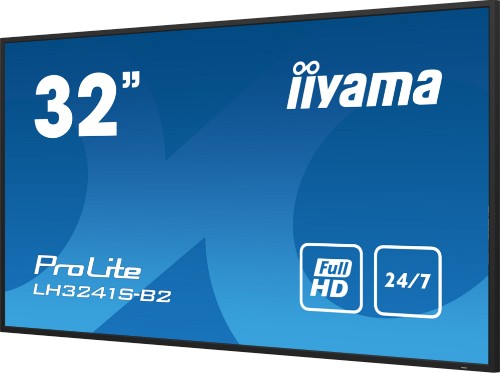

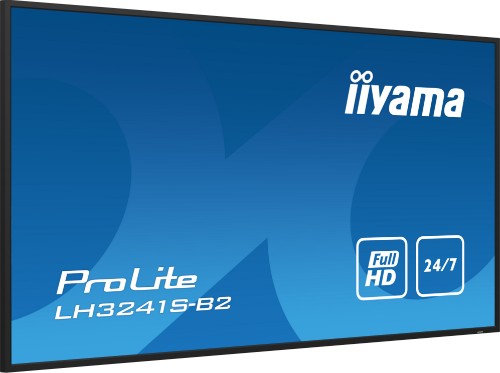

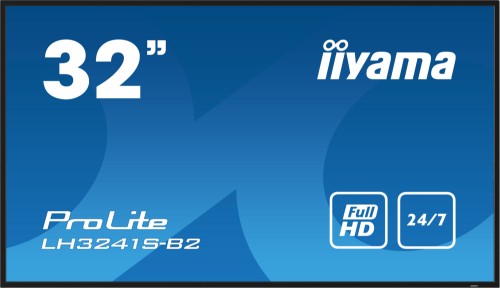

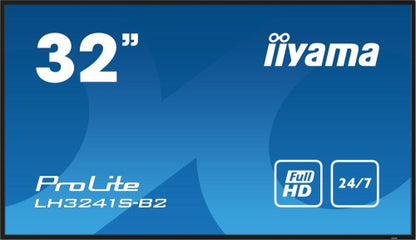

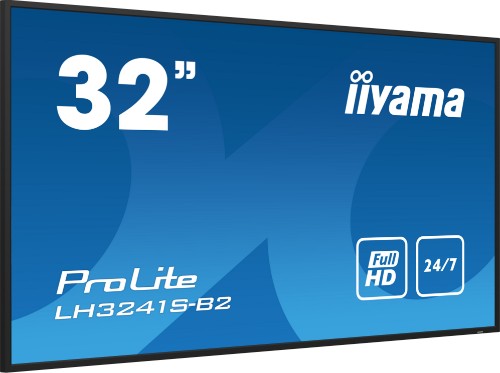

iiyama LH3241S-B2 Signage Display Kiosk design 80 cm (31.5") LED 350 cd/m² Full HD Black 24/7

32" Full HD professional large format display with USB media playback

Reasons To Buy

LAN Control

LAN control enables making adjustments in the display OSD menu through your network (software not included).

IPS

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

Full HD

With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

Media player (in pivot not supported)

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

Description

Set in a slim bezel, the iiyama LH3241S is a professional digital signage display offering 24/7 operating time in landscape and portrait orientation. This Full HD and fanless IPS display guarantees great viewing from all angles, high brightness and exceptional colour clarity. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.

Specifications

Display
Panel type	IPS
Display number of colours	16.7 million colours
Touchscreen	No
Active display area (W x H)	698.4 x 392.9 mm
Display technology	LED
Display diagonal	80 cm (31.5")
Display resolution	1920 x 1080 pixels
Display brightness	350 cd/m²
HD type	Full HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.364 x 0.364 mm
Display diagonal (metric)	80 cm
Native aspect ratio	16:9
Horizontal scan range	30 - 80 kHz
Native refresh rate	60 Hz
Haze rate	1%
Ports & interfaces
Remote (IR) output	1
Remote (IR) input	1
USB port	Yes
Number of speaker outputs	1
RS-232C	Yes
Wi-Fi	No
Ethernet LAN	Yes
HDMI ports quantity	3
DVI port	No
VGA (D-Sub) input ports	1
Audio (L/R) in	1
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	1
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Kiosk design
Placement supported	Indoor

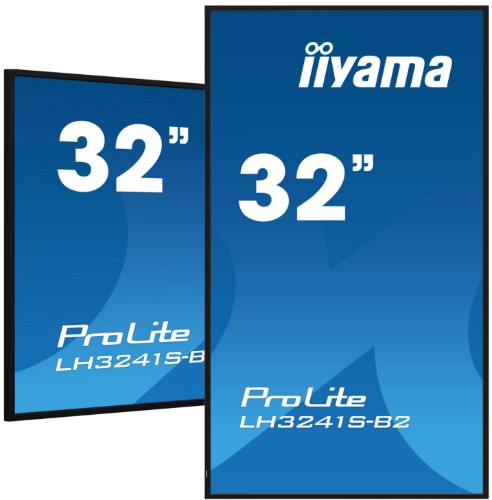

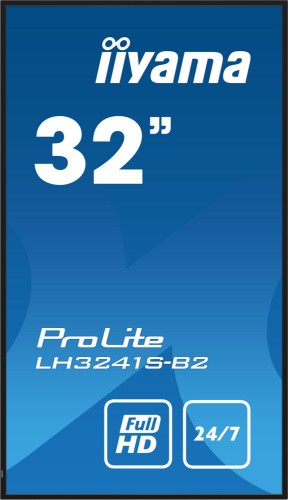

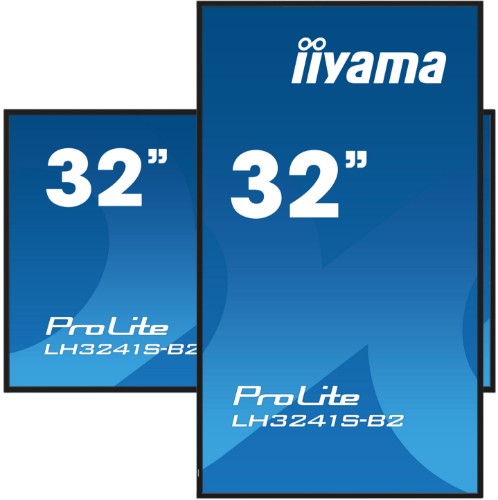

Orientation	Horizontal/Vertical
Bezel width (top)	1.4 cm
Bezel width (side)	1.48 cm
Bezel width (bottom)	7.5 cm
Product colour	Black
Panel mounting interface	200 x 200 mm
VESA mounting	Yes
Bezel colour	Black
Performance
Purpose	Commercial
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese, Russian
Number of OSD languages	8
HDCP	Yes
HDCP version	2.2
Wi-Fi	No
Power
Power consumption (off)	0.3 W
Power consumption (typical)	39 W
Power consumption (standby)	0.4 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	39 kWh
Computer system
Computer system	No
Built-in processor	No
Weight & dimensions
Display width	725.5 mm
Display depth	54 mm
Display height	422 mm
Display weight	5.1 kg
Packaging data
Package width	824 mm
Package depth	824 mm
Package height	554 mm
Quick start guide	Yes
Remote control included	Yes
Cables included	HDMI, Power, RS-232
Packaging content
Quick start guide	Yes
Remote control included	Yes
Cables included	HDMI, Power, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	-20 - 60%
Storage temperature (T-T)	-20 - 60 °C
Technical details
VESA mounting	Yes
Power supply type	Internal
Panel type	IPS
Network
Wi-Fi	No
Ethernet LAN	Yes
Other features
Power supply type	Internal
Panel type	IPS
Wi-Fi	No
Mean time between failures (MTBF)	50000 h
Display technology	LED
Bezel width (top)	1.4 cm
Bezel width (side)	1.48 cm
Bezel width (bottom)	7.5 cm
Quick start guide	Yes
Energy efficiency scale	A to G
