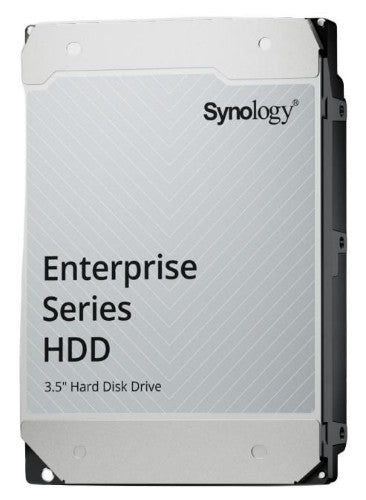

Synology HAS5310-20T internal hard drive 20 TB 7200 RPM 512 MB 3.5" SAS

20TB 3.5" SAS 12Gb/s

Description

Synology HAS5300 is designed to meet the capacity, efficiency, and reliability needs of modern enterprise deployments. Built to handle workloads up to 550 TB per year, it empowers host systems to serve large pools of concurrent clients. With a 2.5 million-hour MTBF1 and backed by Synology's 5-year limited warranty2, HAS5300 meets the highest standards of dependability.

Specifications

Certificates
Certification	CE, RCM, BSMI, KC, EAC, UKCA, UL, TUV, ICES, RoHS, Morocco Mark
Hard drive
Component for	Server/workstation
HDD interface transfer rate	12 Gbit/s
Mean time between failures (MTBF)	2500000 h
Certification	CE, RCM, BSMI, KC, EAC, UKCA, UL, TUV, ICES, RoHS, Morocco Mark
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	20 TB
Features
Type	HDD
Component for	Server/workstation
HDD interface transfer rate	12 Gbit/s
Interface	SAS
Mean time between failures (MTBF)	2500000 h
Certification	CE, RCM, BSMI, KC, EAC, UKCA, UL, TUV, ICES, RoHS, Morocco Mark
HDD speed	7200 RPM
HDD size	3.5"
HDD capacity	20 TB
Storage drive buffer size	512 MB
Power
Power consumption (typical)	8.46 W
Power consumption (idle)	4.74 W
Operating voltage	12 V
Operational conditions
Operating temperature (T-T)	5 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-304.8 - 3048 m
Non-operating altitude	-304.8 - 12192 m
Technical details
Interface	SAS
Mean time between failures (MTBF)	2500000 h
Weight & dimensions
Width	101.8 mm
Weight	720 g
Height	26.1 mm
Depth	147 mm
Other features
Interface	SAS
Certification	CE, RCM, BSMI, KC, EAC, UKCA, UL, TUV, ICES, RoHS, Morocco Mark
